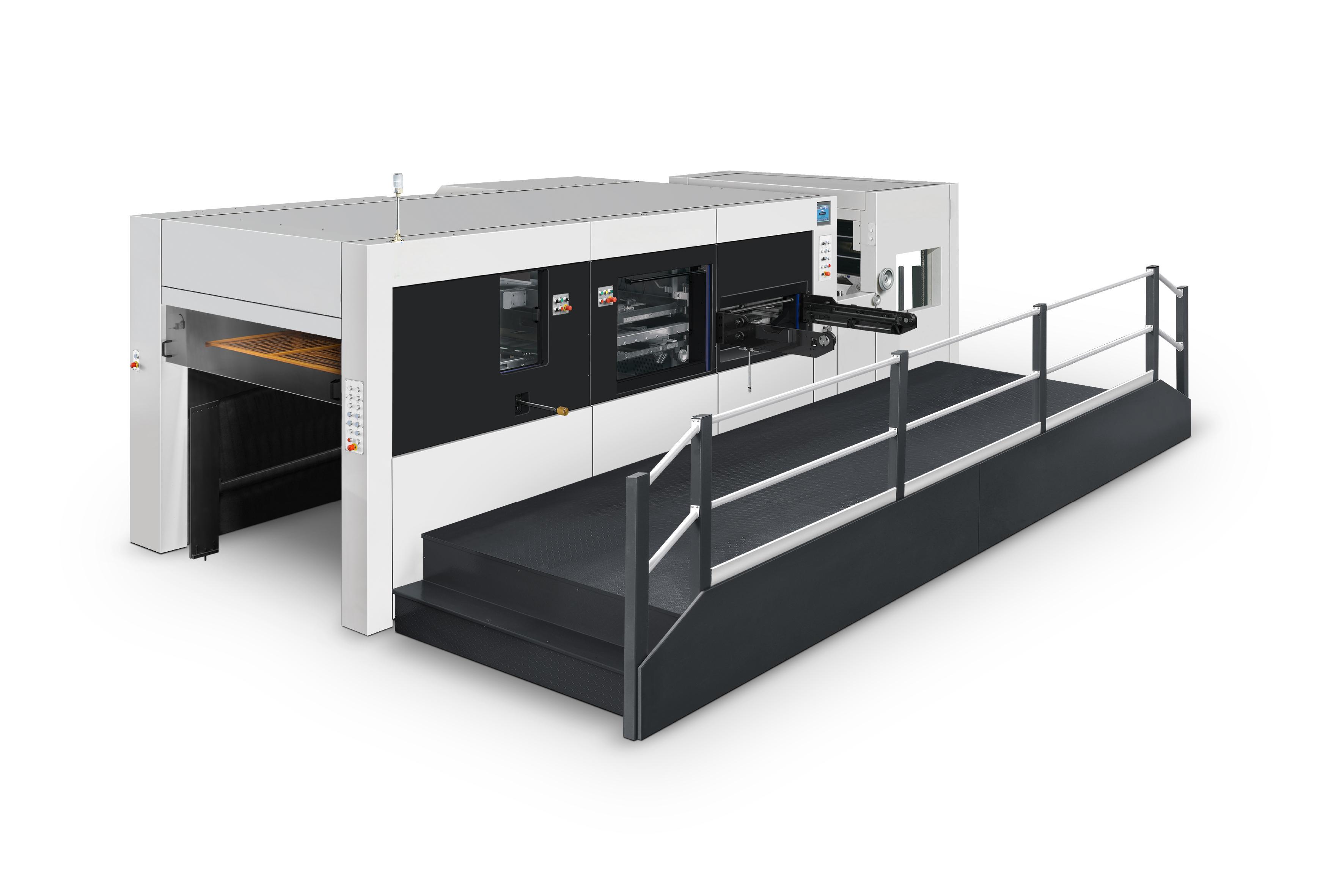

Rustproof Carton Box Punching Machine Stable Operation Multiple Function
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | FM-HK1500EC/1300EC |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Semi-Automatic | Material | Steel |
|---|---|---|---|
| Keyword | Printer Slitter Die Cutter Machine | Voltage | 220V |
| Thickness Range | 3mm-10mm | Packaging Type | Bags, Cartons, Case |
| Dimension | 2000mm X 1500mm X 1800mm | Color | Blue |
| Max Cutting Size | 1200mm X 800mm | Driven Type | Electric |
| Highlight | Rustproof Carton Box Punching Machine,Stable Carton Box Punching Machine,Multiple Function Industrial Die Cutting Machine |
||
Product Description
Automatic Die Cutting Machine With Stripping
Technical Specifications
| Parameter | FM-HK1500EC | FM-HK1300EC |
|---|---|---|
| Maximum Sheet Size | 1500×1100mm | 1290×940mm |
| Minimum Sheet Size | 480×480mm | 480×480mm |
| Maximum Cutting Size | 1480×1080mm | 1280×920mm |
| Minimum Width of Double Cuts | 12mm | 12mm |
| Minimum Gripper Margin | 6-12mm | 6-12mm |
| Cutting Rule Height | 23.8mm | 23.8mm |
| Inner Chase Size | 1520×1130mm | 1310×970mm |
| Stock Range | E, B, C, A and AB corrugated paper | |
| Max. Working Speed | 6000 sheets/hour | |
| Max. Die Cutting Force | 400 Tons | |
| Mobile Lower Platen Adjusting Range | ±1.5mm | |
| Max. Delivery Pile Height (Curtain type) | 1600mm (With wooden pallet) | |
| Machine Dimensions (Curtain type) | 10490×5240×2800mm (L×W×H) | 9880×5240×2800mm (L×W×H) |
| Max. Delivery Pile Height (Stacking type) | Stacking type paper receiving (optional) | |
| Machine Dimensions (Stacking type) | 11782×5240×2397mm (L×W×H) | 10630×5240×2397mm (L×W×H) |
| Net Weight of Machine | 23 Tons | 20 Tons |
| Main Motor Wattage | 15kW | 11kW |
| Full Load Wattage | 30kW | 25kW |
| Air Requirement | Pressure: 0.6~0.7Mpa, Flow: ≥0.37m³/min | |
