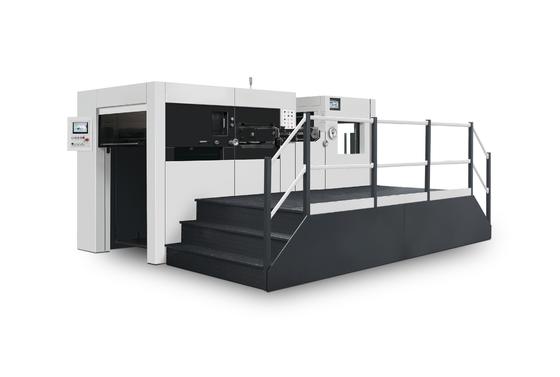

Fully Automatic Corrugated Paper Cutting Machine 7500s/H Corrosion Resistance
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | FM-HK1050 |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Die Cutting Machine | Driven Type | Electric |
|---|---|---|---|
| Keyword | Die Cutting Machine | Condition | New |
| Application | Packaging | Automatic Grade | Automatic |
| Power Source | Electric | Packaging Type | Bags, Cartons, Case |
| Function | Cutting | ||
| Highlight | Fully Automatic Corrugated Paper Cutting Machine,7500s/H Corrugated Paper Cutting Machine,7500s/H Carton Box Punching Machine |
||
Product Description
Automatic Die Cutting Machine
Product Specifications
| Attribute | Value |
|---|---|
| Type | Die Cutting Machine |
| Driven Type | Electric |
| Condition | New |
| Application | Packaging |
| Automatic Grade | Automatic |
| Power Source | Electric |
| Packaging Type | Bags, Cartons, Case |
| Function | Cutting |
Technical Parameters
| Model | FM-HK1050 |
|---|---|
| Maximum Sheet Size | 1050×750mm |
| Minimum Sheet Size | 400×360mm |
| Maximum Cutting Size | 1040×720mm |
| Minimum Gripper Margin | 9-17mm |
| Inner Chase Size | 1140×755mm |
| Stock Range | Paper: from 80 to 2000g/m2, 0.1~2mm, corrugated board: up to 4mm |
| Die Cutting Accuracy | ≤±0.075mm |
| Max. Die Cutting Force | 300T |
| Max. Working Speed | 7500s/h |
| Max. Feeder Pile Height | 1600mm (With wooden pallet) |
| Max. Delivery Pile Height | 1400mm (With wooden pallet) |
| Machine Dimensions | 6119×4257×2349mm (L×W×H) (L: paper prepared track included, W: platform included) |
| Net Weight of Machine | 16T |
| Main Motor Wattage | 11kw |
| Full Load Wattage | 16kw |
| Air Requirement | Pressure: 0.6~0.7Mpa, Flow: ≥0.37m3/min |
Key Features
- High-precision die cutting with accuracy ≤±0.075mm
- Automatic operation for efficient packaging production
- Handles wide range of materials from paper to corrugated board
- Robust construction with 300T maximum cutting force
- High-speed operation up to 7500 sheets per hour
