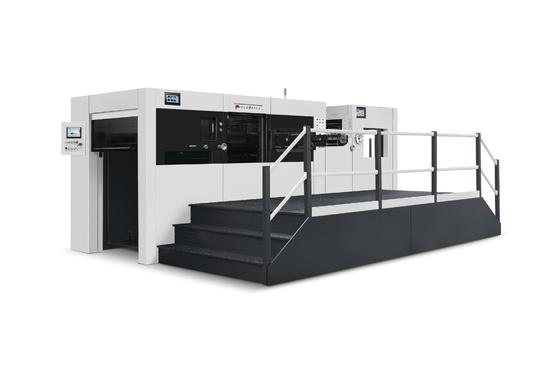

Powerful Automatic Cardboard Box Die Cutting Machine 1040×720mm High Precision
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | FM-HK1050ACER |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Semi-Automatic | Port | XINGANG CHINA |
|---|---|---|---|
| Packaging Type | Bags, Cartons, Case | Computerized | No |
| Condition | New | ||
| Highlight | Powerful Automatic Cardboard Box Die Cutting Machine,1040×720mm Cardboard Box Die Cutting Machine,Powerful Carton Box Die Cutting Machine |
||
Product Description
Automatic Die Cutting Machine with Heating
Product Specifications
| Attribute | Value |
|---|---|
| Type | Semi-Automatic |
| Port | XINGANG CHINA |
| Packaging Type | Bags, Cartons, Case |
| Computerized | No |
| Condition | New |
Technical Parameters
| Model | FM-HK1050ACER |
|---|---|
| Maximum Sheet Size | 1050×750mm |
| Minimum Sheet Size | 400×360mm |
| Maximum Cutting Size | 1040×720mm |
| Max. Embossing Area | 1040×720mm |
| Minimum Gripper Margin | 9-17mm |
| Inner Chase Size | 1140×755mm |
| Stock Range | Paper: from 80 to 2000g/m2, 0.1~2mm, corrugated board: up to 4mm |
| Die Cutting Accuracy | ≤±0.075mm |
| Embossing Accuracy | ≤±0.075mm |
| Max.die Cutting Force | 600T |
| Max.working Speed | 7500s/h (Die cutting)；7500s/h (Hot pressing) |
| Max. Feeder Pile Height | 1600mm(With wooden pallet) |
| Max. Delivery Pile Height | 1400mm(With wooden pallet) |
| Electric-heated System | 20 temperature ranges, 40-180℃ is adjustable |
| Machine Dimensions | 7072×4317×2349mm(L×W×H) (L: paper prepared track included, W: platform included) |
| Net Weight of Machine | 19.5T |
| Main Motor Wattage | 15w |
| Full Load Wattage | 35kw |
| Air Requirement | Pressure: 0.6~0.7Mpa, Flow: ≥0.37m3/min |
Key Features
- High-precision die cutting with accuracy ≤±0.075mm
- Adjustable electric-heated system (40-180℃)
- Powerful 600T die cutting force
- High working speed up to 7500 sheets/hour
- Versatile stock handling capability
