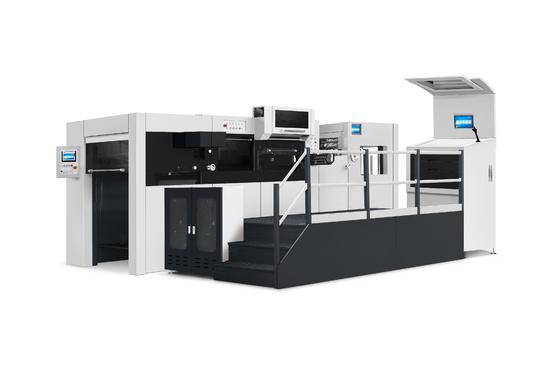

7500s/H Corrugated Die Cutting Machine 1040x720mm 56kw Industrial Die Cutting Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | 7500s/H Corrugated Die Cutting Machine,1040x720mm Corrugated Die Cutting Machine,56kw Industrial Die Cutting Machine |
||
|---|---|---|---|
Product Description
Automatic Hot Foil Stamping & Die Cutting Machine
Technical Specifications
| Model | FM-HK1050AT |
|---|---|
| Maximum Sheet Size | 1050×750mm |
| Minimum Sheet Size | 400×360mm |
| Maximum Cutting Size | 1040×720mm |
| Max. Hot Stamping Size | 1040×720mm |
| Max. Embossing Area | 1040×720mm |
| Minimum Gripper Margin | 9-17mm |
| Inner Chase Size | 1140×755mm |
| Stock Range | Paper: from 80 to 2000g/m2, 0.1~2mm, corrugated board: up to 4mm |
| Die Cutting Accuracy | ≤±0.075mm |
| Common Stamping Accuracy | ≤±0.075mm |
| Hologram Positioning Stamping Accuracy | ≤±0.075mm (optional) |
| Embossing Accuracy | ≤±0.075mm |
| Max. Die Cutting Force | 600T |
| Max. Working Speed | 7500s/h (Die cutting); 7500s/h (Hot stamping); 7500s/h (Hot pressing) |
| Max. Feeder Pile Height | 1600mm (With wooden pallet) |
| Max. Delivery Pile Height | 1400mm (With wooden pallet) |
| Max. Gold Foil Diameter | 250mm (vertical) |
| Electric-heated System | 20 temperature ranges, 40-180℃ adjustable |
| Foil Width | 20-1020mm |
| Machine Dimensions | 6658×4317×2871mm (L×W×H) (L: paper prepared track included, W: platform included) |
| Net Weight of Machine | 20T |
| Main Motor Wattage | 15kw |
| Full Load Wattage | 56kw |
| Air Requirement | Pressure: 0.6~0.7Mpa, Flow: ≥0.37m3/min |
