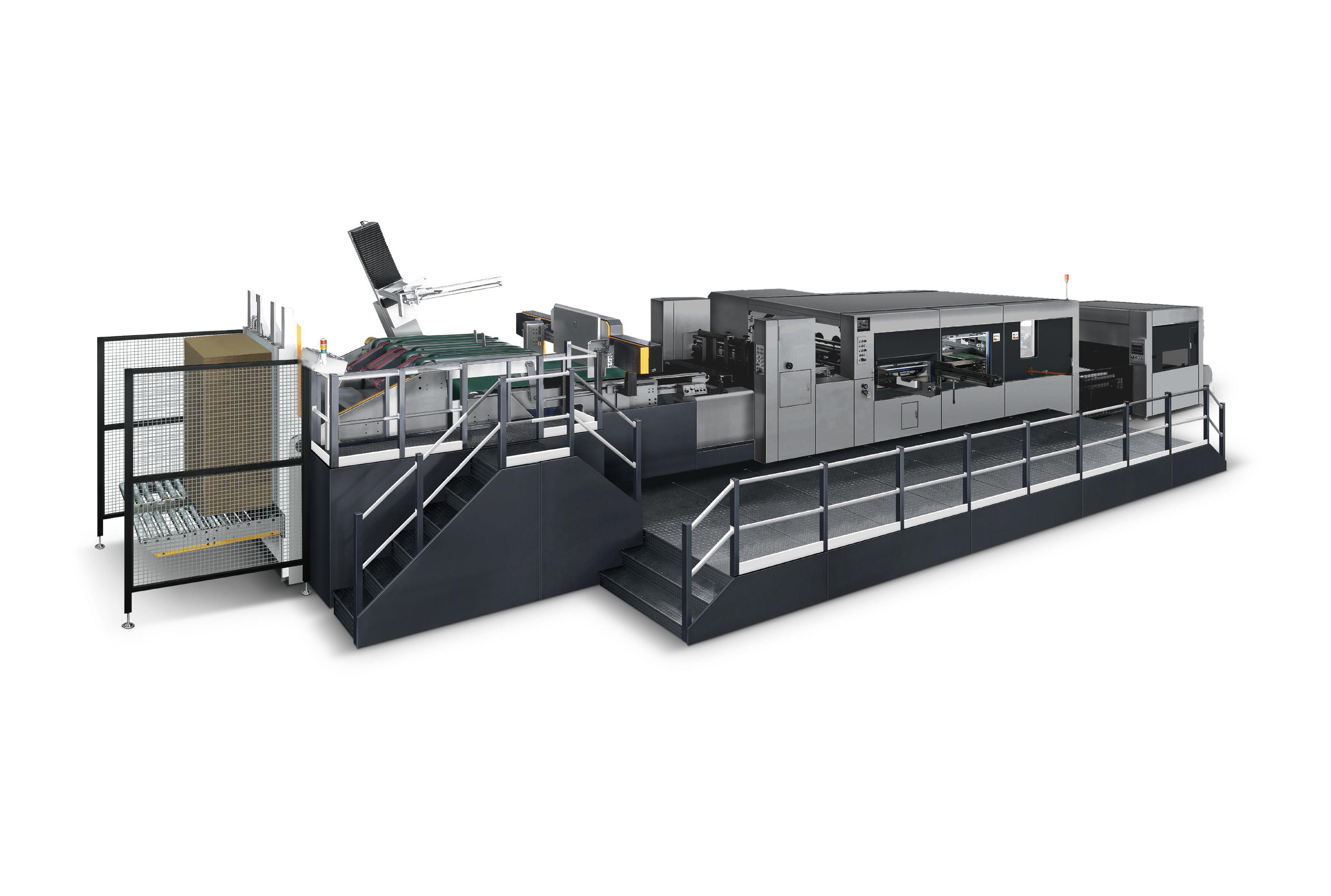

Customizable Automatic Die Cutting Machine PLC Control 380V 50HZ 3PH 400ton Pressure
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | FM-HK 1300FC/1500FC |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | 400ton Pressure Automatic Die Cutting Machine,PLC control Automatic Die Cutting Machine,Customizable Corrugated Box Punching Machine |
||
|---|---|---|---|
Product Description
Automatic Die Cutting Machine Linkage Production Line
System Overview
Our Converting System Integration combines multiple devices into a streamlined production line to minimize manual labor while optimizing product flow and increasing efficiency. This system represents the most practical and stable solution available in today's global market.
Key Features
- Integrated automatic prefeeder enhances feeding efficiency and reduces operator workload
- Built-in automatic breaker separates blanks from multiple ups, significantly reducing labor costs
- Fully customizable to meet specific client requirements, product techniques, and processes
- Ideal solution for corrugated board packaging industry applications
Technical Specifications
Paper Feeder Parameters
| Model | FM-HK1500FC | FM-HK1300FC |
|---|---|---|
| Sheet size | Max. 1500×1100mm Min. 550×450mm |
Max. 1300×940mm Min. 550×450mm |
| Corrugated board thickness | Max. 8.5mm, Min. 1mm | Max. 8.5mm, Min. 1mm |
| Batch height | Max. 1800mm | Max. 1800mm |
| Pile weight | 1200kg | 1200kg |
| Machine weight | 3800kg | 3600kg |
Die Cutting Machine Parameters
| Model | FM-HK1500FC | FM-HK1300FC |
|---|---|---|
| Max. sheet size | 1500×1100mm | 1290×940mm |
| Min. sheet size | 480×480mm | 480×480mm |
| Max. die cutting size | 1480×1080mm | 1280×920mm |
| Inner chase size | 1520×1130mm | 1310×970mm |
| Stock range | E, B, C, A and AB flute corrugated paper (1-8.5mm thickness) | E, B, C, A and AB flute corrugated paper (1-8.5mm thickness) |
| Min. gripper waste | 12mm | 12mm |
| Min. gripper margin | 6-12mm | 6-12mm |
| Cutting rule height | 23.8mm | 23.8mm |
| Max. die cutting speed | 6000s/h | 6000s/h |
| Max. die cutting pressure | 400ton | 400ton |
| Total power required | 32kw | 27kw |
| Electrical power | 380V, 50HZ, 3PH | 380V, 50HZ, 3PH |
| Mobile lower platen adjusting range | ±1.5mm | ±1.5mm |
| Machine dimension | 11800×5000×2400mm | 10630×4820×2400mm |
| Machine weight | 25T | 22T |
Sharding Machine Parameters
| Model | FM-HK1500FC | FM-HK1300FC |
|---|---|---|
| Sheet size | Max. 1500mm, Min. 550mm | Max. 1300mm, Min. 550mm |
| Min. batch dimension in machine direction | 200mm | 200mm |
| Max. batch thickness | 300mm | 300mm |
| Min. batch thickness | 20mm | 20mm |
| Batch passage height from the floor | 900mm (adjustable) | 900mm (adjustable) |
| Control system | Full PLC control | |
