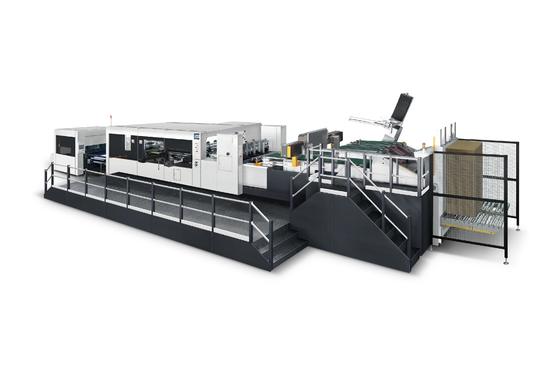

6000s/H Corrugated Die Cutting Machine 1800mm Height Industrial Die Cutting Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | FM-HK 1300FC/1500FC |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | Die-cutting Machine,Other,Paper Cutting Machine,General,corrugated Pizza Box Making Machine/printing Machine |
|---|---|---|---|
| After-sales Service Provided | Engineers Available To Service Machinery Overseas,Field Installation,Free Spare Parts,Online Support,commissioning And Training | Computerized | Yes,No |
| Automatic Grade | Semi-Automatic,Automatic | Application | Commodity,Machinery & Hardware,Food,Apparel,Textiles |
| Product Name | Full Automatic Cross Paper Cutting Machine A4,Flat Press Creasing Die Cutting Machine ML203,Carton Small Pneumatic Stripping Machine/Paper Simple Stripper Machine,corrugated Box Die Cut Machine,cnc Corrugated Paper Cardboard Box Die Cutting Machine | Driven Type | Electric,Pneumatic |
| Packaging Type | Cartons,Film,Case,Bags,Bottles | Function | Cardboard Automatic Die-cutting Machine,die Cutting And Creasing,For Waste Paper Stripping,Flat Press Creasing Die Cutting |
| Highlight | 6000s/H Corrugated Die Cutting Machine,1800mm Height Corrugated Die Cutting Machine,6000s/H Industrial Die Cutting Machine |
||
Product Description
Automatic Die Cutting Machine Linkage Production Line
Product Attributes
Condition: New
Type: Die-cutting Machine
Type: Paper Cutting Machine
Type: Corrugated pizza box making machine
After-sales service: Engineers available overseas
After-sales service: Field installation
After-sales service: Free spare parts
Computerized: Yes/No
Automatic grade: Semi-Automatic/Automatic
Application: Commodity, Machinery & Hardware, Food
Driven type: Electric/Pneumatic
Packaging type: Cartons, Film, Case, Bags
Function: Cardboard Automatic Die-cutting
Product Features
- Converting System Integration combines devices in line to reduce manual work and optimize production flow
- Most popular and practical production mode in global market with higher stability
- Automatic prefeeder linked with diecutter feeder increases efficiency and reduces operator workload
- Automatic breaker separates blanks from multiple ups, saving labor costs
- Customizable system to meet specific client demands and production processes
- Emerging as the new standard in corrugated board packaging industry
Technical Specifications
Paper Feeder Parameters
| Parameter | FM-HK1500FC | FM-HK1300FC |
|---|---|---|
| Sheet size | Max. 1500×1100mm Min. 550×450mm |
Max. 1300×940mm Min. 550×450mm |
| Corrugated board | Max. 8.5mm, Min. 1mm | Max. 8.5mm, Min. 1mm |
| Batch height | Max. 1800mm | Max. 1800mm |
| Pile weight | 1200kg | 1200kg |
| Machine weight | 3800kg | 3600kg |
Die Cutting Machine Parameters
| Parameter | FM-HK1500FC | FM-HK1300FC |
|---|---|---|
| Max. sheet size | 1500×1100mm | 1290×940mm |
| Min. sheet size | 480×480mm | 480×480mm |
| Max. die cutting size | 1480×1080mm | 1280×920mm |
| Inner chase size | 1520×1130mm | 1310×970mm |
| Stock range | E, B, C, A and AB flute corrugated paper (1-8.5mm thickness) | E, B, C, A and AB flute corrugated paper (1-8.5mm thickness) |
| Min. gripper waste | 12mm | 12mm |
| Min. gripper margin | 6-12mm | 6-12mm |
| Cutting rule height | 23.8mm | 23.8mm |
| Max. die cutting speed | 6000s/h | 6000s/h |
| Max. die cutting pressure | 400ton | 400ton |
| Total power required | 32kw | 27kw |
| Electrical power | 380V, 50HZ, 3PH | 380V, 50HZ, 3PH |
| Mobile lower platen adjusting range | ±1.5mm | ±1.5mm |
| Machine dimension | 11800×5000×2400mm | 10630×4820×2400mm |
| Machine weight | 25T | 22T |
Sharding Machine Parameters
| Parameter | FM-HK1500FC | FM-HK1300FC |
|---|---|---|
| Sheet size | Max. 1500mm, Min. 550mm | Max. 1300mm, Min. 550mm |
| Min. Batch dimension in machine direction | 200mm | 200mm |
| Max. Batch thickness | 300mm | 300mm |
| Min. Batch thickness | 20mm | 20mm |
| Batch passage height from the floor | 900mm (adjustable) | 900mm (adjustable) |
| Full PLC control | Yes | |
