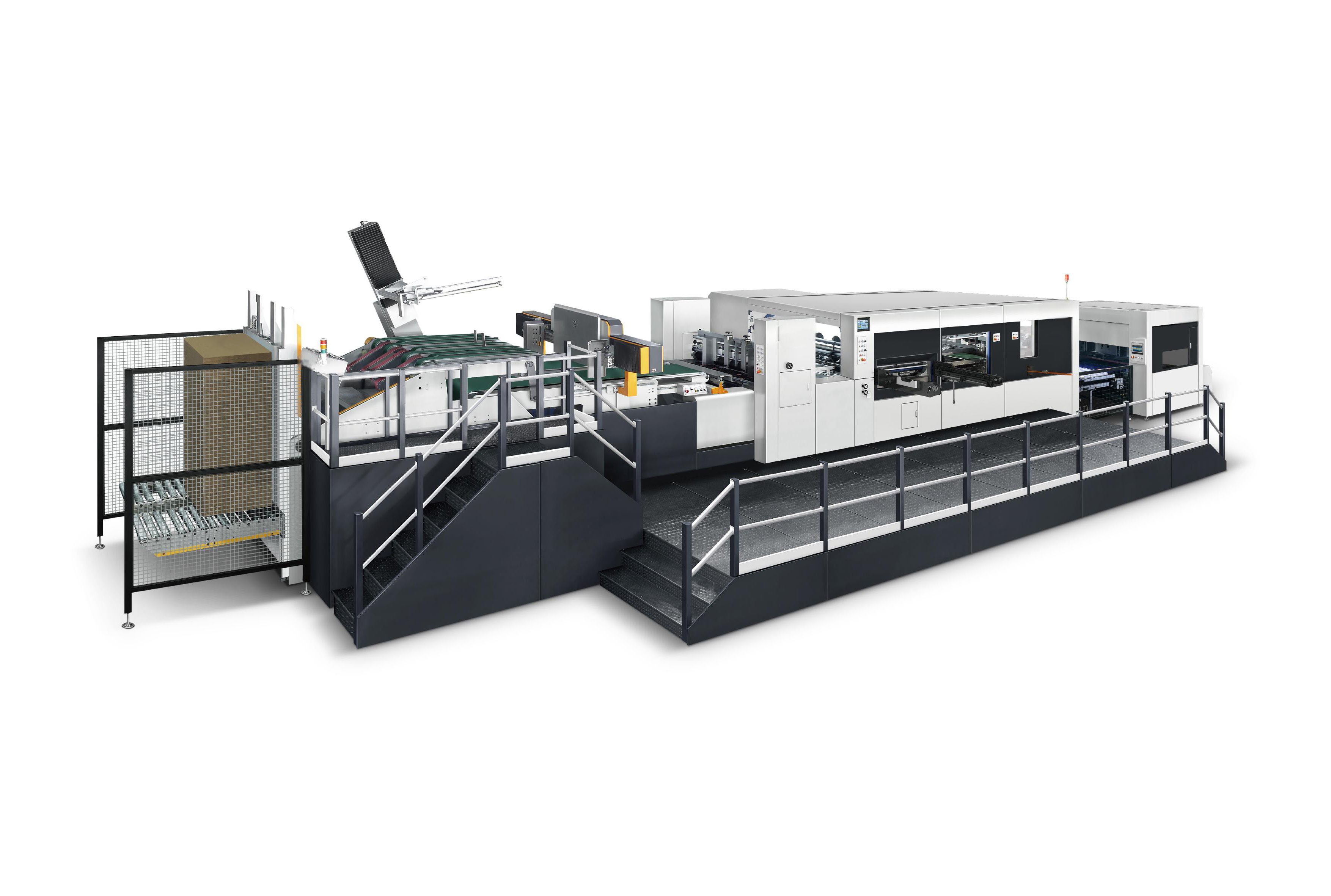

480×480mm Automatic Flatbed Die Cutting Machine PLC Control Customizable
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | FM-HK 1300FC/1500FC |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Cutting Pressure | 300 Tons | Min Sheet Size | 400mm X 300mm |
|---|---|---|---|
| Suitable For | Corrugated Boxes, Cartons, Trays, Etc. | Die Cutting Method | Rotary Die Cutting |
| Keyword | Printer Slitter Die Cutter Machine | Max Speed | 200 Sheets Per Minute |
| Voltage | 380V | Power | 4.0kw |
| Power Consumption | 15 KW | Type | Semi-Automatic |
| Computerized | No | Power Supply | 380V, 50Hz, 3-phase |
| Highlight | 480×480mm Automatic Flatbed Die Cutting Machine,PLC Control Automatic Flatbed Die Cutting Machine,Customizable Flat Bed Die Punching Machine |
||
Product Description
High-efficiency Automatic Die Cutting Production Line
Corrugated Box Die Cutting Machine Features
Our converting system integration combines multiple devices in line to minimize manual work while optimizing product flow within a single process. This system represents the most practical production mode in the global market, offering superior stability.
- Automatic prefeeder linked with the diecutter feeder to maximize feeding efficiency and reduce operator workload
- Integrated automatic breaker that separates blanks from multiple ups, significantly reducing labor costs
- Fully customizable system that adapts to specific client requirements and production processes
- Full PLC control standard on all models
Technical Specifications
Paper Feeder Specifications
| Model | FM-HK1500FC | FM-HK1300FC |
|---|---|---|
| Sheet size | Max. 1500×1100mm Min. 550×450mm |
Max. 1300×940mm Min. 550×450mm |
| Corrugated board thickness | Max. 8.5mm, Min. 1mm | |
| Batch height | Max. 1800mm | |
| Pile weight | 1200kg | |
| Machine weight | 3800kg | 3600kg |
Die Cutting Machine Specifications
| Model | FM-HK1500FC | FM-HK1300FC |
|---|---|---|
| Max. sheet size | 1500×1100mm | 1290×940mm |
| Min. sheet size | 480×480mm | |
| Max. die cutting size | 1480×1080mm | 1280×920mm |
| Stock range | E, B, C, A and AB flute corrugated paper (1-8.5mm thickness) | |
| Max. die cutting speed | 6000s/h | |
| Max. die cutting pressure | 400ton | |
| Total power required | 32kw | 27kw |
Sharding Machine Specifications
| Model | FM-HK1500FC | FM-HK1300FC |
|---|---|---|
| Sheet size | Max. 1500mm, Min. 550mm | Max. 1300mm, Min. 550mm |
| Max. batch thickness | 300mm | |
| Batch passage height from the floor | 900mm (adjustable) | |
