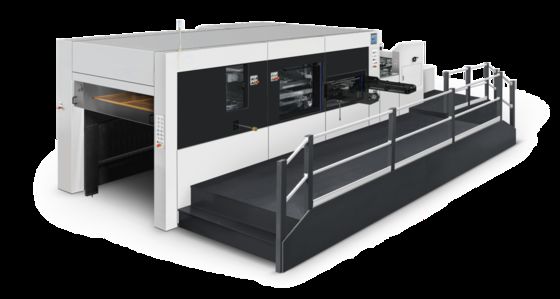

30kw Corrugated Die Cutting Machine Industrial Die Cutting Machine For Down Feeder Processing And Production

  • 30kw Corrugated Die Cutting Machine Industrial Die Cutting Machine For Down Feeder Processing And Production
Place of Origin CHINA
Brand Name FINTEECH
Certification CE
Model Number FM-HK1500EFC
Minimum Order Quantity 1set
Packaging Details wooden case
Delivery Time 20-30 days
Payment Terms TT/LC
Supply Ability 10 sets per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Type Die-cutting Machine,Other,Paper Cutting Machine,General,corrugated Pizza Box Making Machine/printing Machine
After-sales Service Provided Engineers Available To Service Machinery Overseas,Field Installation,Free Spare Parts,Online Support,commissioning And Training Warranty 1 Year,one Year,12 Months,corrugated Box Die Cut Machine 1 Year,2 Years
Computerized Yes,No Application Commodity,Machinery & Hardware,Food,Apparel,Textiles
Product Name Full Automatic Cross Paper Cutting Machine A4,Flat Press Creasing Die Cutting Machine ML203,Carton Small Pneumatic Stripping Machine/Paper Simple Stripper Machine,corrugated Box Die Cut Machine,cnc Corrugated Paper Cardboard Box Die Cutting Machine Packaging Type Cartons,Film,Case,Bags,Bottles
Function Cardboard Automatic Die-cutting Machine,die Cutting And Creasing,For Waste Paper Stripping,Flat Press Creasing Die Cutting
Highlight

30kw Corrugated Die Cutting Machine

,

Down Feeder Corrugated Die Cutting Machine

,

Down Feeder Industrial Die Cutting Machine
Leave a Message
Product Description
High-Performance Corrugated Die Cutting Machine for Down Feeder Processing and Production
Product Specifications
Attribute Value
Condition New
Type Die-cutting Machine, Paper Cutting Machine, Corrugated Pizza Box Making Machine
After-sales Service Overseas engineer support, Field installation, Free spare parts, Online support, Commissioning and training
Warranty 1-2 Years
Applications Commodity, Machinery & Hardware, Food, Apparel, Textiles
Functions Cardboard Automatic Die-cutting, Die cutting and creasing, Waste paper stripping, Flat Press Creasing
Machine Details
Down Feeder System
  • High-precision down feeder with vacuum adsorption for scratch-free paperboard delivery
  • Pneumatic side push guide plates (right sides)
  • Electrically controlled paper feed roller
  • Precision double sheet detection device
  • Adjustable front block hook plate for cardboard bending
  • Non-stop paper feeding step adjustment
  • Fine adjustment for front/rear position of baffle
  • Left/right side positioning push gauges for accurate alignment
  • Germany Becker brand dual-purpose vacuum pump
Die-Cutting Section
  • Nodular cast iron main body with upper/lower moving platforms
  • Imported worm gear, worm and 40cr crankshaft
  • Die-cutting bottom plate and mould rotating device
  • Imported torque limit overload protector
  • PLC-controlled electric pressure regulation via touch screen
  • Anodized aluminum alloy gripper bar system with adjustable structure
  • Imported main drive chain and intermittent divider
  • Japan SMC air pressure detection with low pressure alarm
  • Centralized automatic oil supply system for all transmission parts
  • Gas storage tank for stable air pressure
Stripping Section (4-Side)
  • Three-frame stripping mechanism
  • Center-line quick positioning installation for efficient plate changes
Technical Parameters
Model FM-HK1500EFC
Maximum Sheet Size 1500×1100mm
Minimum Sheet Size 480×480mm
Maximum Cutting Size 1480×1080mm
Inner Chase Size 1510×1120mm
Maximum Cutting Pressure 400 Tons
Stock Range E,B,C,A and AB Flute corrugated paper 1-8.5mm
Maximum Speed 6000 s/h
Total Power Required 30kw (Main motor: 15kw)
Dimensions (L×W×H) 10490×5020×2850mm
Net Weight 29 Tons
Power Requirements 380V/50HZ/3PH
Air Requirements Pressure: 0.6-0.7Mpa, Flow rate: ≥0.37M³/min
