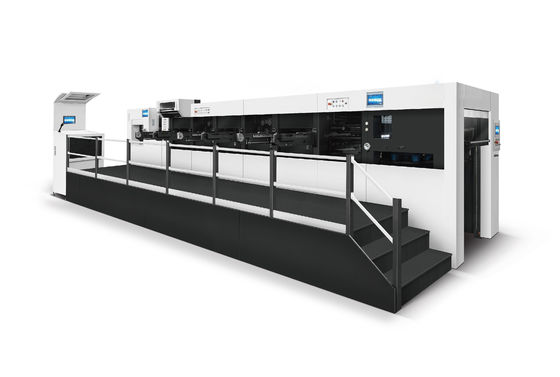

Full Auto Corrugated Die Cutting Machine Heat Resistance 0.6Mpa Hot Stamping Die Cutting Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | FM--HK3S1050TRMC |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | Die-cutting Machine,Other,Paper Cutting Machine,General,corrugated Pizza Box Making Machine/printing Machine |
|---|---|---|---|
| After-sales Service Provided | Engineers Available To Service Machinery Overseas,Field Installation,Free Spare Parts,Online Support,commissioning And Training | Computerized | Yes,No |
| Automatic Grade | Semi-Automatic,Automatic | Application | Commodity,Machinery & Hardware,Food,Apparel,Textiles |
| Driven Type | Electric,Pneumatic | Function | Cardboard Automatic Die-cutting Machine,die Cutting And Creasing,For Waste Paper Stripping,Flat Press Creasing Die Cutting |
| Highlight | Full Auto Corrugated Die Cutting Machine,Heat Resistance Corrugated Die Cutting Machine,0.6Mpa Hot Stamping Die Cutting Machine |
||
Product Description
TRIOPRESS Automatic Hot Stamping Die Cutting Machine
Product Overview
High-speed TRIOPRESS flatbed cutting machine designed for precision die cutting, hot stamping, and embossing applications across various industries.
Key Attributes
| Condition | New |
|---|---|
| Type | Die-cutting Machine, Paper Cutting Machine, Corrugated pizza box making machine/printing machine |
| After-sales service | Engineers available overseas, Field installation, Free spare parts, Online support, Commissioning and training |
| Automatic grade | Semi-Automatic, Automatic |
| Application | Commodity, Machinery & Hardware, Food, Apparel, Textiles |
| Driven type | Electric, Pneumatic |
| Function | Cardboard Automatic Die-cutting, Die cutting and creasing, Waste paper stripping, Flat Press Creasing Die Cutting |
Advanced Features
- Feeder Unit: Four pick up and four forward suck heads with angle adjustment for diverse materials
- Feeding Table: Synchronizing device for sheet positioning and hold-down device
- Hot Stamping: 20 individually adjustable heating zones for precise temperature control
- Foil Advancing: Three longitudinal and two lateral servo-driven shafts with programmable stepping
- Quick Change System: Center-line system and quick locking device reduces setup time
- Precision Plate Setting: 5mm hardened or 3.5mm+1.5mm sandwich stamping plates with ±0.9mm micro adjustment
- Waste Removal: Gripper edge stripping system with conveyor belt for efficient waste removal
- Automatic Delivery: Non-stop curtain for pile exchange with dual blowers for neat stacking
- Safety Systems: Torque limiter with sensitive limit protection and automatic lubrication
- Premium Components: Germany Becker oil-free blower and vacuum pump
Technical Specifications
| Model | FM-HK3S1050TRMC |
|---|---|
| Functions | Hot stamping + deep embossing + die cutting + stripping Deep embossing + die cutting + stripping |
| Sheet Size Range | 400×360mm to 1050×750mm |
| Working Area | 1040×720mm (cutting, stamping, embossing) |
| Material Range | Paper: 80-2000g/m² (0.1-2mm) Corrugated board: up to 4mm |
| Precision | ≤±0.075mm (die cutting, stamping, embossing) |
| Max. Die Cutting Force | Press1: 600T, Press2: 600T, Press3: 300T |
| Max. Working Speed | 6200s/h (all operations) |
| Heating System | 20 zones, 40-180℃ adjustable |
| Machine Dimensions | 10878×4557×2658mm (L×W×H) |
| Power Requirements | 99KW full load, Air: 0.6-0.7Mpa (≥1m³/min) |
