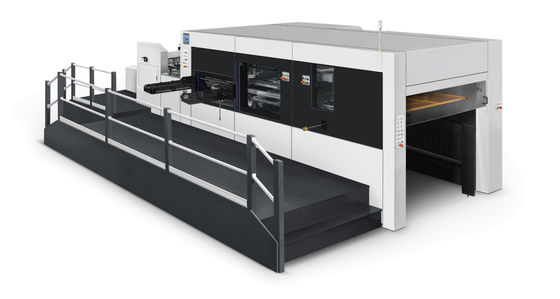

380V 50HZ Corrugated Die Cutting Machine 3PH 400 Ton Industrial Die Cutting Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | FM-HK1500EFC |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Computerized | No | Automatic Grade | Automatic |
|---|---|---|---|
| Max. Cutting Pressure | 300 Tons | Color | Blue |
| Keyword | Printer Slitter Die Cutter Machine | Packaging Type | Bags, Cartons, Case |
| Power Supply | 380V/50Hz | Application | Corrugated Cardboard, Paperboard, Paper, Etc. |
| Material | Steel | Type | Semi-Automatic |
| Weight | 8 Tons | Min. Sheet Size | 400mm X 300mm |
| Max. Cutting Speed | 150 Sheets/min | Model | UC-DCM-15 |
| Highlight | 380V 50HZ Corrugated Die Cutting Machine,3PH Corrugated Die Cutting Machine,3PH Industrial Die Cutting Machine |
||
Product Description
High-speed 400-ton Die Cutting Machine
Down Feeder System
- High-precision down feeder delivers paper with vacuum adsorption to prevent scratching printed surfaces
- Pneumatic side push guide plates (right sides)
- Electrically controlled paper feed roller
- Precision paper pressing disc and front stop gauge with double sheet detection
- Adjustable front block hook plate for cardboard bending compensation
- Non-stop paper feeding step adjustment device
- Fine adjustment for front/rear baffle positioning based on gripper margin
- Left/right side positioning push gauges for accurate cardboard alignment
- Germany Becker brand dual-purpose vacuum pump
Die-Cutting Section
- Nodular cast iron construction with upper and lower moving platforms
- Imported worm gear, worm, and 40Cr crankshaft
- Rotating die-cutting plate and mold system
- Imported torque limit overload protector
- Electric pressure regulation via PLC touch screen controls
- Anodized aluminum alloy gripper bars with adjustable positioning
- Imported main drive chain and intermittent divider
- Pneumatic clutch brake system
- Japan SMC air pressure monitoring with low-pressure alarm
- Central positioning system for fast, accurate plate changes
- Japanese SMC air regulators for secure plate locking
- Siemens main motor drive
- Centralized automatic lubrication system
- Integrated air storage tank for stable pressure
Stripping Section (4-side stripping)
- Three-frame stripping mechanism
- Center-line quick positioning for efficient stripping board installation
Technical Specifications
| Model | FM-HK1500EFC |
|---|---|
| Maximum sheet size | 1500×1100mm |
| Minimum sheet size | 480×480mm |
| Maximum cutting size | 1480×1080mm |
| Inner chase size | 1510×1120mm |
| Maximum cutting pressure | 400 Tons |
| Stock range | E, B, C, A and AB Flute corrugated paper 1-8.5mm |
| Maximum speed | 6000 s/h |
| Height of cutting rule | 23.8mm |
| Total power required | 30kw |
| Main motor wattage | 15kw |
| Max. delivery pile height | 1600mm (including wooden pallet) |
| Dimensions (L×W×H) | 10490mm×5020mm×2850mm |
| Net weight | 29 Tons |
| Gripper margin | 6-12mm |
| Min. gripper waste | 10-18mm |
| Electric power | 380V/50HZ/3PH |
| Mobile lower platen adjusting range | ±1.5mm |
| Air requirements | Pressure: 0.6-0.7Mpa, Flow rate: ≥0.37M³/min (user supplied) |
