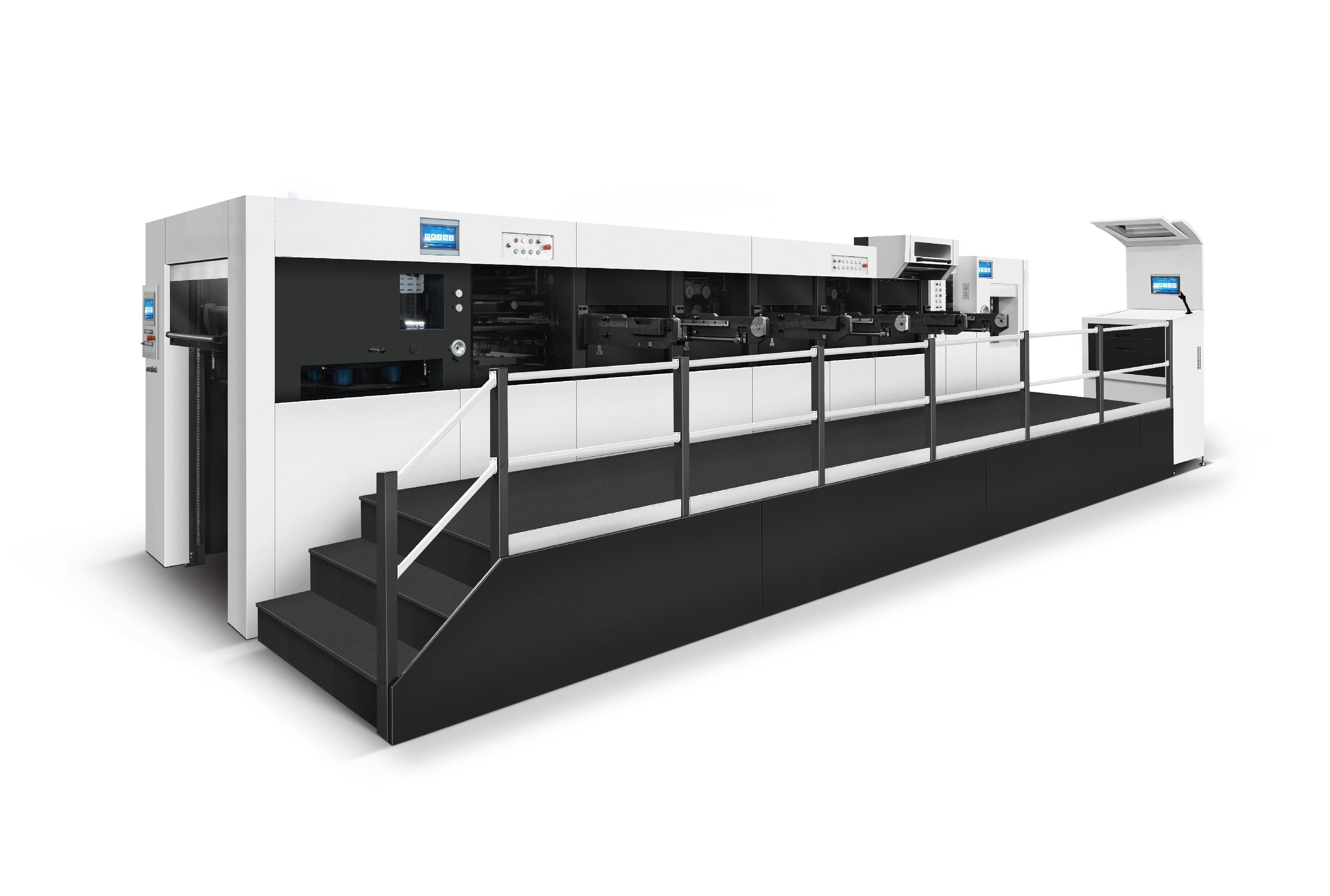

High Speed Commodity Hot Stamping Die Cutting Machine With Stripping Heating System
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | FM--HK3S1050TRMC |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Type | Die-cutting Machine,Other,Paper Cutting Machine,General,corrugated Pizza Box Making Machine/printing Machine |
|---|---|---|---|
| After-sales Service Provided | Engineers Available To Service Machinery Overseas,Field Installation,Free Spare Parts,Online Support,commissioning And Training | Computerized | Yes,No |
| Automatic Grade | Semi-Automatic,Automatic | Application | Commodity,Machinery & Hardware,Food,Apparel,Textiles |
| Driven Type | Electric,Pneumatic | Function | Cardboard Automatic Die-cutting Machine,die Cutting And Creasing,For Waste Paper Stripping,Flat Press Creasing Die Cutting |
| Highlight | High Speed Hot Stamping Die Cutting Machine,Stripping Hot Stamping Die Cutting Machine,Commodity Automatic Hot Stamping Machine |
||
Product Description
TRIOPRESS Automatic High Speed Hot Stamping Die Cutting Machine with Stripping Heating System
Product Attributes
| Attribute | Value |
|---|---|
| Condition | New |
| Type | Die-cutting Machine, Other, Paper Cutting Machine, General, corrugated pizza box making machine/printing machine |
| After-sales service provided | Engineers available to service machinery overseas, Field installation, Free spare parts, Online support, commissioning and training |
| Computerized | Yes, No |
| Automatic grade | Semi-Automatic, Automatic |
| Application | Commodity, Machinery & Hardware, Food, Apparel, Textiles |
| Driven type | Electric, Pneumatic |
| Function | Cardboard Automatic Die-cutting Machine, die cutting and creasing, For waste paper stripping, Flat Press Creasing Die Cutting |
Product Features
Feeder Unit
- Four pick up and four forward suck heads with angle adjustment to handle different kinds of materials
Feeding Table
- Synchronizing device to adjust the sheet positioning to the front lay by hand during production
- Sheet hold-down device (guiding the sheets to the front lays)
Hot Stamping Section
- Heating base with 20 heating zones, each temperature adjustable individually for efficient and accurate temperature control
Foil Advancing Unit
- Three sets of longitudinal foil advancing shafts and two sets of lateral foil advancing shafts driven by servo motors, individually programmable for short and long foil stepping
Mould Quick Locking Device
- Adopt Center-line system and quick locking device to save make ready time
Plate Setting
- 5mm hardened stamping plate or 3.5mm + 1.5mm sandwich stamping plate on top of 15mm precision ground supporting base plate with +/-0.9mm micro adjustment in both running and cross direction for quick set up and easy make ready
Stripping Unit
- Adopt center line system
- Upper and lower stripping tool mounting frame can be pulled out for job set up and make ready
Gripper Edge Waste Removal Device
- Gripper edge stripping and removing system with conveyor belt to remove the gripper edge waste sideways to the drive side
Delivery Unit
- Automatic delivery with non-stop curtain that moves into the delivery to catch arriving sheets during pile exchange
- Two blowers for paper collection ensure neat collection of thin and thick papers
Torque Limiter
- Taiwan high precision intermittent segmentation ensures high positional precision for long time usage
- Taiwan torque limiter accurately protects against artificial operation accidents to guarantee people and machine safety with sensitive limit protection performance
Main Motor Lubrication System
- Taiwan made automatic oil pump cooling circulation system ensures main motor lubrication at high speed for extended periods
- Equipped with oil pressure gauge and oil pressure alarm device
Auto Lubrication System
- Concentrated auto lubrication system ensures optimal performance of driven parts
Vacuum Pump
- Germany Becker oil free blower and vacuum pump
Technical Specifications
| Model | FM-HK3S1050TRMC |
|---|---|
| Function | 1. Hot stamping + deep embossing + die cutting + stripping 2. Deep embossing + deep embossing + die cutting + stripping |
| Maximum Sheet Size | 1050×750mm |
| Minimum Sheet Size | 400×360mm |
| Maximum Cutting Size | 1040×720mm |
| Max. Hot Stamping Size | 1040×720mm |
| Max. Embossing Area | 1040×720mm |
| Minimum Gripper Margin | 9~17mm |
| Inner Chase Size | 1140×755mm |
| Stock Range | Paper: from 80 to 2000g/m2, 0.1~2mm, corrugated board: up to 4mm |
| Die Cutting Accuracy | ≤±0.075mm |
| Common Stamping Accuracy | ≤±0.075mm |
| Hologram Positioning Stamping Accuracy | ≤±0.075mm (optional) |
| Embossing Accuracy | ≤±0.075mm |
| Max. Die Cutting Force | Press1: 600T, Press2: 600T, Press3: 300T |
| Max. Working Speed | 6200s/h (Die cutting), 6200s/h (Hot stamping), 6200s/h (Hot pressing) |
| Max. Feeder Pile Height | 1600mm (With wooden pallet) |
| Max. Delivery Pile Height | 1400mm (With wooden pallet) |
| Max. Gold Foil Diameter | Ф250mm Longitudinal, Ф200mm Transversal |
| Electric-heated System | 20 temperature ranges, 40-180℃ adjustable |
| Foil Width | 20~1020mm |
| Press1 Foil Advance Shafts | 3 Longitudinal + 2 Transversal (optional) |
| Press2 | Equipped with electric heating system |
| Press3 | Die cutting + stripping |
| Machine Dimensions | 10878×4557×2658mm (L×W×H) (L: paper prepared track included, W: platform included) |
| Net Weight of Machine | 44T |
| Full Load Wattage | 99KW |
| Air Requirement | Pressure: 0.6~0.7Mpa, Flow: ≥1m3/min |
