Automatic Film Wrapping Machine PE Film Shrink Wrap Adjustable Speed for Corrugated Board Carton

  • Automatic Film Wrapping Machine PE Film Shrink Wrap Adjustable Speed for Corrugated Board Carton
  • Automatic Film Wrapping Machine PE Film Shrink Wrap Adjustable Speed for Corrugated Board Carton
  • Automatic Film Wrapping Machine PE Film Shrink Wrap Adjustable Speed for Corrugated Board Carton
  • Automatic Film Wrapping Machine PE Film Shrink Wrap Adjustable Speed for Corrugated Board Carton
Place of Origin CHINA
Brand Name FINTEECH
Certification CE
Model Number 600/900/1000/1200
Minimum Order Quantity 1 Set
Packaging Details Export wooden case with moisture-proof film and foam protection
Delivery Time 15-25 working days
Payment Terms T/T,L/C
Supply Ability 10 Sets per Month
Product Details
Model 600 / 900 / 1000 / 1200 Overall Dimensions 600: L1200xW650xH1620mm; 900: L1500xW650xH2000mm; 1000: L1580xW650xH1900mm; 1200: L1880xW1000xH2150mm
Inner Frame Size 600: 630x420mm; 900: 940x510mm; 1000: 1040x540mm; 1200: 1220x650mm Applicable Film Width 600: 30-60mm; 900: 30-80mm; 1000: 30-80mm; 1200: 50-100mm
Wrapping Mode 3 Rounds (adjustable) Wrapping Speed 600: 3 Rounds/2sec; 900/1000: 1 Round/sec; 1200: 1 Round/1.2sec (adjustable)
Film Roll Diameter <200mm (including Core) Max Package Size 600: W600xH400mm; 900: W900xH500mm; 1000: W1030xH520mm; 1200: W1200xH620mm
Min Package Size 600: W150xH20mm; 900/1000: W300xH20mm; 1200: W300xH100mm Power 600: 750W; 900/1000: 1000W; 1200: 1500W
Voltage 220V Machine Weight 600: 168KG; 900: 258KG; 1000: 330KG; 1200: 398KG
Applicable Film Materials PE, PP, BOPP Product Materials Corrugated Board, Grey Board, Cardboard
Highlight

PE PP BOPP Film Wrapping

,

Adjustable Wrapping Speed

,

Corrugated Board Carton Wrapping
Leave a Message
Product Description

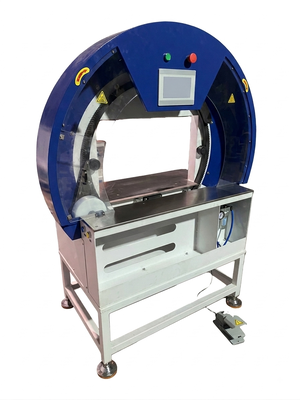

Automatic Film Wrapping Machine for Corrugated Board Carton

This automatic film wrapping machine is designed for shrink wrapping corrugated board, grey board and cardboard products with PE, PP or BOPP film. Four models (600/900/1000/1200) cover a wide range of package sizes with fast, adjustable wrapping.


Key Selling Points
  • PE PP BOPP Film Wrapping — Compatible with PE, PP and BOPP film, film roll diameter under 200mm including core.
  • Adjustable Wrapping Speed — Up to 1 round per second, 3 rounds adjustable wrapping mode for different package sizes.
  • Corrugated Board Carton Wrapping — Handles corrugated board, grey board and cardboard with max package size up to W1200 x H620mm.
Applicable Materials

Film materials: PE, PP, BOPP

Product materials: Corrugated board, grey board, cardboard

Technical Parameters
Model 600 900 1000 1200
Overall Dimensions L1200xW650xH1620mm L1500xW650xH2000mm L1580xW650xH1900mm L1880xW1000xH2150mm
Inner Frame Size 630x420mm 940x510mm 1040x540mm 1220x650mm
Applicable Film Width 30-60mm 30-80mm 30-80mm 50-100mm
Wrapping Mode 3 rounds (adjustable) 3 rounds (adjustable) 3 rounds (adjustable) 3 rounds (adjustable)
Wrapping Speed 3 rounds/2sec (adjustable) 1 round/sec (adjustable) 1 round/sec (adjustable) 1 round/1.2sec (adjustable)
Film Roll Diameter <200mm (incl. core) <200mm (incl. core) <200mm (incl. core) <200mm (incl. core)
Max Package Size W600xH400mm W900xH500mm W1030xH520mm W1200xH620mm
Min Package Size W150xH20mm W300xH20mm W300xH20mm W300xH100mm
Power 750W 1000W 1000W 1500W
Voltage 220V 220V 220V 220V
Machine Weight 168KG 258KG 330KG 398KG
