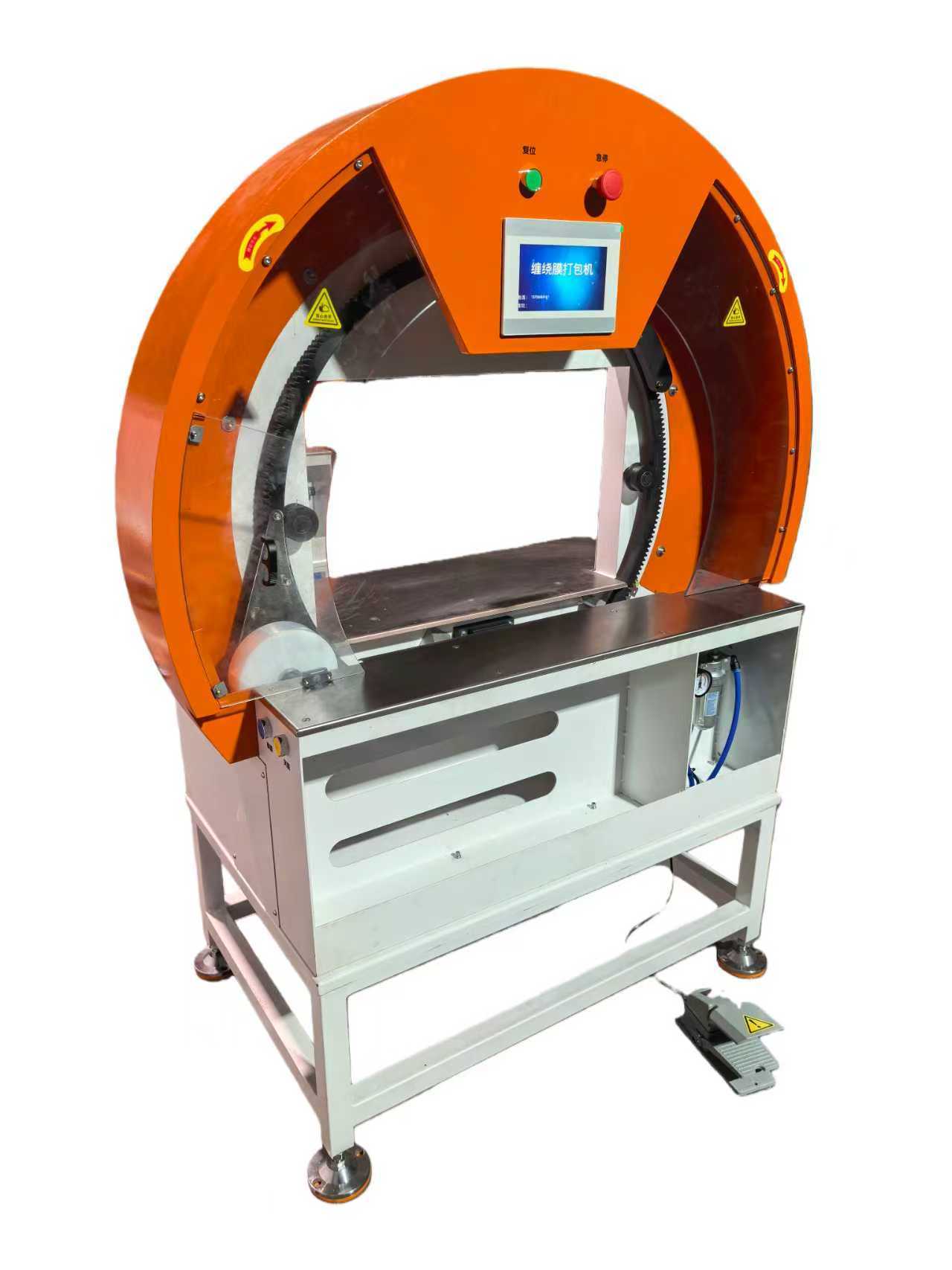

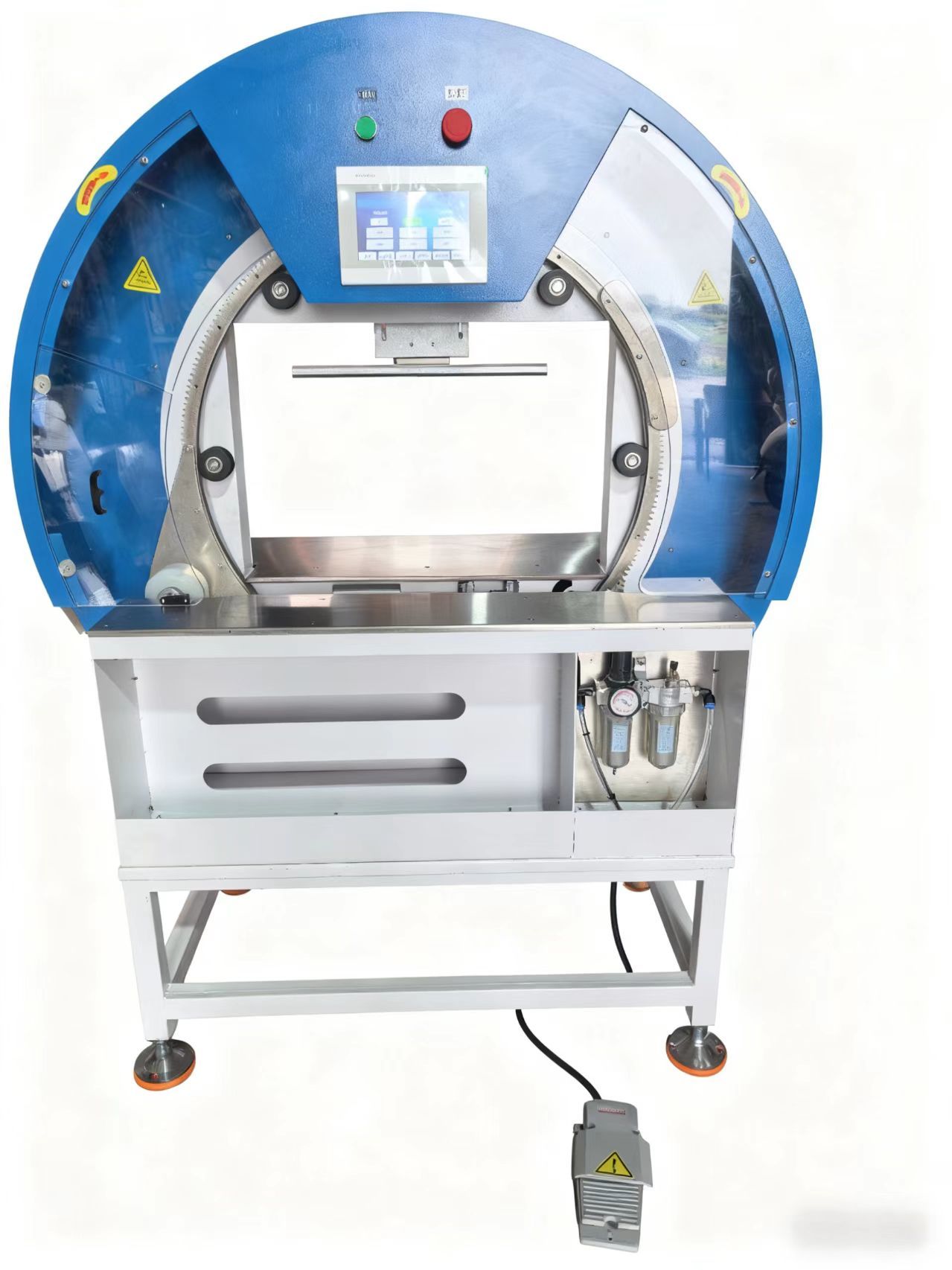

Automatic Film Wrapping Machine For Label , Heat Transfer Industry

  • Automatic Film Wrapping Machine For Label , Heat Transfer Industry
  • Automatic Film Wrapping Machine For Label , Heat Transfer Industry
  • Automatic Film Wrapping Machine For Label , Heat Transfer Industry
  • Automatic Film Wrapping Machine For Label , Heat Transfer Industry
  • Automatic Film Wrapping Machine For Label , Heat Transfer Industry
  • Automatic Film Wrapping Machine For Label , Heat Transfer Industry
  • Automatic Film Wrapping Machine For Label , Heat Transfer Industry
Place of Origin CHINA
Brand Name FINTEECH
Certification CE
Model Number 600/900/1000/1200
Product Details
Machinetype Automatic Machinedimensions 2500 Mm X 1500 Mm X 1800 Mm
Usage Label,heat Transfer Industry Weight 15Ton
Computerized Yes,Semi-Automatic, Motor Power 4KW
Powerconsumption 3 KW Condition New
Type Paper Cutting Machine Total Weight 2600kg
Suitable Sheet Thickness 0.2-5.0mm Model KL-350
Suitable Paper Weight 200g-500g Cuttingspeed 30-60 Cycles Per Minute
Maxcuttingthickness 10 Mm
Highlight

Automatic Film Wrapping Machine

,

Film Wrapping Machine For Label
Leave a Message
Product Description

Applicable Materials

  • Film materials: PE, PP, BOPP
  • Product materials: Corrugated board, grey board, cardboard

Technical Parameters

Model 600 900 1000 1200
Overall Dimensions L1200*W650*H1620mm L1500*W650*H2000mm L1580xW650xH1900mm L1880*W1000*H2150mm
Inner Frame Size 630*420mm 940*510mm 1040x540mm 1220x650mm
Applicable Film Width 30-60mm 30-80mm 30-80mm 50-100mm
Wrapping Mode 3 rounds (adjustable) 3 rounds (adjustable) 3 rounds (adjustable) 3 rounds (adjustable)
Wrapping Speed 3 rounds/2sec (adjustable) 1 round/sec (adjustable) 1 round/sec (adjustable) 1 round/1.2sec (adjustable)
Film Roll Diameter <200mm (including core) <200mm (including core) <200mm (including core) <200mm (including core)
Max Package Size W600*H400mm W900*H500mm W1030mmxH520mm W1200mmxH620mm
Min Package Size W150*H20mm W300*H20mm W300*H20mm W300*H100mm
Power 750W 1000W 1000W 1500W
Voltage 220V 220V 220V 220V
Machine Weight 168KG 258KG 330KG 398KG

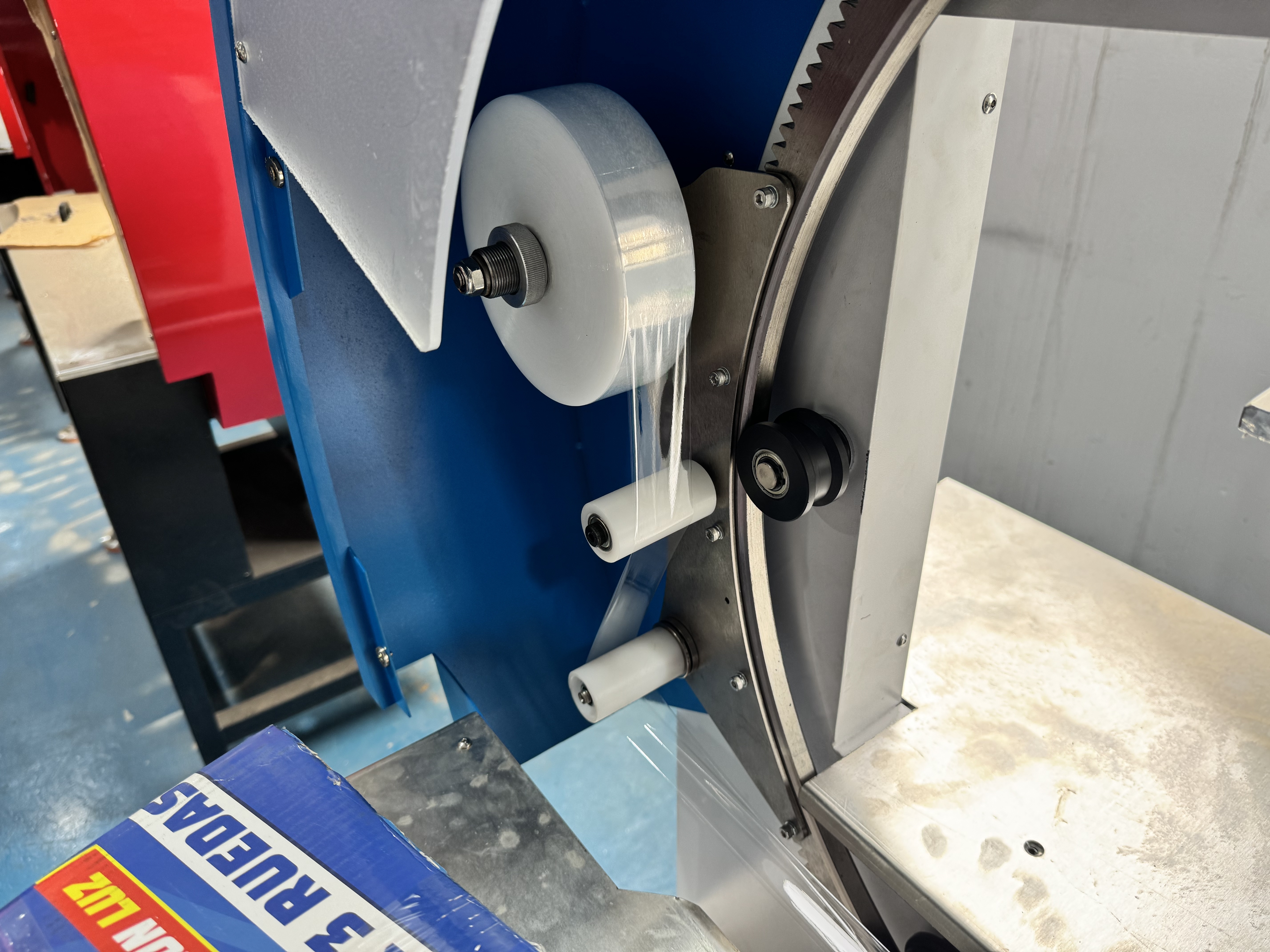

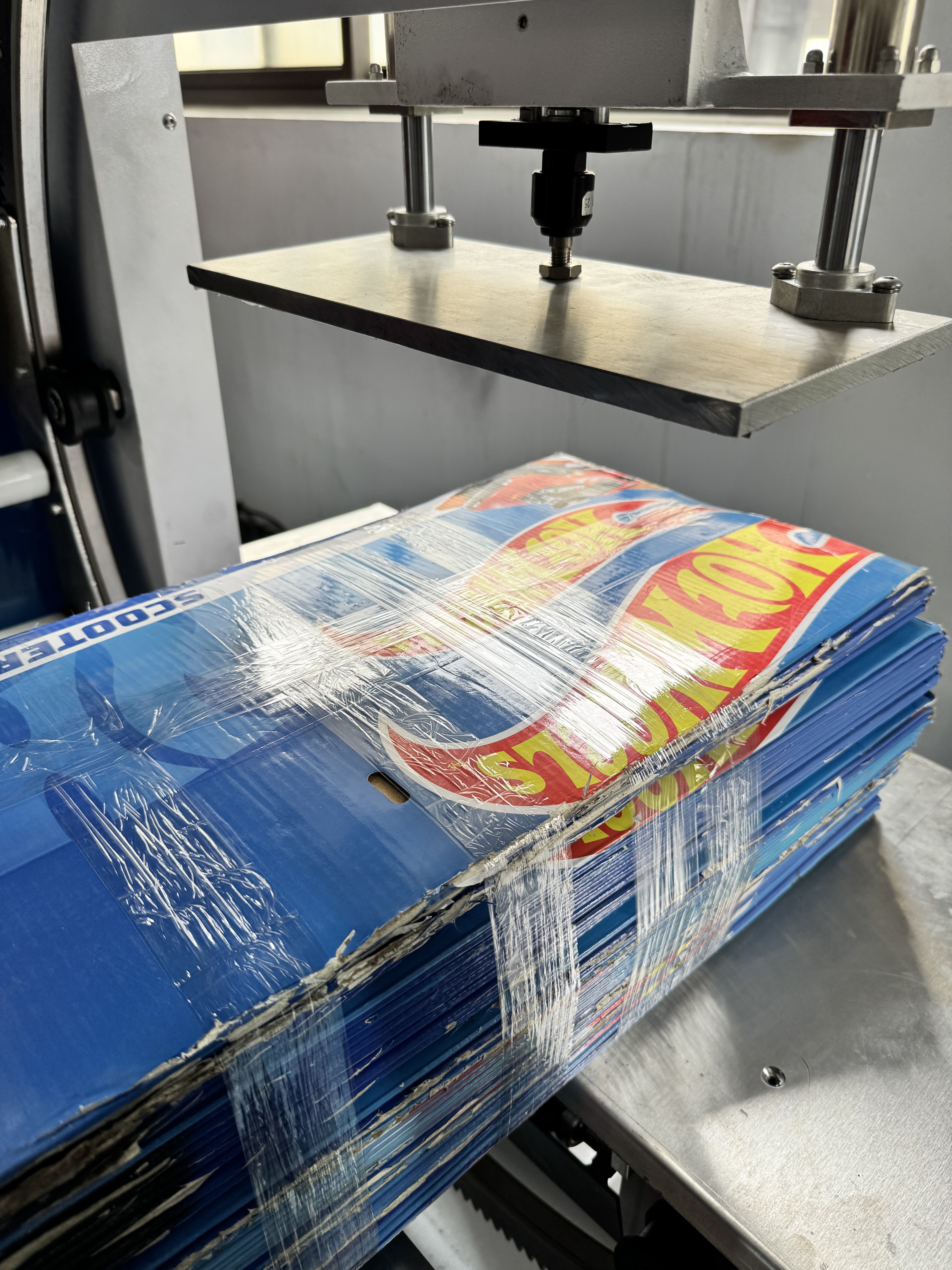

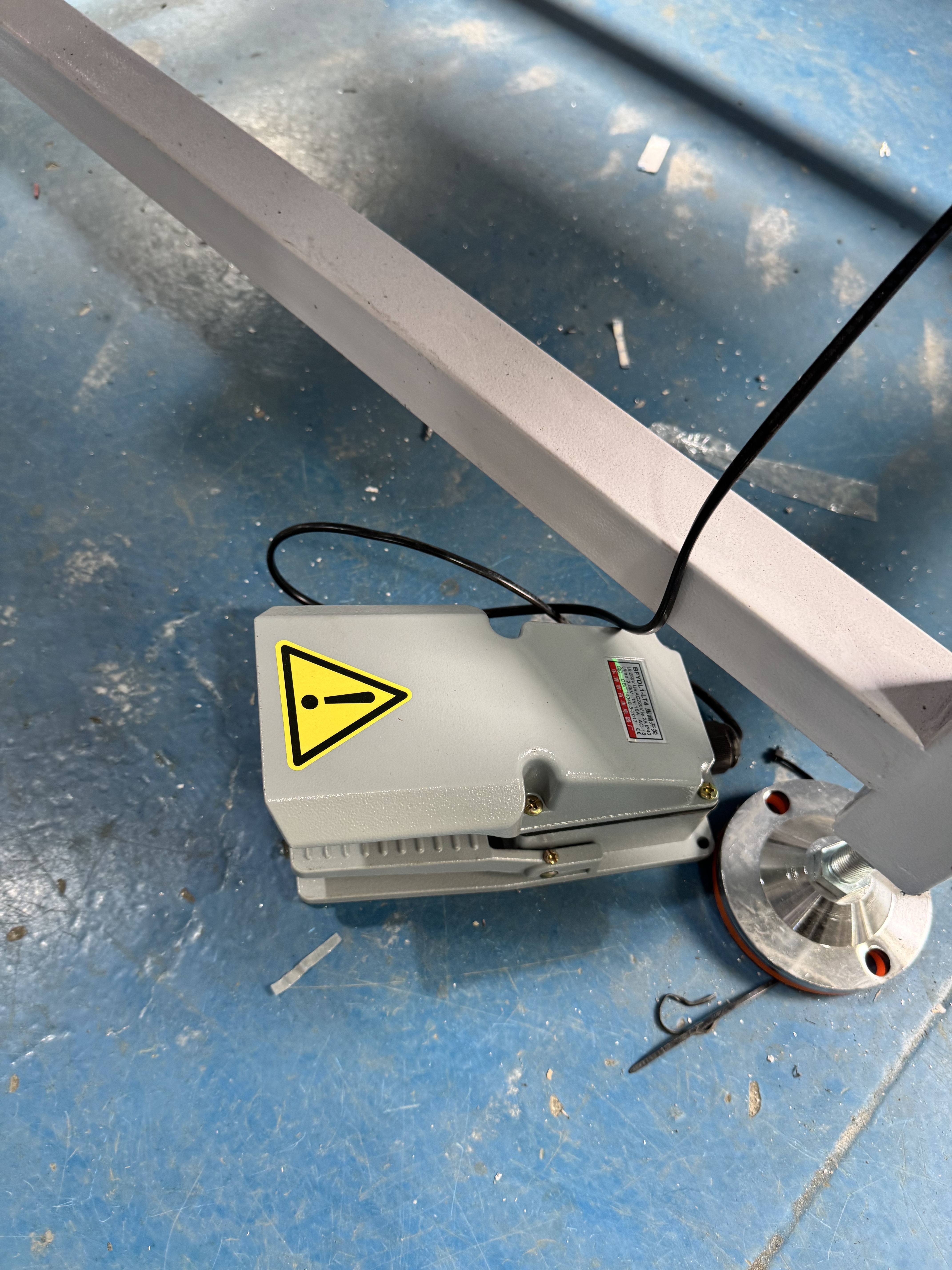

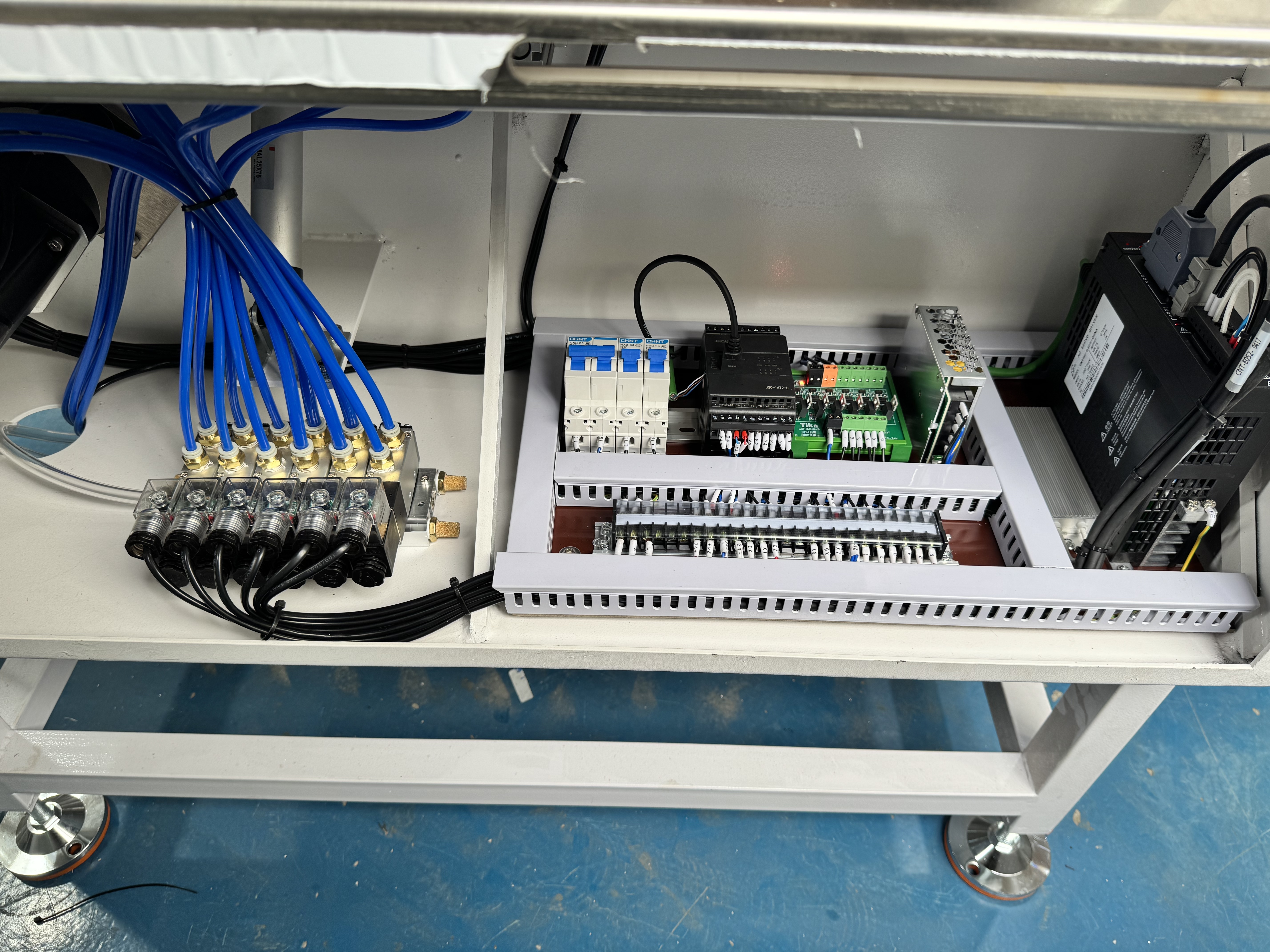

Factory photos

Automatic Film Wrapping Machine For Label , Heat Transfer Industry 0
