Automatic UV Coating Machine Large Format for Paper Packaging Finishing
| Place of Origin | China |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | 1060W |
| Minimum Order Quantity | 1 Set |
| Packaging Details | wooden case |
| Delivery Time | 10 working days for stock, 25-40 days for production |
| Payment Terms | T/T,L/C |
| Supply Ability | 10 Sets per Month |
Product Details
| Model | 1060W | Max Sheet Size | 730 X 1060 Mm |
|---|---|---|---|
| Min Sheet Size | 310 X 406 Mm | Max Coating Area | 720 X 1050 Mm |
| Sheet Thickness | 80 - 500 Gsm | Max Coating Speed | Up To 9000 Sheets/hour |
| Power Required | 44KW (solvent Base) / 40KW (water Base) | Machine Dimensions | 11960 X 2725 X 1976 Mm |
| Machine Weight | 8000 Kg | Power Supply | 380V 50Hz 3-Phase |
| Highlight | 9000 Sheets Per Hour High Speed,44KW Dual Mode Power System,730x1060mm Large Format Coating |
||
Product Description

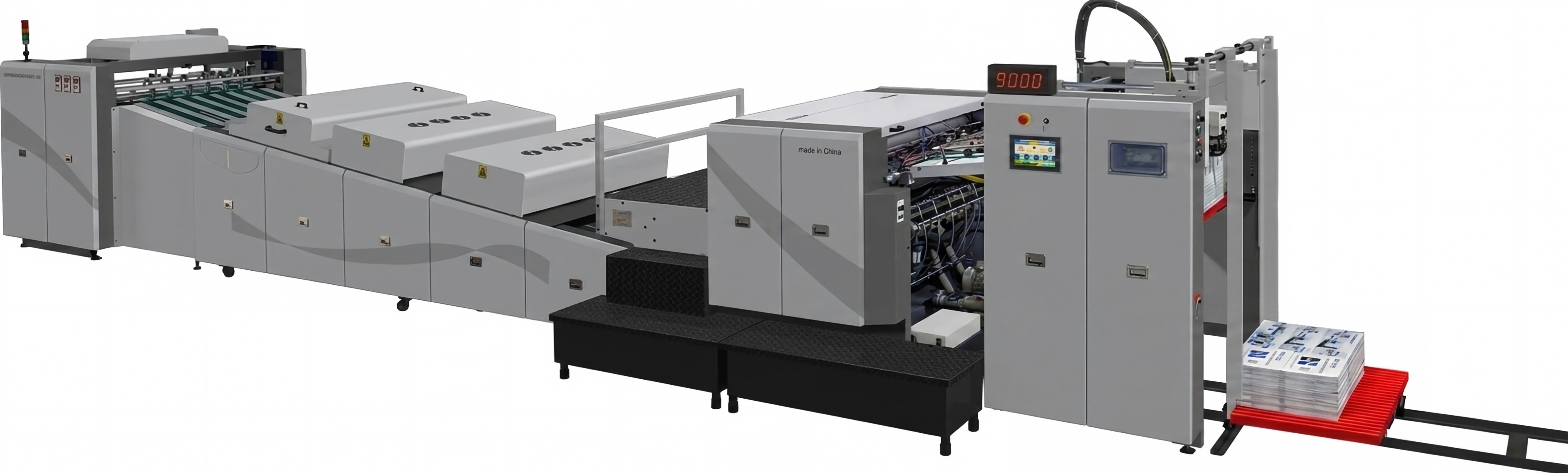

1060W Automatic UV Coating Machine
730*1060mm Large Format | 9000 Sheets/Hour | 44KW Dual Mode | 80-500gsm
9000 Sheets/Hour High Speed Production
Delivers up to 9000 sheets per hour coating speed (depending on sheet weight, size and quality). Ideal for high-volume commercial printing and packaging finishing with continuous production capability.
44KW Dual Mode Power System
Flexible 44KW (solvent base) / 40KW (water base) dual-mode configuration. Supports both UV-curable solvent-based and water-based varnish for versatile production requirements.
730x1060mm Large Format Coating
Max sheet size 730x1060mm with effective coating area 720x1050mm. Min sheet 310x406mm. Handles 80-500gsm from lightweight stock to heavy board for folding cartons, book covers, and premium packaging.
Industrial Heavy-Duty Construction
Massive 8000kg machine, dimensions 11960x2725x1976mm. Heavy-duty welded steel frame and industrial-grade components for reliable 24/7 production.
Key Component Details
Automatic Feeder
High speed feeder with four sucking and four forwarding suckers can feed sheet smoothly at high production speed.

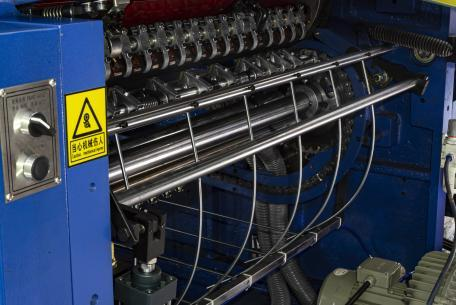

Sheet Transferring Unit
Upper swing sheet transferring method can transfer sheet smoothly at high speed to pressure cylinder exactly for precise registration.

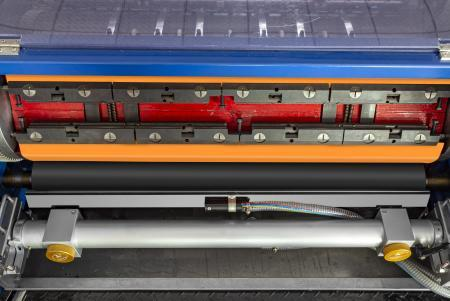

Varnish Supply System
Steel roller and rubber roller with metering roller reversing and doctor blade design control varnish consumption and volume to meet product demands. Varnish consumption and volume are determined by LPI of ceramic anilox roller for precise, consistent coating results.

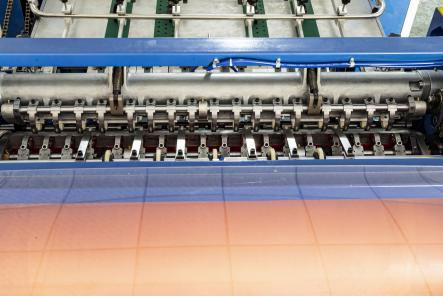

Transferring Unit
After sheet is transferred from pressure cylinder to gripper, air volume blowing supports and reverses sheet smoothly, preventing sheet surface from being scratched during the transfer process.

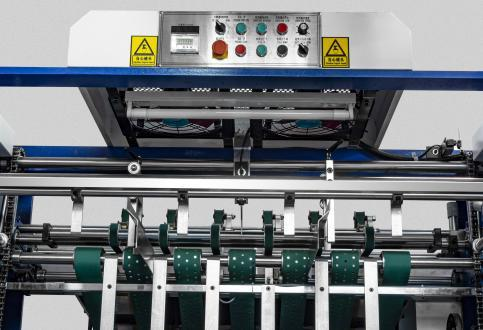

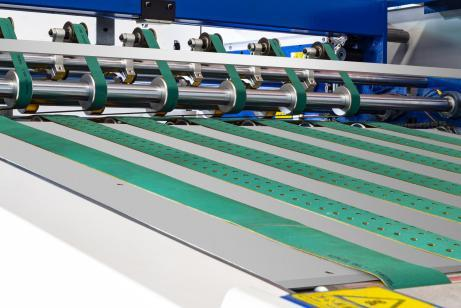

Conveying Unit
Upper and lower conveying belt can form thin sheet to be curved for smooth delivery, ensuring coated sheets reach the stacking unit without damage or misalignment.

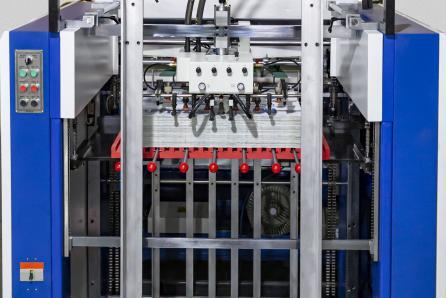

Sheet Delivery System
Automatic pneumatic patting sheet controlled by photoelectric detecting sensor makes sheet pile fall automatically and collect sheet neatly. Electronic control can take out sheet sample safely and quickly for quality inspection during production.
Technical Specifications
| Model | 1060W |
| Max Sheet Size | 730 x 1060 mm |
| Min Sheet Size | 310 x 406 mm |
| Max Coating Area | 720 x 1050 mm |
| Sheet Thickness | 80 - 500 gsm |
| Max Coating Speed | Up to 9000 sheets/hour |
| Power Required | 44KW (solvent base) / 40KW (water base) |
| Machine Dimensions | 11960 x 2725 x 1976 mm |
| Machine Weight | 8000 kg |
📄
Wide Substrate Range
Handles 80-500gsm from thin offset paper to thick card board. Suitable for folding cartons, book covers, brochures, and premium gift packaging.
🛡️
Safety Design
Full enclosure UV shielding, emergency stop systems on both sides, overload protection, and magnetic leakage transformer for operator safety.
🔧
Easy Maintenance
Quick-access side panels for roller and lamp maintenance. In-line varnish filter tool-free access. PLC diagnostic display for fast troubleshooting.
Ready for High-Volume Large Format UV Coating?
Contact WNRLN for a customized quotation, live production video, and technical consultation.
ISO 9001:2015 & CE Certified | 12-Month Warranty | Global Technical Support
