Safe Compact Digital Spot UV Coating Machine Energy Efficiency Low Maintenance

  • Safe Compact Digital Spot UV Coating Machine Energy Efficiency Low Maintenance
  • Safe Compact Digital Spot UV Coating Machine Energy Efficiency Low Maintenance
Place of Origin CHINA
Brand Name FINTEECH
Certification CE
Model Number FDW-1060W
Minimum Order Quantity 1set
Packaging Details wooden case
Delivery Time 20-30 days
Payment Terms TT/LC
Supply Ability 10 sets per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

Safe Digital Spot UV Coating Machine

,

Compact Digital Spot UV Coating Machine

,

Low Maintenance Spot UV Coating Machine
Leave a Message
Product Description

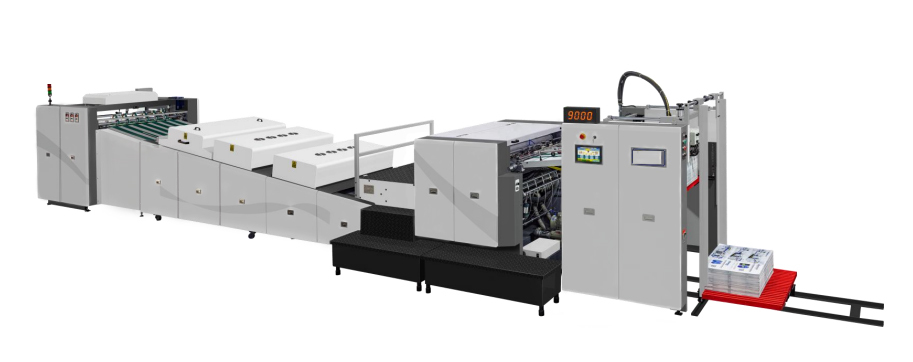

High Speed UV Spot And Overall Coating Machine
Machine Features
  • Automatic Feeder: High speed feeder with four sucking and four forwarding suckers ensures smooth sheet feeding.
  • Sheet Transferring Unit: Upper swing sheet transferring method delivers sheets smoothly at high speed to pressure cylinder with precision.
  • Varnish Supply: Steel roller and rubber roller with metering roller reversing and doctor blade design controls varnish consumption and volume (determined by LPI of ceramic anilox roller).
  • Transferring Unit: Air volume blowing supports and reverses sheets smoothly, preventing surface scratches during transfer from pressure cylinder to gripper.
  • Conveying Unit: Upper and lower conveying belts form thin sheets into curved shapes for smooth delivery.
  • Sheet Delivery: Automatic pneumatic patting system with photo-electric sensor control ensures neat sheet collection and safe, quick sampling for inspection.
Technical Specifications
Model FDW-1060W
Max. Sheet Size 730mm × 1060mm
Min. Sheet Size 310mm × 406mm
Max. Coating Area 720mm × 1050mm
Sheet Thickness 80-500gsm
Max. Coating Speed Up to 9000 sheets/hour (varies by sheet weight, size and quality)
Power Required 44Kw (solvent base) / 40Kw (water base)
Dimensions (L×W×H) 11960mm × 2725mm × 1976mm
Weight 8000 kg
