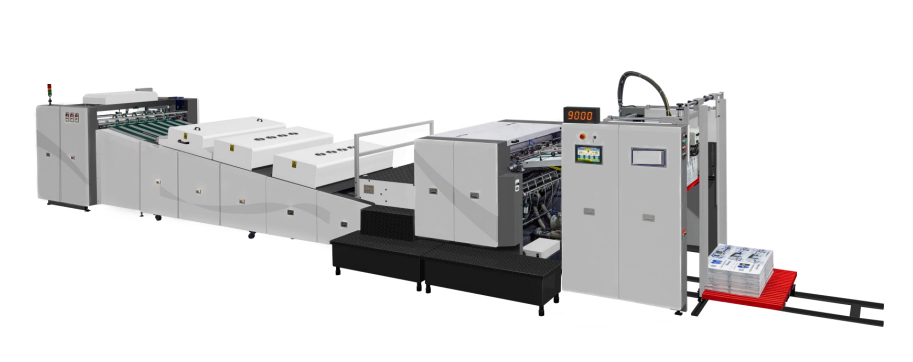

730mm*1060mm Auto Print UV Machine 44K With LED Light And Conveying Unit

  • 730mm*1060mm Auto Print UV Machine 44K With LED Light And Conveying Unit
  • 730mm*1060mm Auto Print UV Machine 44K With LED Light And Conveying Unit
Place of Origin CHINA
Brand Name FINTEECH
Certification CE
Model Number FDW-1060W
Minimum Order Quantity 1set
Packaging Details wooden case
Delivery Time 20-30 days
Payment Terms TT/LC
Supply Ability 10 sets per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Portable/Rechargeable Color Slightly Yellow Powder,Light Yellow,Transparent
Sample Available Keywords Octabenzone,UV & EB Curable Systems,UV Light Stabilizer
Light Source LED Shape Round/Square/Rectangle
Power Source Battery
Highlight

730mm*1060mm Auto Print UV Machine

,

LED Light Auto Print UV Machine

,

730mm*1060mm Digital Spot UV Coater
Leave a Message
Product Description
FlashCoat UV Spot And Full-Area Coating Machine
Product Attributes
Attribute Value
Color slightly yellow powder, Light yellow, Transparent
Sample available
Keywords Octabenzone, UV & EB curable systems, UV light stabilizer
Light Source LED
Shape Round/Square/Rectangle
Features Portable/Rechargeable
Material Plastic
Power Source Battery
Machine Details
  • Automatic Feeder: High speed feeder with four sucking and four forwarding suckers can feed sheet smoothly.
  • Sheet Transferring Unit: Upper swing sheet transferring method can transfer sheet smoothly at high speed to pressure cylinder exactly.
  • Varnish Supply: Steel roller and rubber roller with metering roller reversing and doctor blade design control varnish consumption and volume to meet the demand of products and operate easily (Varnish consumption and volume are determined by LPI of ceramic anilox roller).
  • Transferring Unit: After sheet is transferred from pressure cylinder to gripper, air volume blowing for paper can support and reverse sheet smoothly, which can prevent sheet surface from being scratched.
  • Conveying Unit: Upper and lower conveying belt can form thin sheet to be curved for smoothly delivery.
  • Sheet Delivery: Automatic pneumatic patting sheet controlled by photo electric detecting sensor make sheet pile fall automatically and collect sheet neatly. Electronic control can take out sheet sample safely and quickly for inspecting.
Product Specifications
MODEL FDW-1060W
Max. Sheet Size 730mm*1060mm
Min. Sheet Size 310mm*406mm
Max. Coating Area 720mm*1050mm
Sheet Thickness 80-500gsm
Max. Coating Speed Up to 9000sheets/hour (Depending on sheet weight, size and quality)
Power Required 44Kw (solvent base)/40Kw (water base)
Dimension (L*W*H) 11960mm*2725mm*1976mm
Weight 8000Kgs
