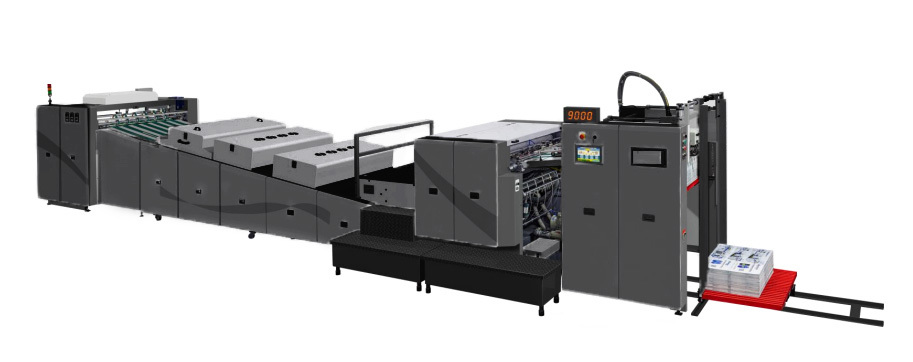

Metal Spot UV Printing Machine With Varnish Supply And Automatic Feeder
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | FDW-1060W |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Metal | Color | Silver |
|---|---|---|---|
| Power Source | Electric | Weight | 8000kgs |
| Highlight | Varnish Spot UV Printing Machine,Metal Spot UV Printing Machine,Automatic Feeder Digital Spot UV Machine |
||
Product Description
High Speed Spot UV Machine with Varnish Supply and Automatic Feeder
Product Attributes
| Material | Metal |
|---|---|
| Color | Silver |
| Power Source | Electric |
| Weight | 8000kgs |
Machine Features
- Automatic Feeder: High speed feeder with four sucking and four forwarding suckers ensures smooth sheet feeding.
- Sheet Transferring Unit: Upper swing sheet transferring method transfers sheets smoothly at high speed to pressure cylinder with precision.
- Varnish Supply: Steel roller and rubber roller with metering roller reversing and doctor blade design controls varnish consumption and volume (determined by LPI of ceramic anilox roller).
- Transferring Unit: Air volume blowing supports and reverses sheets smoothly after transfer from pressure cylinder to gripper, preventing surface scratches.
- Conveying Unit: Upper and lower conveying belts form thin sheets into curved shapes for smooth delivery.
- Sheet Delivery: Automatic pneumatic patting system with photo electric detecting sensor ensures neat sheet collection and safe, quick sampling for inspection.
Product Specifications
| Model | FDW-1060W |
|---|---|
| Max. Sheet Size | 730mm × 1060mm |
| Min. Sheet Size | 310mm × 406mm |
| Max. Coating Area | 720mm × 1050mm |
| Sheet Thickness | 80-500gsm |
| Max. Coating Speed | Up to 9000 sheets/hour (depending on sheet weight, size and quality) |
| Power Required | 44Kw (solvent base) / 40Kw (water base) |
| Dimensions (L×W×H) | 11960mm × 2725mm × 1976mm |
| Weight | 8000Kgs |
