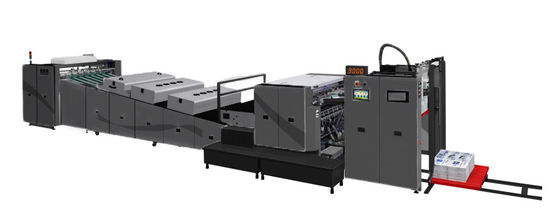

High Speed Spot UV Machine 9000 Sheets/H Spot UV Coater With Automatic Feeder And Sheet Transferring Unit
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | FDW-1060W |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | High Speed Spot UV Machine,Automatic Feeder Spot UV Machine,9000 Sheets/H Spot UV Coater |
||
|---|---|---|---|
Product Description
Machine Details
1.AutomaticFeeder:
High speed feeder with four sucking and four forwarding suckers can feed sheet smoothly.
2.SheetTransferringUnit:
Upper swing sheet transferring method can transfer sheet smoothly at high speed to pressurecy linder exactly.
3.VarnishSupply:
Steel roller and rubber roller with metering roller reversing and doctor blade design control varnish consumption and volume to meet the demand of products and operate easily (Varnishconsumption and volume are determined by LPI of ceramic anilox roller)
4.TransferringUnit:
After sheet is transferred from pressure cylinder to gripper,air volume blowing for paper can support and reverse sheet smoothly,which can prevent sheet surface from being scratched.
5.ConveyingUnit:
Upper and lower conveying belt can form thin sheet to be curved for smoothly delivery.
6.SheetDelivery:
Automatic pneumatic patting sheet controlled by photo electric detecting sensor make sheet pile fall automatically and collect sheet neatly.Electronic control can take out sheet sample safely and quickly forinspecting.
PRODUCT SPECIFIATION
| MODEL | FDW-1060W |
|---|---|
| Max.Sheet Size | 730mm*1060mm |
| Min.Sheet Size | 310mm*406mm |
| Max.Coating Area | 720mm*1050mm |
| Sheet Thickness | 80-500gsm |
| Max.Coating Speed | Up to 9000sheets/hour(Depending on sheet weight,size and quality) |
| Power Required | 44Kw(solvent base)/40Kw(water base) |
| Dimension(L*W*H) | 11960mm*2725mm*1976mm |
| Weight | 8000Kgs |
