Automatic UV Coating Machine Vacuum Airbed Magnetic Leakage Transformer Full Safety Protection Design
| Place of Origin | China |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | UV-760A |
| Minimum Order Quantity | 1 Set |
| Packaging Details | Export-grade plywood case with vacuum-packed moisture-proof film and foam cushioning |
| Delivery Time | 15-25 working days after deposit |
| Payment Terms | T/T,L/C |
Product Details
| Model | UV-760A | Max Sheet Size | 760 X 1020 Mm |
|---|---|---|---|
| Min Sheet Size | 270 X 270 Mm | Paper Weight Range | 80 - 500 G/m2 |
| Coating Speed | 0 - 40 M/min | Total Power | 13.5 KW |
| UV Lamp | 1 Pc X 6.5 KW | IR Lamp | 3 Pcs X 1.2 KW |
| Machine Weight | 1500 Kg | Machine Dimension | 6500 X 1400 X 1600 Mm |
| Application | Posters, Books, Brochures, Color Boxes, Handbags | ||
| Highlight | Vacuum Airbed Paper Hold Down,Magnetic Leakage Transformer Design,Full Coverage UV Radiation Safety |
||
Product Description

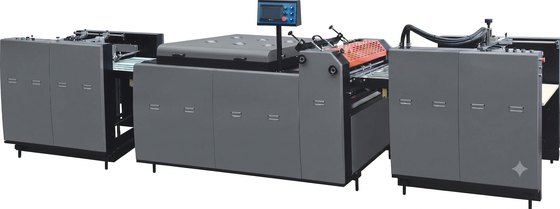

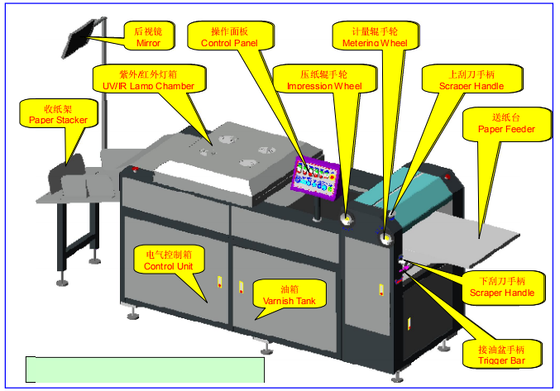

Automatic UV Coating Machine Model 760A
Product Overview
The UV-760A Automatic UV Coating Machine is a practical fully automatic coating machine developed for high-quality surface finishing of printed materials. It is suitable for posters, books, brochures, color boxes, color box packaging, and handbags. Equipped with both UV curing and IR drying devices, this machine delivers exceptional coating results with operational safety as a top priority.
Key Features
Vacuum Airbed System
Equipped with a powerful vacuum airbed for maximum paper hold-down on the conveying surface, ensuring stable and precise sheet transport even for thin or lightweight paper.
Magnetic Leakage Transformer
UV magnetic leakage transformer with parallel capacitor design better endures voltage fluctuating impact, providing stable UV lamp output and extended lamp service life.
Full Safety Protection
Full coverage splash guards protect operators from coating splashing. Complete UV radiation shielding around the lamp chamber. Safety lockers on all doors and covers with emergency stop switches throughout the machine.
Dual UV Curing and IR Drying
This UV coating machine combines UV curing lamp (1pc x 6.5KW) with IR drying lamps (3pcs x 1.2KW) for optimal coating results across different varnish types and paper weights.
Precision Coating Rollers
Larger diameter coating rollers ensure a smoother and brighter coating finish with uniform coverage across the entire sheet surface.
Digital Frequency Converter
Digital frequency converter speed control with independent conveyor drive allows precise speed adjustment from 0-40m/min to match different paper types and coating requirements.
Two-Level UV Lamp Power
Two-level UV lamp power setting allows operators to select optimal curing intensity based on coating thickness and production speed requirements.
Low Temperature Control
High-velocity blower fan for effective cooling and exhaust, maintaining lower temperature on the UV lamp chamber surface to protect paper from heat deformation.
Technical Specifications
| Parameter | UV-660A | UV-760A |
|---|---|---|
| Max Sheet Size | 620 x 760 mm | 760 x 1020 mm |
| Min Sheet Size | 270 x 270 mm | 270 x 270 mm |
| Sheet Weight | 80 - 500 g/m2 | 80 - 500 g/m2 |
| Speed | 0 - 40 m/min | 0 - 40 m/min |
| Power | 13.5 KW | 13.5 KW |
| UV Lamp | 1 pc x 6.5 KW | 1 pc x 6.5 KW |
| IR Lamp | 3 pcs x 1.2 KW | 3 pcs x 1.2 KW |
| Weight | 1500 kg | 1500 kg |
| Dimension | 6500 x 1250 x 1600 mm | 6500 x 1400 x 1600 mm |
Service and Warranty
Training: All machines are fully adjusted and tested in the workshop before delivery. Training covers mechanical structure, component adjustment, electrical operation, and day-to-day maintenance to ensure normal equipment operation.
Warranty: 12 months for electric parts, lifetime technical service. Spare parts can be dispatched immediately upon request with customer bearing courier fees.
