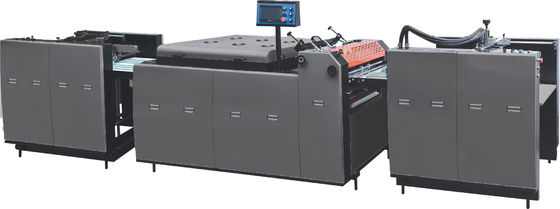

Automatic UV Coating Machine with 620x760mm and 760x1020mm Max Sheet Size and 0~40m/min Speed for High Efficiency Lamination
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | 760A |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Heating Type | Induction Heating | Map Lamination | Application |
|---|---|---|---|
| Front Lay | Yes | Loading | In Factory |
| Side Lay | Smart | Pressing Roller | Big Size |
| Material | Wheel | Lamination Type | Single-sided Or Double-sided |
| Highlight | High Efficiency Automatic UV Coating Machine,Automatic UV Coating Equipment |
||
Product Description
Automatic UV Coating Machine
Machine Function
This fully automatic coating machine is designed for high-quality UV coating applications on various materials including posters, books, brochures, packaging boxes, and handbags.
Key Features
- Equipped with UV curing and IR drying system for efficient processing
- Digital frequency converter speed control with independent conveyor drive
- Large diameter coating rollers ensure smooth, bright coating results
- Full coverage splash guards for operator protection
- Vacuum airbed system securely holds paper sheets during processing
- UV magnetic leakage transformer with parallel capacitor design handles voltage fluctuations
- Two-level UV lamp power setting for flexible operation
- Easy-access UV lamp chamber for quick maintenance and replacement
- High-velocity blower fan for effective cooling and exhaust
- Comprehensive safety features including door locks and emergency stops
- Full UV radiation protection around lamp chamber
- Low temperature control on UV lamp chamber surface
- Emergency stop switches positioned throughout machine
- Interlock system prevents operational errors
Technical Specifications
| Model | UV-660A | UV-760A |
|---|---|---|
| Max. Sheet Size | 620x760mm | 760x1020mm |
| Min. Sheet Size | 270x270mm | 270x270mm |
| Sheet Weight | 80~500g/m² | 80~500g/m² |
| Speed | 0~40m/min | 0~40m/min |
| Power | 13.5Kw | 13.5Kw |
| UV Lamp | 1pcs*6.5Kw | 1pcs*6.5Kw |
| IR Lamp | 3pcs*1.2Kw | 3pcs*1.2Kw |
| Weight | 1500kg | 1500kg |
| Dimension | 6500*1250*1600mm | 6500*1400*1600mm |
Machine Structure
Service and Warranty
Training: All machines undergo complete adjustment and testing before delivery. Training covers mechanical structure, component adjustment, electrical operation, daily maintenance, and operational procedures.
Warranty: 12 months for electrical parts with lifetime service support. Spare parts are available for immediate dispatch (customer responsible for courier fees). Warranty period begins from delivery date.
Configuration
Loading and Packaging
Machine Loading Process
Machine Shipping Preparation
