Stainless Steel Paper Roll Slitter C1400B-2 Rolls Safety Paper Slitting Machine Versatile
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | C1400B |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Stainless Steel | Safety Features | Emergency Stop Button, Safety Guard, Overload Protection |
|---|---|---|---|
| Blade Material | Tungsten Carbide | Control System | PLC |
| Highlight | Stainless Steel Paper Roll Slitter,Safety Paper Roll Slitter,Safety Paper Slitting Machine |
||
Product Description

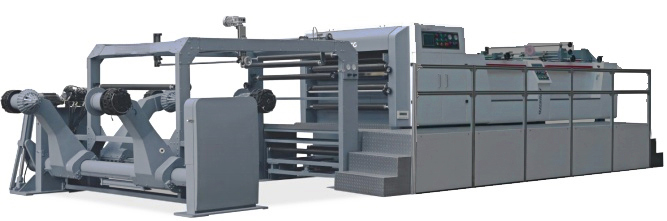

Stainless Steel Paper Roll Slitter C1400B-2 Rolls Safety Paper Slitting Machine
This high-speed sheet cutter combines advanced techniques from Taiwan and Germany with over 10 years of manufacturing expertise in paper processing equipment.
Key Features:
- Servo motor transmission for reliable operation
- Fast and stable paper cutting performance
- German precision bearings and cutting knives ensure high accuracy
- User-friendly touch screen computer interface
- Anti-curly design maintains paper smoothness
- Ideal for paper manufacturing and printing industries
Technical Specifications:
| Model Number | C1400B |
|---|---|
| Machine Dimensions | 12000 × 2300 × 2400mm |
| Weight | 11000kg |
| Maximum Speed | 300 cuts/min |
| Power Requirements | 380V, 28kW, 3 Phase |
| Cutting Paper Weight Range | 50-550g |
| Cutting Accuracy | ±0.3mm (length ≤1000mm), ±0.05% (length >1000mm) |
| Cutting Length Range | 400-1450mm |
| Maximum Scroll Diameter | 1800mm (71") |
| Maximum Paper Cutting Width | 1400mm |
| Slitting Format | 2 sheet |
| Maximum Material Cutting Speed | 300m/min |
| Air Pressure Requirements | 0.8Mpa |
| Packaging | 40HQ Container |
Performance Notes:
Actual production yield depends on paper texture, weight, cutting length, volume, operator skill, and operational conditions. Maximum load capacity is for single card paper up to 500gsm - material density and quality must be considered for optimal performance.
