Customizable Paper Roll Cutting Machine 1450mm Length High Precision And Speed
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | C1400B |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Customizable paper roll cutting machine,1450mm Length paper roll cutting machine,Customizable High speed Sheet Cutter |
||
|---|---|---|---|
Product Description

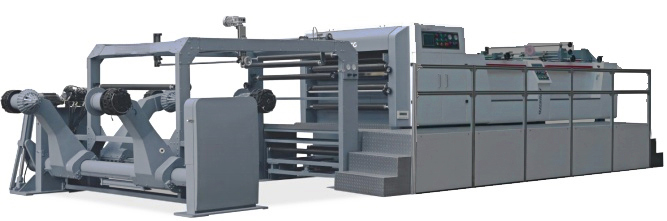

High Speed Sheet Cutter C1400B-2 Rolls
Introduction:
This web cutting machine adopt the advanced technique from Taiwan and Germany, and combined with our more than 10 years’ experiences in producing sheet cutter machines.
The machine is transmitted by servo motor.
The speed of cutting paper is fast and stable.
Germany precise bear and cutting knife assure the high cutting precision.
Touch screen computer interface control, simple operation, reasonable structure, anti-Curly, to ensure smooth paper.
This machine is the paper processing machine which is very popular in the paper making and printing industry and will improve the efficiency and benefit for your company to a large extent.
Technical Specifications
| Model Number | C1400B |
| Machine Dimensions | 12000 * 2300 * 2400mm |
| Weight | 11000kg |
| Maximum Speed | 300 cuts/min |
| Power Requirements | 380V, 28kW, 3 Phase |
| Cutting Paper Weight Range | 50-550g |
| Cutting Accuracy | ±0.3mm (length ≤1000mm), ±0.05% (length >1000mm) |
| Cutting Length Range | 400-1450mm |
| Maximum Scroll Diameter | 1800mm (71") |
| Maximum Paper Cutting Width | 1400mm |
| Slitting Format | 2 sheet |
| Maximum Material Cutting Speed | 300m/min |
| Air Pressure Requirements | 0.8Mpa |
| Packaging | 40HQ Container |
Performance Notes
Actual yield depends on paper texture, weight, cutting length, volume, operator skill, and operational conditions.
Maximum load capacity: For single card paper up to 500gsm, material density and quality must be considered.
Maximum load capacity: For single card paper up to 500gsm, material density and quality must be considered.
