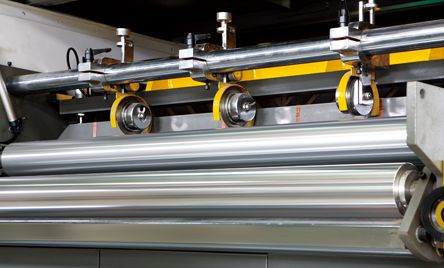

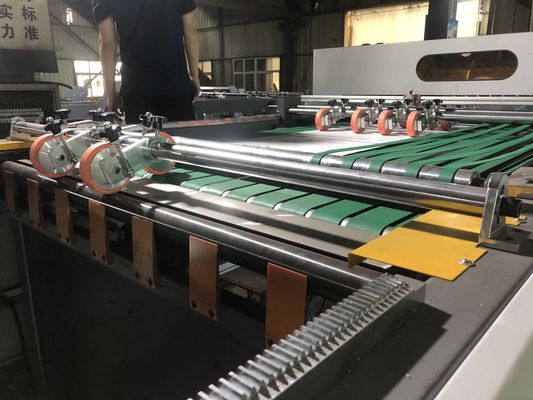

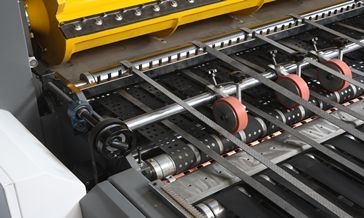

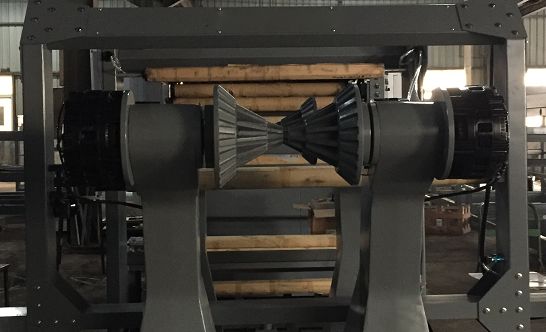

1400mm Width Paper Roll Slitter With Magnetic Powder Brake 0.8Mpa Paper Slitting Machine C1400B
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | C1400B |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rewinding Tension Control | Magnetic Powder Clutch | Model | C1400B |
|---|---|---|---|
| Unwinding Tension Control | Magnetic Powder Brake | Max. Slitting Speed | 300m/min |
| Slitting Blade | Razor Blade Or Shear Blade | ||
| Highlight | 1400mm Width Paper Roll Slitter,Magnetic Powder Brake Paper Roll Slitter,0.8Mpa Paper Slitting Machine |
||
Product Description
Maximize Efficiency with Paper Roll Slitter High Speed Sheet Cutting with Magnetic Powder Clutch and Brake C1400B Model 300m/min Slitting Speed
Key Features
| Rewinding Tension Control | Magnetic powder clutch |
| Model | C1400B |
| Unwinding Tension Control | Magnetic powder brake |
| Max. Slitting Speed | 300m/min |
| Slitting Blade | Razor blade or shear blade |
Technical Specifications
| Model Number | C1400B |
| Machine Dimensions | 12000 * 2300 * 2400mm |
| Weight | 11000kg |
| Maximum Speed | 300 cuts/min |
| Power Requirements | 380V, 28kW, 3 Phase |
| Cutting Paper Weight Range | 50-550g |
| Cutting Accuracy | ±0.3mm (length ≤1000mm), ±0.05% (length >1000mm) |
| Cutting Length Range | 400-1450mm |
| Maximum Scroll Diameter | 1800mm (71") |
| Maximum Paper Cutting Width | 1400mm |
| Slitting Format | 2 sheet |
| Maximum Material Cutting Speed | 300m/min |
| Air Pressure Requirements | 0.8Mpa |
| Packaging | 40HQ Container |
Performance Notes
- Actual yield depends on paper texture, weight, cutting length, volume, operator skill, and operational conditions.
- Maximum load capacity: For single card paper up to 500gsm, material density and quality must be considered.
