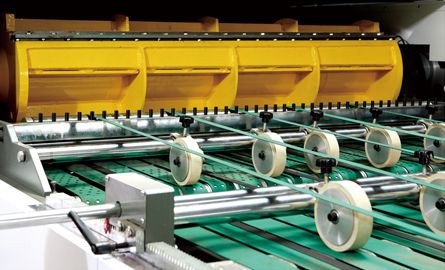

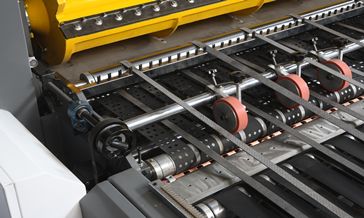

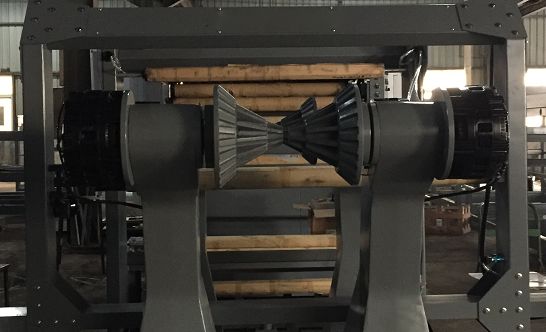

Chemical Resistant Paper Slitting Rewinding Machine 380V 28kW 3 Phase Anti Curl
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | C1400B |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Coating | Uncoated | Compatible Printing | Offset Printing,Digital Printing,Inkjet Printing,Gravure Printing,Laser Printing |
|---|---|---|---|
| Use | Tracing Paper,Gift Wrapping Paper,Packaging Etc,Cup,Laser Printer Etc | Feature | Anti-Curl,Moisture Proof,Waterproof,Antistatic,Softness And Durability |
| Pulping Type | Chemical-Mechanical Pulp,Chemical Pulp,Mechanical Pulp | Pulp Material | Wood Pulp,Mixed Pulp,Bamboo Pulp |
| Paper Type | Craft Paper,Synthetic Paper,Specialty Paper,Duplex Board,Writing Paper | Coating Side | Single Side,Double Side |
| Coating Material | Kaolinite,Silicone,Wax | Usage | Shoes,Leather,CAD Plotter,printing,Hardware Packing |
| Type | Other,label Paper,Carbonless Paper,Professional Specialty Paper | Name | Different Size Gift Wrapping Paper/ Seasonal Wrapping Paper Roll,CAD Drawing Paper,Coloured Traceable Paper,2017 Hot Sale Wood Pulp 80gsm Plotter Paper Roll |
| Highlight | 3 Phase Paper Slitting Rewinding Machine,380V Paper Slitting Rewinding Machine,Anti Curl thermal roll slitting machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description

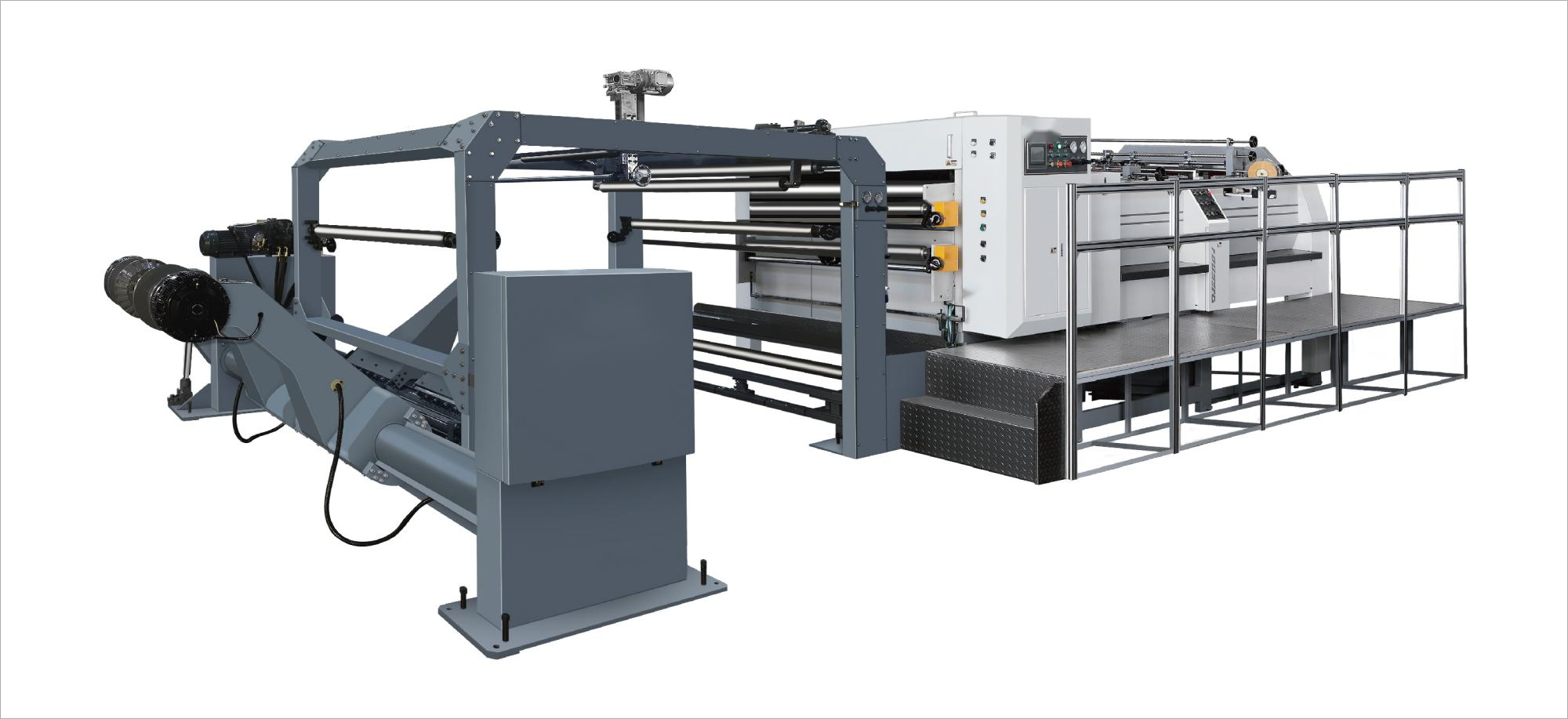

TurboSlit C1400B Dual-Roll Precision Cutter
Product Overview
The TurboSlit C1400B is a dual-roll precision cutter designed for high-speed sheet cutting applications across various paper types and industries.
Technical Specifications
| Model Number | C1400B |
|---|---|
| Machine Dimensions | 12000 × 2300 × 2400mm |
| Weight | 11000kg |
| Maximum Speed | 300 cuts/min |
| Power Requirements | 380V, 28kW, 3 Phase |
| Cutting Paper Weight Range | 50-550g |
| Cutting Accuracy | ±0.3mm (length ≤1000mm), ±0.05% (length >1000mm) |
| Cutting Length Range | 400-1450mm |
| Maximum Scroll Diameter | 1800mm (71") |
| Maximum Paper Cutting Width | 1400mm |
| Slitting Format | 2 sheet |
| Maximum Material Cutting Speed | 300m/min |
| Air Pressure Requirements | 0.8Mpa |
| Packaging | 40HQ Container |
Material Compatibility
| Coating | Uncoated |
|---|---|
| Pulp Style | Virgin, Recycled |
| Compatible Printing | Offset Printing, Digital Printing, Inkjet Printing, Gravure Printing, Laser Printing |
| Paper Types | Craft Paper, Synthetic Paper, Specialty Paper, Duplex Board, Writing Paper |
| Pulp Materials | Wood Pulp, Mixed Pulp, Bamboo Pulp |
Key Features
- High-speed cutting capability (300 cuts/min)
- Precision cutting accuracy (±0.3mm)
- Wide material compatibility (50-550g paper weight)
- Dual-roll slitting format
- Handles large scroll diameters up to 1800mm
- Moisture proof and waterproof materials
- Anti-curl and antistatic properties
Applications
- Tracing paper production
- Gift wrapping paper manufacturing
- Packaging material processing
- CAD plotter paper cutting
- Specialty paper conversion
- Label paper production
