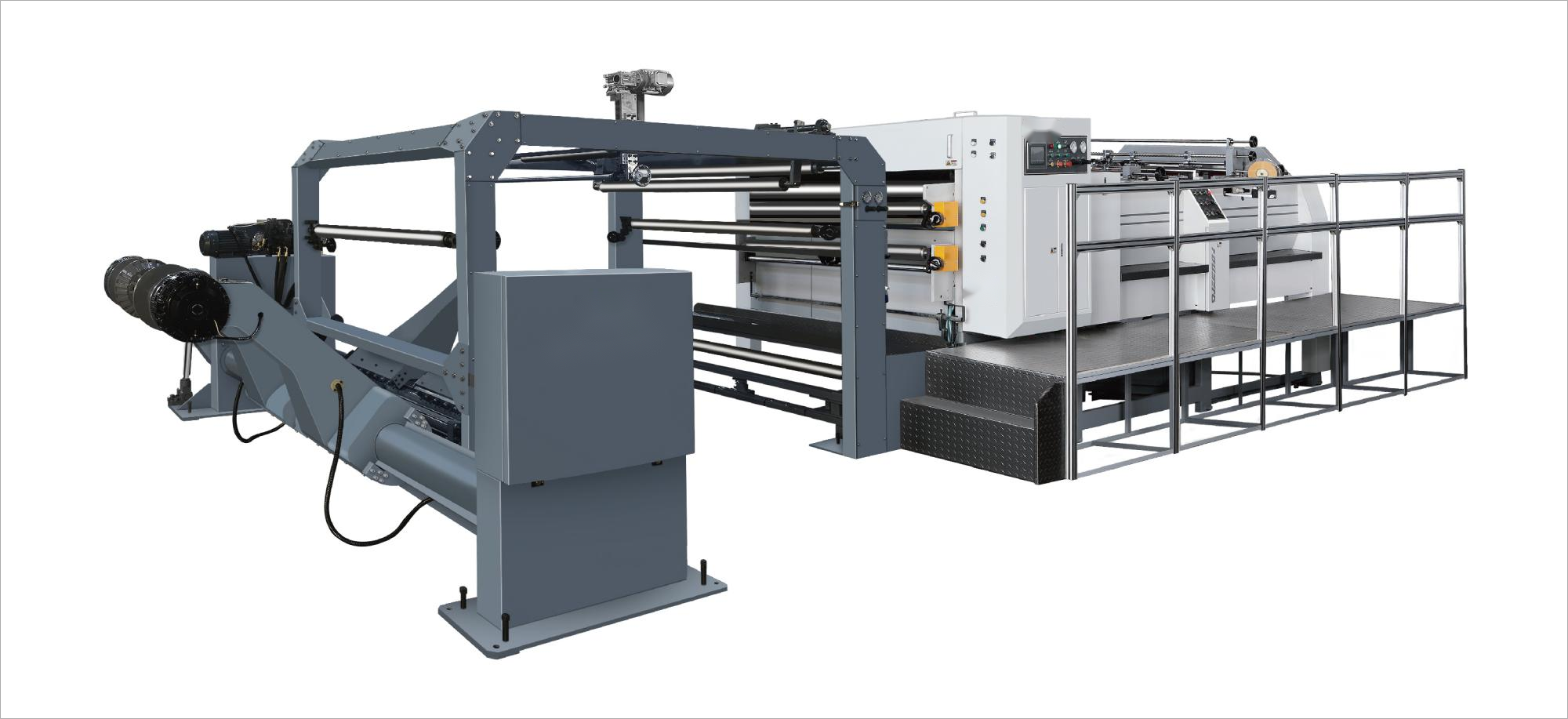

Compact and User-Friendly Paper Roll Slitter for Easy Operation
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | C1400B |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model | C1400B | Operator Interface | Touch Screen |
|---|---|---|---|
| Unwinding Method | Shaftless | Max Cutting Speed | 300m/min |
| Highlight | 300m/Min Paper Roll Slitter,380V Paper Roll Slitter,3 Phase Paper Slitting Machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Compact and User-Friendly Paper Roll Slitter for Easy Operation
This high-speed sheet cutter C1400B-2 Rolls web cutting machine incorporates advanced techniques from Taiwan and Germany, combined with over 10 years of experience in producing sheet cutter machines. The servo motor transmission ensures fast and stable paper cutting performance.
Key Features
- Germany precision bearings and cutting knives ensure high cutting accuracy
- Touch screen computer interface for simple operation
- Reasonable structure design prevents curling and ensures smooth paper flow
- Popular in paper making and printing industries for improved efficiency
Technical Specifications
| Model Number | C1400B |
|---|---|
| Machine Dimensions | 12000 × 2300 × 2400mm |
| Weight | 11000kg |
| Maximum Speed | 300 cuts/min |
| Power Requirements | 380V, 28kW, 3 Phase |
| Cutting Paper Weight Range | 50-550g |
| Cutting Accuracy | ±0.3mm (length ≤1000mm), ±0.05% (length >1000mm) |
| Cutting Length Range | 400-1450mm |
| Maximum Scroll Diameter | 1800mm (71") |
| Maximum Paper Cutting Width | 1400mm |
| Slitting Format | 2 sheet |
| Maximum Material Cutting Speed | 300m/min |
| Air Pressure Requirements | 0.8Mpa |
| Packaging | 40HQ Container |
Note: Actual yield depends on paper texture, weight, cutting length, volume, operator skill, and operational conditions. Maximum load capacity for single card paper up to 500gsm (material density and quality must be considered).
Function:
|
Curly Device
The curly device is positioned before the slitting device to eliminate roll curl or fold, ensuring paper roll tension stability. The paper roll first passes through guide rollers into the deconvolution device. |
|
|
The new Anti curvature device by motor
Effectively remove the curl of the roll to make the paper more flat, more conducive the paper roll tension stability . |
|
|
Adjust The Angle Automatically (paper aligning system )
The precision of the stepper motor is controlled by the length of the cut precision screw adjustment the inclination of the knife group, to effectively ensure the straight angle of the edge of the cut sheer ,reducing waste time manually adjust the angle of error rate and adjustment . |
|
|
Squareness adjustment system(Auto Prismatic adjustment system for paper):
Adjust squareness of paper, our engineer will fix it by once, and operator no need to readjust. |
|
|
Slitting knife
Three sets of slitting knife is used to trim and middle slitting. |
|
|
Automatic paper jam stop:
Have sensor to give signals to the system if there are any paper jam occur at conveyor, and the machine will stop immediately to save the papers. |
|
|
Automatic marking machine:
With precise count after insert marking, operators only need to input on the man-machine interface to after the number of paper, can be in accordance with the Settings to marking the quantity of paper |
|
|
Auto-EPC(Edge Paper Control) Precision sensing nozzle which easily available and sensitive
Fast detects various web lines for EPC system. |
|
