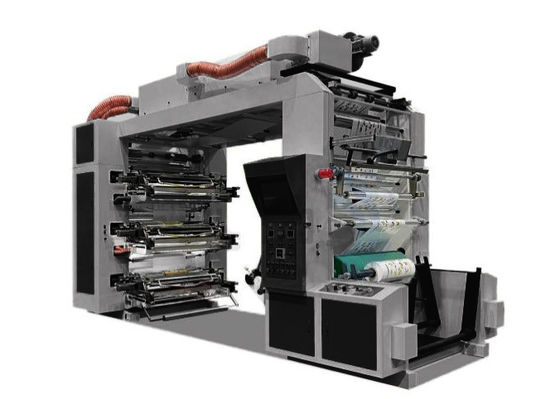

6 Color Automatic Flexographic Printing Equipment For Paper And Label Printing

  • 6 Color Automatic Flexographic Printing Equipment For Paper And Label Printing
Place of Origin CHINA
Brand Name FINTEECH
Certification CE
Model Number 1600mm
Minimum Order Quantity 1set
Packaging Details wooden case
Delivery Time 20-30 days
Payment Terms TT/LC
Supply Ability 10 sets per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Keywords Printing Slotting Die-cutting Machine Usage Paper Printer, Label Printer
Color Customer's Request Applicable Industries Printing Shops
Printing Type Letterpress Printing Feeding Method Chain Wheel Feeding
Highlight

6 Color Flexographic Printing Equipment

,

Automatic Flexographic Printing Equipment

,

Paper Digital Flexo Printing Machine
Leave a Message
Product Description
6-Color Automatic Flexo Printing Equipment for Paper and Label Printing
Revolutionize your printing process with our high-performance flexo printing machine, designed for precision and efficiency in industrial printing applications.
Key Attributes
Attribute Value
Keywords Printing, Slotting, Die-cutting Machine
Usage Paper Printer, Label Printer
Color Customizable to customer's request
Applicable Industries Printing Shops
Printing Type Letterpress Printing
Feeding Method Chain wheel feeding
Machine Composition
  • Single unwind Unit
  • EPC (Edge Position Control)
  • Auto tension controller
  • Printing Unit
  • Drying unit
  • Single rewind unit
Function Description
  • Single unwind system
  • Advanced auto tension controller
  • Ultrasonic Web Guide system for precise alignment
  • Single Doctor Blade with ink pump
  • Drying between each color station
  • Efficient drying unit
  • Auto tension controller for rewinding
  • Single Rewinder system
Range of Compatible Substrates
  • LDPE/LLDPE: 12~150 microns
  • HDPE: 10~150 microns
  • BOPP: 10~60 microns
  • CPP: 20~80 microns
  • PET: 10~50 microns
  • Nylon: 12~40 microns
  • Paper: 20~300gsm
Technical Specifications
Specification Value
Number of Printing Decks 6 (configurable as 6+0, 5+1, 4+2, 3+3)
Max. Web Width 1650mm
Max Printing Width 1560mm
Max. Printing Length (Repeat) 300mm-1300mm
Max. Unwind/Rewind Diameter Ф1200mm
Max. Mechanical Speed 120m/min
Max. Printing Speed 100m/min
Drive Type Belt drive
Plate Thickness Photo polymer plate 1.7mm (or as specified)
Adhesive Tape Thickness 0.38mm or 0.5mm
Ink Compatibility Water base ink or solvent ink
Electrical Supply 380V, 50Hz, 3ph (or as specified)
Heat Source Electrical elements or gas drying
Registration Precision Crosswise: ±0.25mm; Lengthwise: ±0.25mm
Tension Range 2-500g
Drying Unit Oven Max Temperature 80℃ (at room temperature 20℃)
Heating Method Electric heating
Dimensions Refer to technical drawings
Actual printing speeds depend on material type, cylinder repeat length, ink/solvent selection, quality requirements, and solvent retention levels.
