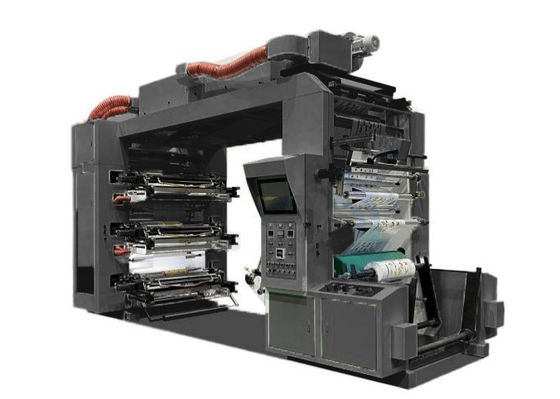

0.5mm Thickness Corrugated Flexo Printing Machine 120m/Min Electric Heating
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | 1400mm |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Feeding System | Automatic | Warranty | 1 Year |
|---|---|---|---|
| Automatic Grade | Automatic | Material | Steel |
| Computerized | Semi-Automatic | ||
| Highlight | 0.5mm Thickness Corrugated Flexo Printing Machine,120m/Min Corrugated Flexo Printing Machine,Electric Heating Inline Flexo Printing Machine |
||
Product Description
6 Color 1400mm Stack Type Flexo Printing Machine
Key Specifications
| Attribute | Value |
|---|---|
| Feeding System | Automatic |
| Warranty | 1 Year |
| Automatic Grade | Automatic |
| Material | Steel |
| Computerized | Semi-Automatic |
Machine Configuration
- Single Unwind Unit → EPC → Auto Tension Controller → Printing Unit → Drying Unit → Auto Tension Controller → Single Rewind Unit
Functional Components
- Single unwind system
- Auto tension controller
- Ultrasonic Web Guide system
- Single Doctor Blade with ink pump
- Drying between each color
- Drying unit
- Auto tension controller
- Single Rewinder
Compatible Substrates
- LDPE(LLDPE): 12~150 microns
- HDPE: 10~150 microns
- BOPP: 10~60 microns
- CPP: 20~80 microns
- PET: 10~50 microns
- Nylon: 12~40 microns
- Paper: 20~300gsm
Technical Specifications
| Specification | Details |
|---|---|
| Number of Printing Decks | 6 (6 +0, 5 +1, 4 +2, 3 +3) |
| Max. Web Width | 1450mm |
| Max. Printing Length (Repeat) | 300mm-1300mm |
| Max. Unwind/Rewind Diameter | Ф1200mm |
| Max. Mechanical Speed | 120m/min |
| Max. Printing Speed | 100m/min (dependent on material, printing conditions, and quality requirements) |
| Drive Type | Belt drive |
| Plate Thickness | Photo polymer plate 1.7mm or to be specified |
| Adhesive Tape Thickness | 0.38mm or 0.5mm |
| Ink Compatibility | Water base ink or solvent ink |
| Electrical Supply | Voltage 380v, 50 hz, 3ph or to be specified |
| Heat Source | Electrical elements or gas drying |
| Registration Precision | Crosswise: ±0.25mm; Lengthwise: ±0.25mm |
| Tension Range | 2-500g |
| Drying Unit Oven Maximum Temperature | Max.80℃ (room temperature 20℃) |
| Heating Method | Electric heating |
Note: The effective printing speeds will depend on following printing conditions:
- Type of material
- Repeat of printing cylinders
- Inks, lacquers and solvents
- Required printing quality
- Level of solvent retention
Machine Diagram
