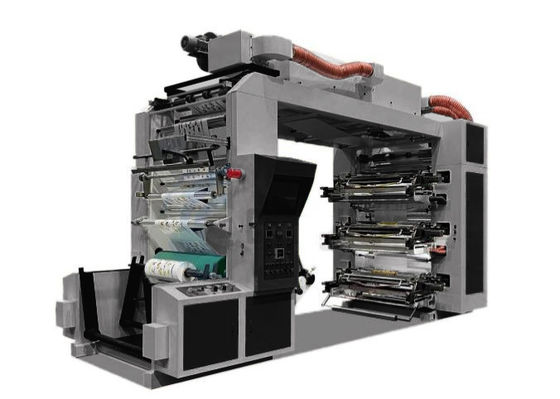

Automatic 1400mm 6 Colour Flexo Printing Machine Steel 380V 50hz 3ph Flexographic Printing Press

  • Automatic 1400mm 6 Colour Flexo Printing Machine Steel 380V 50hz 3ph Flexographic Printing Press
Place of Origin CHINA
Brand Name FINTEECH
Certification CE
Model Number 1400mm
Minimum Order Quantity 1set
Packaging Details wooden case
Delivery Time 20-30 days
Payment Terms TT/LC
Supply Ability 10 sets per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Feeding System Automatic Warranty 1 Year
Automatic Grade Automatic Material Steel
Computerized Semi-Automatic
Highlight

Automatic 6 Colour Flexo Printing Machine

,

1400mm 6 Colour Flexo Printing Machine

,

Steel Flexographic Printing Press
Leave a Message
Product Description
6 Color 1400mm Stack Type Flexo Printing Machine
Product Overview

Stack Type Flexo Printing Machine with 1400mm width and 6 color printing capability, designed for high-efficiency industrial printing applications.

Key Specifications
Attribute Value
Feeding System Automatic
Warranty 1 Year
Automatic Grade Automatic
Material Steel
Computerized Semi-Automatic
Machine Configuration
  1. Single Unwind Unit → EPC → Auto Tension Controller → Printing Unit → Drying Unit → Auto Tension Controller → Single Rewind Unit
Functional Components
  • Single unwind system
  • Auto tension controller
  • Ultrasonic Web Guide system
  • Single Doctor Blade with ink pump
  • Drying between each color
  • Drying unit
  • Auto tension controller
  • Single Rewinder
Compatible Substrates
  • LDPE(LLDPE): 12~150 microns
  • HDPE: 10~150 microns
  • BOPP: 10~60 microns
  • CPP: 20~80 microns
  • PET: 10~50 microns
  • Nylon: 12~40 microns
  • Paper: 20~300gsm
Technical Specifications
Specification Details
Number of Printing Decks 6 (6 +0, 5 +1, 4 +2, 3 +3)
Max. Web Width 1450mm
Max. Printing Length (Repeat) 300mm-1300mm
Max. Unwind/Rewind Diameter Ф1200mm
Max. Mechanical Speed 120m/min
Max. Printing Speed 100m/min (dependent on material, printing conditions, and quality requirements)
Drive Type Belt drive
Plate Thickness Photo polymer plate 1.7mm or to be specified
Adhesive Tape Thickness 0.38mm or 0.5mm
Ink Compatibility Water base ink or solvent ink
Electrical Supply Voltage 380v, 50 hz, 3ph or to be specified
Heat Source Electrical elements or gas drying
Registration Precision Crosswise: ±0.25mm; Lengthwise: ±0.25mm
Tension Range 2-500g
Drying Unit Oven Maximum Temperature Max.80℃ (room temperature 20℃)
Heating Method Electric heating
Note: The effective printing speeds will depend on following printing conditions:
  • Type of material
  • Repeat of printing cylinders
  • Inks, lacquers and solvents
  • Required printing quality
  • Level of solvent retention
Machine Diagram
Automatic 1400mm 6 Colour Flexo Printing Machine Steel 380V 50hz 3ph Flexographic Printing Press 0
