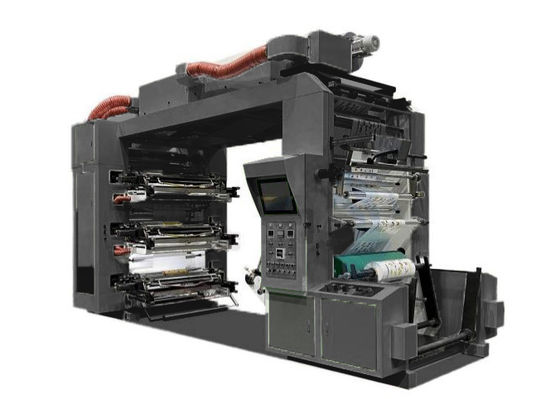

1600mm Width Flexo Label Printing Machine 120m/Min 380v 50 Hz 3ph With Belt Drive
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | 1600mm |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Inverter | Schneider | Control | Servo Motor |
|---|---|---|---|
| Material Type | Drum Rolling Type | Usage | Label Printer |
| Machine Speed | 120m/min | ||
| Highlight | 1600mm Width Flexo Label Printing Machine,380v Flexo Label Printing Machine,3ph Flexo Printing Equipment |
||
Product Description
Stack Type Flexo Printing Machine 1600mm Width 6 Color
Product Specifications
| Attribute | Value |
|---|---|
| Inverter | Schneider |
| Control | Servo Motor |
| Material Type | Drum Rolling Type |
| Usage | Label Printer |
| Machine Speed | 120m/min |
Machine Composition
Single Unwind Unit → EPC → Auto Tension Controller → Printing Unit → Drying Unit → Auto Tension Controller → Single Rewind Unit
Key Features
- Single unwind system
- Auto tension controller
- Ultrasonic Web Guide system
- Single Doctor Blade with ink pump
- Drying between each color
- Drying unit
- Auto tension controller
- Single Rewinder
Compatible Substrates
LDPE(LLDPE):
12~150 microns
HDPE:
10~150 microns
BOPP:
10~60 microns
CPP:
20~80 microns
PET:
10~50 microns
Nylon:
12~40 microns
Paper:
20~300gsm
Technical Specifications
| Number of Printing Decks | 6 (6 +0, 5 +1, 4 +2, 3 +3) |
| Max. Web Width | 1650mm |
| Max Printing Width | 1560mm |
| Max. Printing Length (Repeat) | 300mm-1300mm |
| Max. Unwind / Rewind Dia | Ф1200mm |
| Max. Mechanical Speed | 120m/min |
| Max. Printing Speed | 100m/min |
| Drive Type | Belt drive |
| Plate Thickness | Photo polymer plate 1.7mm or to be specified |
| Adhesive Tape Thickness | 0.38mm or 0.5mm |
| Ink | Water base ink or solvent ink |
| Electrical Supply | Voltage 380v, 50 hz, 3ph or to be specified |
| Heat Source | Electrical elements or gas drying |
| Registration Precision | Crosswise: ±0.25mm; Lengthwise: ±0.25mm |
| Tension Range | 2-500g |
| Drying Unit Oven Max Temperature | Max.80℃ (room temperature 20℃) |
| Heating Method | Electric heating |
| Dimension | (see drawing) |
Note: The effective printing speeds will depend on following printing conditions: type of material; repeat of printing cylinders; inks, lacquers and solvents; required printing quality; level of solvent retention.
