Multi Functional Fully Automatic Lamination Machine Pre Coating Safety Eco Friendly
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | MD-850A/1050A/1200A/1200A-L |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Safety System | Emergency Stop | Packaging Type | Case |
|---|---|---|---|
| Feeding System | Automatic Feeder | Warranty | 1 Year |
| Highlight | Multi Functional Fully Automatic Lamination Machine,Pre Coating Fully Automatic Lamination Machine,Pre Coating Film Laminating Machine |
||
Product Description

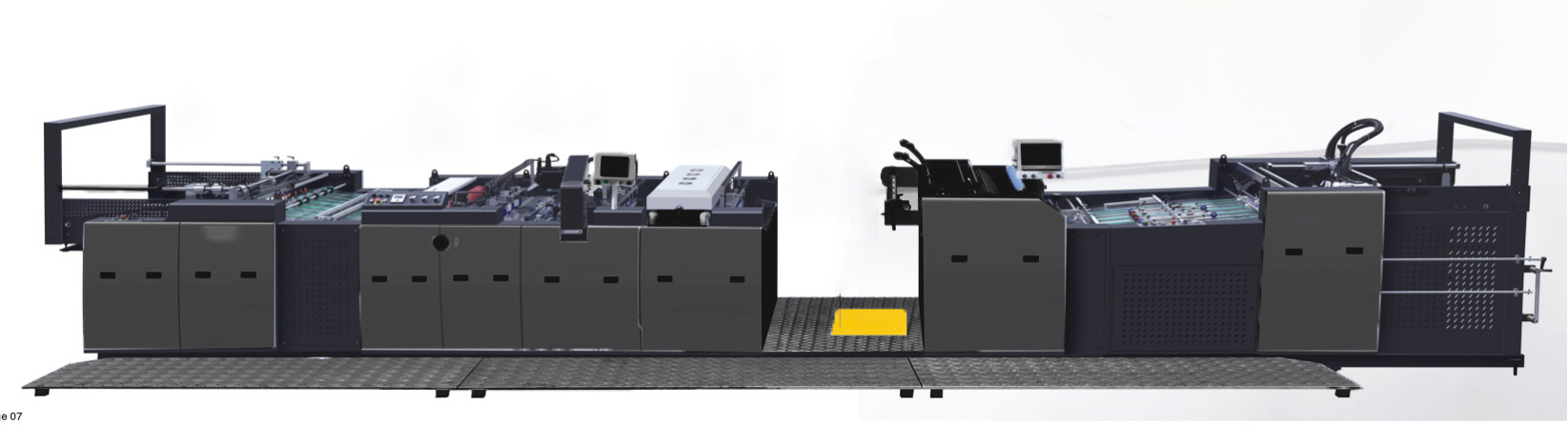

Fully Automatic Multi-functional High-speed Pre-coating Film Laminating Machine
Product Attributes
| Safety System | Emergency Stop |
|---|---|
| Packaging Type | Case |
| Feeding System | Automatic Feeder |
| Warranty | 1 year |
Product Features
Any combination of powerful multi-functional configuration can solve various problems of laminating process!
- Pre-stacker mechanism to realize non-stop paper feeding and receiving
- Adopt high-speed offset press feeder (12000 sheets/hour) to ensure fast and stable operation
- High degree of intelligence, the whole machine is controlled by PLC and man-machine, and each part is frequency-converted and servo-linked to ensure speed synchronization and easy for one person to operate.
- Electromagnetic heating system: the temperature rises and falls quickly, the heating roller adopts an electromagnetic heating system and a built-in oil heating system to make sure the temperature is uniform.
- Driven by the synchronous belt, the equipment is more stable and the accuracy is better.
- The equipment adopts servo edging, which has higher accuracy and more stability
- The main pressure shaft is combined with electric pressure
- Automatic lifting film, reducing labor intensity and safety
- The main roller adopts double chain, no jump, high running stability, it is not easy to stretch after a long time, which affects the accuracy!
Optional Features
- Double-sided laminating (both sides are laminated at the same time)
- Dust removal (remove surface dust and surface preheating, enhance surface brightness/mattity/and fit)
- Double pressing (Enhanced surface compaction and fastness twice)
- UV dryer (Lamination has strong fastness, especially to solve the problem of embossing, embossing and embossing of the large solid base film)
- Chain knife (cutting of tailless film and high toughness film such as PET and aluminum foil film)
- Hot knife (high speed) (Slitting of high toughness films such as tailless film and PET, aluminum foil film)
- Coding (online coding)
- Corona device (to solve the problem of low corona value, silk screen, paste box, hot stamping, etc.)
- Static elimination device (excessive static electricity, large paper adhesion)
- Embossing system: various embossing reflects the aesthetics of surface decoration!
Technical Parameters
| Item | Unit | MD-850A | MD-1050A | MD-1200A | MD-1200A-L |
|---|---|---|---|---|---|
| Max laminating paper | mm | 850*1000mm | 1050*1000mm | 1200*1000mm | 1200*1450mm |
| Min laminating paper | mm | 270*270mm | 290*290mm | 300*300mm | 340*340mm |
| Paper weight | g/㎡ | 100-500g/㎡ | 100-500g/㎡ | 100-500g/㎡ | 100-500g/㎡ |
| Overlap error | mm | ±2mm | ±2mm | ±2mm | ±2mm |
| Laminating speed | m/min | oneside:0~80m/min Double side:0~60m/min(optional) |
oneside:0~80m/min Double side:0~60m/min(optional) |
oneside:0~80m/min Double side:0~60m/min(optional) |
oneside:0~80m/min Double side:0~60m/min(optional) |
| Power | kw | 28kw | 30kw | 30kw | 30kw |
| Working power | KW/H | 18KW | 20KW | 20KW | 20KW |
| Paper feed height | mm | 1150 | 1150 | 1150 | 1150 |
| Paper stack height(including tray) | mm | 1050 | 1050 | 1050 | 1050 |
| Overall Dimensions | mm | 10500*1800*2000mm | 10500*1800*2000mm | 10500*2000*2000mm | 11500*2200*2000mm |
| Total weight | kg | 10500kg | 11500kg | 12500kg | 13500kg |
Applications
This machine is a high-speed pre-coating model launched by our company, which is suitable for posters, books, information albums, posters, color boxes, color box packaging, handbags, etc.
Machine Structure
