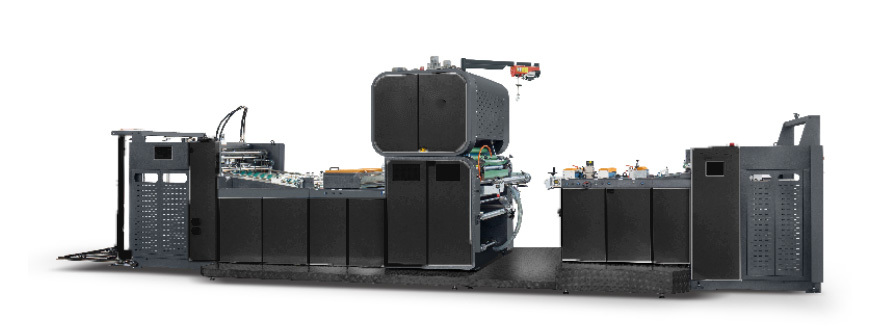

60KW Automatic Lamination Machine 100m/Min Automatic Flute Laminator Easy Maintenance
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | YS -S108 |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Pre Stacker | Yes | Two Times Lamination | Yes |
|---|---|---|---|
| Auto Feeding | Yes | Engraving Roller | Yes |
| Loading | In Factory | Name Card | Application |
| Highlight | 60KW Automatic Lamination Machine,100m/Min Automatic Lamination Machine,60KW Automatic Flute Laminator |
||
Product Description
Professional Film Lamination Made Easy with High Speed Automatic Lamination Machine
Key Features
| Attribute | Value |
|---|---|
| Pre Stacker | Yes |
| Two Times Lamination | Yes |
| Auto Feeding | Yes |
| Engraving Roller | Yes |
| Loading | in factory |
| Name Card Application | Yes |
Product Description
This high-speed automatic film lamination machine delivers professional-grade results with exceptional speed, quality, and stability. Designed for various printed paper materials, it enhances surface quality after printing processes and offers customizable configurations to meet specific user requirements.
Technical Specifications
| Model | YS-S108-S | YS-S108-M | YS-S108-L |
|---|---|---|---|
| Max sheet size | 1080×1000mm | 1080×1200mm | 1080×1450mm |
| Min sheet size | 300×350mm | 300×350mm | 300×350mm |
| Paper thickness | 80-500 g/㎡ | 80-500 g/㎡ | 80-500 g/㎡ |
| Speed | 20-100m/min | 20-100m/min | 20-100m/min |
| Machine total Power | 60 KW | 60 KW | 60 KW |
| Machine size | 11800×2370×3000mm | 11800×2370×3000mm | 12300×2370×3000mm |
| Weight | 10000 KG | 10000 KG | 10500 KG |
Standard Configuration
- Round Knife
- Double power Removing roller
- Non-stop feeding system
- Automatic collecting final product
- Feeding with stacking automatically
Optional Features
- Chain knife cutting (YS-SL108S/M/L)
- Hot knife cutting (YS-SR108R/M)
- Full-page direct push type
- Brush powder removing system
Machine Details
1. Feeding Part: Powerful four-feed four -suction,stable paper feeding.Non-stop feeding paper. Shaftless feeder paper feeding,servo control system,flexible and convenient adjustment (standard configuration for 1350-1620 models),full page direct push type: reducing labor(optional).
1. Gluing and Heating part through touch screen controlling:One Key for starting, with simple operation and hanging film device, which can be operated by one person, help user to save more labor cost. Increase more profit.
Application Examples
Workshop Installation
