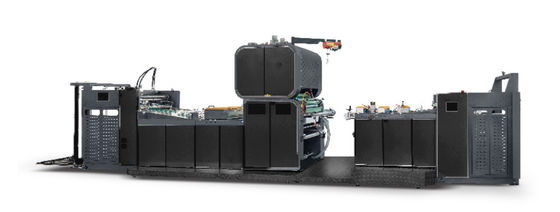

High Speed Automatic Lamination Machine with Auto Feeding Lamination for Professional Film Coating

  • High Speed Automatic Lamination Machine with Auto Feeding Lamination for Professional Film Coating
  • High Speed Automatic Lamination Machine with Auto Feeding Lamination for Professional Film Coating
Place of Origin CHINA
Brand Name FINTEECH
Certification CE
Model Number YS -S108
Minimum Order Quantity 1set
Packaging Details wooden case
Delivery Time 20-30 days
Payment Terms TT/LC
Supply Ability 10 sets per day
Product Details
Pre Stacker Yes Two Times Lamination Yes
Auto Feeding Yes Engraving Roller Yes
Loading In Factory Name Card Application
Highlight

60KW Automatic Lamination Machine

,

100m/Min Automatic Lamination Machine

,

60KW Automatic Flute Laminator
Leave a Message
Product Description
Professional Film Lamination Made Easy with High Speed Automatic Lamination Machine
Machine Overview

This professional film lamination machine delivers high speed, exceptional quality, and reliable stability. Designed for various printed paper materials, it provides superior surface finishing after printing processes. The machine offers flexible configurations to meet specific user requirements.

Technical Specifications
Model YS-S108-S YS-S108-M YS-S108-L
Max Sheet Size 1080*1000mm 1080*1200mm 1080*1450mm
Min Sheet Size 300*350mm 300*350mm 300*350mm
Paper Thickness 80-500 g/㎡ 80-500 g/㎡ 80-500 g/㎡
Speed 20-100m/min 20-100m/min 20-100m/min
Total Power 60 KW 60 KW 60 KW
Machine Size 11800*2370*3000mm 11800*2370*3000mm 12300*2370*3000mm
Weight 10000 KG 10000 KG 10500 KG
Standard Configuration
  • Round Knife Slitting (Standard)
  • Double Power Removing Roller
  • Non-stop Feeding System
  • Automatic Final Product Collection
  • Automatic Stacking Feeding
  • Automatic Paper Correction (M & L Models)
Optional Features
Option Type YS-S108-S YS-S108-M YS-S108-L
Chain Knife Cutting YS-SL108S YS-SL108M YS-SL108L
Hot Knife Cutting YS-SR108R YS-SR108M YS-SR108L
Full-page Direct Push Type Available Available Available
Powder Removing System Brush Type Brush Type Bush Type

Compatible with various materials including OPP, PET, and PVC films.

Machine Details
High Speed Automatic Lamination Machine with Auto Feeding Lamination for Professional Film Coating 0
High Speed Automatic Lamination Machine with Auto Feeding Lamination for Professional Film Coating 1
Application Examples
High Speed Automatic Lamination Machine with Auto Feeding Lamination for Professional Film Coating 2
Workshop Environment
High Speed Automatic Lamination Machine with Auto Feeding Lamination for Professional Film Coating 3
High Speed Automatic Lamination Machine with Auto Feeding Lamination for Professional Film Coating 4
