500g/㎡ Thickness Automatic Paper Lamination Machine 300*350mm With Disc Knife Cutter

  • 500g/㎡ Thickness Automatic Paper Lamination Machine 300*350mm With Disc Knife Cutter
Place of Origin CHINA
Brand Name FINTEECH
Certification CE
Model Number YS -S108
Minimum Order Quantity 1set
Packaging Details wooden case
Delivery Time 20-30 days
Payment Terms TT/LC
Supply Ability 10 sets per day
Product Details
Pre Stacker Yes Two Times Lamination Yes
Auto Feeding Yes Engraving Roller Yes
Loading In Factory Name Card Application
Highlight

500g/㎡ Thickness Automatic Paper Lamination Machine

,

Disc Knife Automatic Paper Lamination Machine

,

300*350mm Automatic Flute Laminating Machine
Leave a Message
Product Description

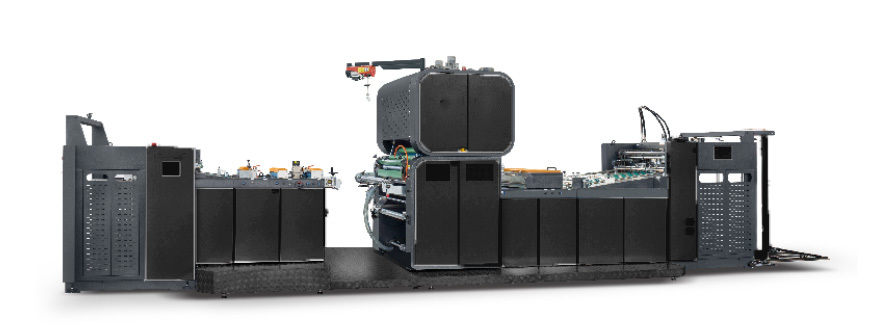

High Speed Film Lamination Machine (YS-S108 Series with Disc Knife Cutter)
Key Features
Attribute Value
Pre Stacker Yes
Two Times Lamination Yes
Auto Feeding Yes
Engraving Roller Yes
Loading In factory
Name Card Application Yes
Product Description

This professional high-speed film lamination machine delivers exceptional quality and stability for various printed paper materials. It provides superior surface finishing for printed products and offers customizable configurations to meet specific user requirements.

Technical Specifications
Model YS-S108-S YS-S108-M YS-S108-L
Max Sheet Size 1080*1000mm 1080*1200mm 1080*1450mm
Min Sheet Size 300*350mm 300*350mm 300*350mm
Paper Thickness 80-500 g/㎡ 80-500 g/㎡ 80-500 g/㎡
Speed 20-100m/min 20-100m/min 20-100m/min
Total Power 60 KW 60 KW 60 KW
Machine Size 11800*2370*3000mm 11800*2370*3000mm 12300*2370*3000mm
Weight 10000 KG 10000 KG 10500 KG
Standard Configuration
  • Round Knife cutting system
  • Double power removing roller
  • Non-stop feeding system
  • Automatic final product collection
  • Automatic stacking feeding
  • Automatic paper correction (M & L models)
Optional Features
  • Chain knife cutting system (YS-SL108 models)
  • Hot knife cutting system (YS-SR108 models)
  • Full-page direct push type
  • Brush powder removing system
Machine Details
500g/㎡ Thickness Automatic Paper Lamination Machine 300*350mm With Disc Knife Cutter 0
500g/㎡ Thickness Automatic Paper Lamination Machine 300*350mm With Disc Knife Cutter 1
Applications
500g/㎡ Thickness Automatic Paper Lamination Machine 300*350mm With Disc Knife Cutter 2
Workshop Environment
500g/㎡ Thickness Automatic Paper Lamination Machine 300*350mm With Disc Knife Cutter 3
500g/㎡ Thickness Automatic Paper Lamination Machine 300*350mm With Disc Knife Cutter 4
