Magazines Automatic Lamination Machine High Speed Film Lamination Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | YS -S108 |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Product Details
| Pre Stacker | Yes | Two Times Lamination | Yes |
|---|---|---|---|
| Auto Feeding | Yes | Engraving Roller | Yes |
| Loading | In Factory | Name Card | Application |
| Highlight | Magazines Film Lamination Machine,High Speed Film Lamination Machine,Magazines Automatic Lamination Machine |
||
Product Description

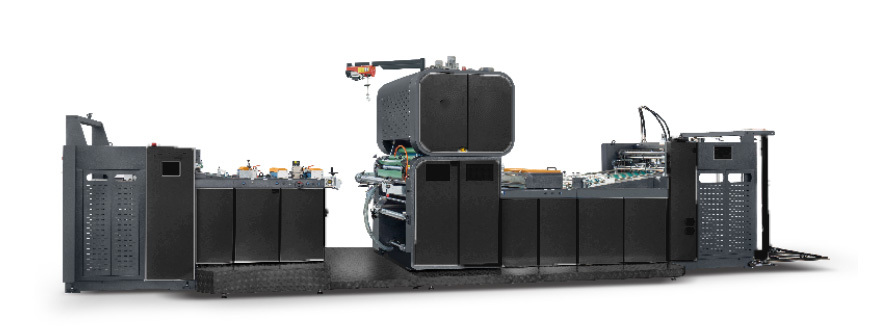

High Speed Film Lamination Machine (YS-SL108 Series with Chain Cutter)
Product Attributes
| Attribute | Value |
|---|---|
| Pre Stacker | Yes |
| Two Times Lamination | Yes |
| Auto Feeding | Yes |
| Engraving Roller | Yes |
| Loading | in factory |
| Name Card Application | Yes |
Product Description
This professional high-speed film lamination machine delivers exceptional quality and stability for post-printing surface processing. It accommodates various printed paper materials and offers multiple configuration options to meet specific user requirements.
Technical Parameters
| Model | YS-S108-S | YS-S108-M | YS-S108-L |
|---|---|---|---|
| Max sheet size | 1080×1000mm | 1080×1200mm | 1080×1450mm |
| Min sheet size | 300×350mm | 300×350mm | 300×350mm |
| Paper thickness | 80-500 g/㎡ | 80-500 g/㎡ | 80-500 g/㎡ |
| Speed | 20-100m/min | 20-100m/min | 20-100m/min |
| Machine total Power | 60 KW | 60 KW | 60 KW |
| Machine size | 11800×2370×3000mm | 11800×2370×3000mm | 12300×2370×3000mm |
| Weight | 10000 KG | 10000 KG | 10500 KG |
Standard Configuration
- Round Knife slitting (standard)
- Double power removing roller
- Non-stop feeding system
- Automatic final product collection
- Automatic stacking feeding system
- Automatic paper correction (M & L models)
Optional Features
- Chain knife cutting (YS-SL108S/M/L)
- Hot knife cutting (YS-SR108R/M/L)
- Full-page direct push type
- Brush powder removing system
Material Compatibility
Processes various materials including OPP, PET, and PVC films for superior surface finishing.
Film Lamination Machine Details
Machine Application Example
Workshop Operation
Workshop Overview
