Hot Melt Laminating Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | 1450L/1700L |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Product Details
| Color | Silver | Coating Thickness | 0.2-5mm |
|---|---|---|---|
| Voltage | 220V | Material | Metal |
| Max Speed | 15000m/hour | Product Type | UV Coating Machine |
| Power Source | Electric | ||
| Highlight | Auto Spot UV Machine,Cardboard Paper Spot UV Machine,Corrugated Sheet Spot Lamination Machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Spot UV Machine for Perfect Lamination of Cardboard Paper and Corrugated Sheet
Product Specifications
| Attribute | Value |
|---|---|
| Color | Silver |
| Coating Thickness | 0.2-5mm |
| Voltage | 220V |
| Material | Metal |
| Max Speed | 15000m/hour |
| Product Type | UV Coating Machine |
| Power Source | Electric |
Product Description

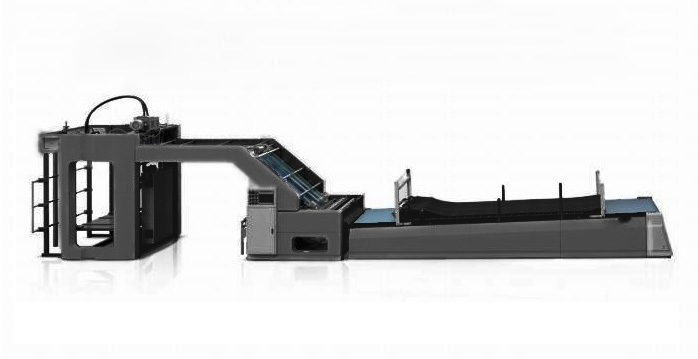

This High Speed Automatic Flute Laminator is designed for laminating printed cardboard paper with 3-ply or 5-ply corrugated sheets, primarily used in food and beverage packaging. The machine features:
- Chasing registration method with imported low-voltage components
- Advanced liquid sensor and motion control system
- Perfect integration of motion control and servo rectifying systems
- Multiple photoelectric induction sensors for precise paper positioning
- Automatic adjustment capability - simply input paper size for quick setup
Technical Specifications
| Model | 1450L | 1700L |
|---|---|---|
| Max sheet size | 1450×1450mm | 1700×1650mm |
| Min sheet size | 390×360mm | 390×360mm |
| Top sheet thickness | 125-600GSM | 150-600GSM |
| Bottom sheet thickness | 0.3-12mm A/B/C/E/F etc Corrugated paper, Industrial board | |
| Max speed (sheets/hour) | 15000sheet/hour | 15000sheet/hour |
| Fitting precision | ±1mm | ±1mm |
| Dimensions | 14.5×2.2×2.7M | 16.3×2.4×2.9M |
| Machine weight | 6500kgs | 7500kgs |
| Machine power | 24.5KW/380V | 26KW/380V |
| Bottom paper height | 400mm | 400mm |
| Top paper height | 1800mm | 1800mm |
