Automatic Corrugated Board Die Cutting Machine Carton Box Paper Die Cutter With Stripping Blanking

  • Automatic Corrugated Board Die Cutting Machine Carton Box Paper Die Cutter With Stripping Blanking
  • Automatic Corrugated Board Die Cutting Machine Carton Box Paper Die Cutter With Stripping Blanking
  • Automatic Corrugated Board Die Cutting Machine Carton Box Paper Die Cutter With Stripping Blanking
  • Automatic Corrugated Board Die Cutting Machine Carton Box Paper Die Cutter With Stripping Blanking
  • Automatic Corrugated Board Die Cutting Machine Carton Box Paper Die Cutter With Stripping Blanking
  • Automatic Corrugated Board Die Cutting Machine Carton Box Paper Die Cutter With Stripping Blanking
  • Automatic Corrugated Board Die Cutting Machine Carton Box Paper Die Cutter With Stripping Blanking
Place of Origin China
Brand Name FINTEECH
Certification CE
Model Number FB-HT1060SCE
Minimum Order Quantity 1 Set
Packaging Details Export wooden case packing with anti-rust treatment and waterproof film, loaded in 40ft container
Delivery Time 30-45 days after receiving deposit
Payment Terms T/T,L/C
Supply Ability 10 Sets per Month
Product Details
Model FB-HT1060SCE Maximum Sheet Size 1060 X 760mm
Minimum Sheet Size 350mm Maximum Cutting Size 1060 X 745mm
Gripper Margin 9~17mm Cutting Rule Height 23.8mm
Inner Chase Size 1080 X 770mm Stock Range Paper 80-2000g/m2 (0.1-2mm), Corrugated Board Up To 4mm
Die Cutting Accuracy +/-0.075mm Max. Die Cutting Force 300T
Max. Working Speed 8000 Sheets/hour Max. Pile Height At Feeder (Normal Mode) 1800mm
Max. Pile Height At Feeder (Non-stop Mode) 1520mm Max. Pile Height At Delivery 1580mm
Machine Dimensions (L X W X H) 10298 X 5857 X 2657mm Net Weight 22000kg
Main Motor Power 15KW Total Power Required 26KW
Air Requirement Pressure 0.6-0.7Mpa, Flow 0.37m3/min
Highlight

Automatic Stripping Blanking Die Cutting Machine

,

Auto Separation Sheet Insert

,

Corrugated Board Die Cutting Machine
Leave a Message
Product Description

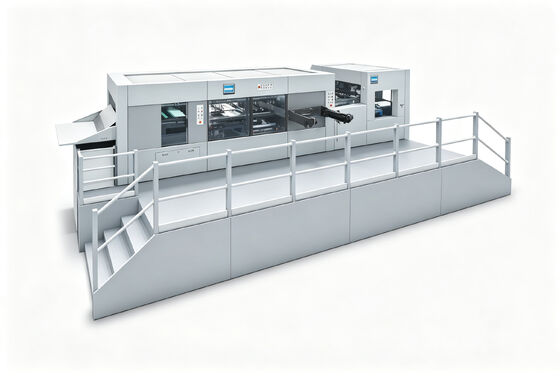

FB-HT1060SCE Automatic Die Cutting and Creasing Machine With Stripping and Blanking

FB-HT1060SCE is a high performance automatic die cutting and creasing machine with stripping and blanking functions. It combines 300T cutting force, 8000 sheets per hour working speed and automatic blanking station with separation sheet insert, offering complete die cutting, stripping and blanking production in one pass.

Key Features

  • Precision Feeder: Advanced feeding platform precisely and consistently handles a wide stock range from 90g/m2 thin paper to 1000g/m2 cardboard as well as micro flute corrugated board.

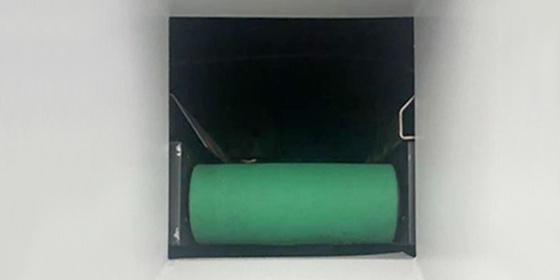

  • Ultrasonic Double Sheet Detector: Non-contact detection without touching the paper, scratch free, reliable and quick set up.
  • Mould Quick Locking Device: Center-line system with quick locking device saves make ready time.
  • Precision Plate Setting: 5mm hardened cutting plate or 4+1mm sandwich plate on top of 15mm precision synthetic supporting plate with +/-0.9mm micro adjustment.
  • High Performance Gripper Bar: Cutting edge gripper bars with large motion angle eccentric worm gear drive system run extremely smoothly.
  • Full Sheet Delivery: Full sheet delivery option ensures easy production planning by selecting final delivery style.

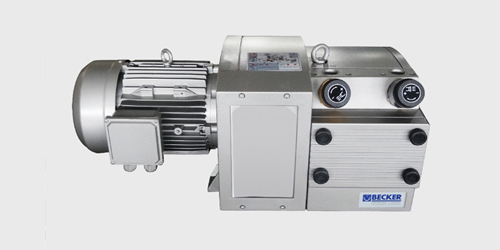

  • Germany Vacuum Pump: Germany Becker oil free blower and vacuum pump.

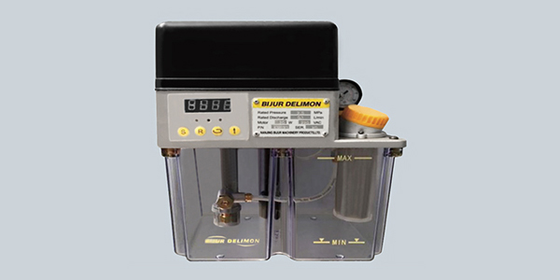

  • Auto Lubrication System: Concentrated auto lubrication system keeps driven parts working better.

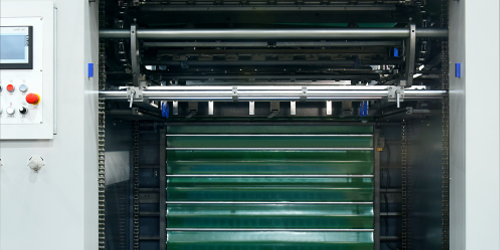

  • Auto Non-stop Collecting Device: Main collecting device and auto non-stop collecting device switch automatically without operation for higher efficiency.

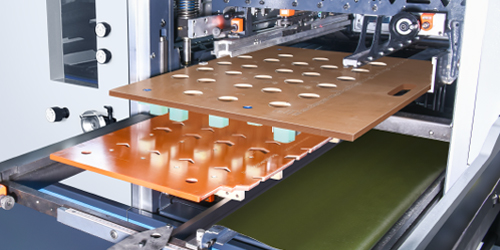

  • Advanced Tooling Lockup: Quick tooling set up system ensures fast job change over and high productivity at both stripping stations.

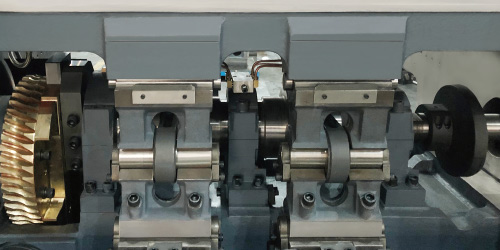

  • Variable Speed Worm Gear Drive: Worm gear and toggle mechanism allows large motion angle with minimum number and size of nicks at reasonable max. production speed.
  • Auto Separation Sheet Insert: Automatic separating sheet inserter coupled with electronic position sensor at blanking station.
  • Non-stop Sampling: Sampling function removes a sample sheet on the fly by one button only, easy for operating.

Technical Parameters

Model FB-HT1060SCE
Maximum Sheet Size 1060 x 760mm
Minimum Sheet Size 350mm
Maximum Cutting Size 1060 x 745mm
Gripper Margin 9~17mm
Cutting Rule Height 23.8mm
Inner Chase Size 1080 x 770mm
Stock Range Paper: 80 to 2000g/m2, 0.1-2mm; corrugated board up to 4mm
Die Cutting Accuracy +/-0.075mm
Max. Die Cutting Force 300T
Max. Working Speed 8000 sheets/hour
Max. Pile Height at Feeder (Normal Mode) 1800mm
Max. Pile Height at Feeder (Non-stop Mode) 1520mm
Max. Pile Height at Delivery 1580mm
Machine Dimensions (L x W x H) 10298 x 5857 x 2657mm
Net Weight of Machine 22000kg
Main Motor Power 15KW
Total Power Required 26KW
Air Requirement Pressure 0.6-0.7Mpa, Flow 0.37m3/min

Applications

Suitable for die cutting, creasing, stripping and blanking of paper boxes, cartons, corrugated board and packaging materials in the printing and packaging industry.
