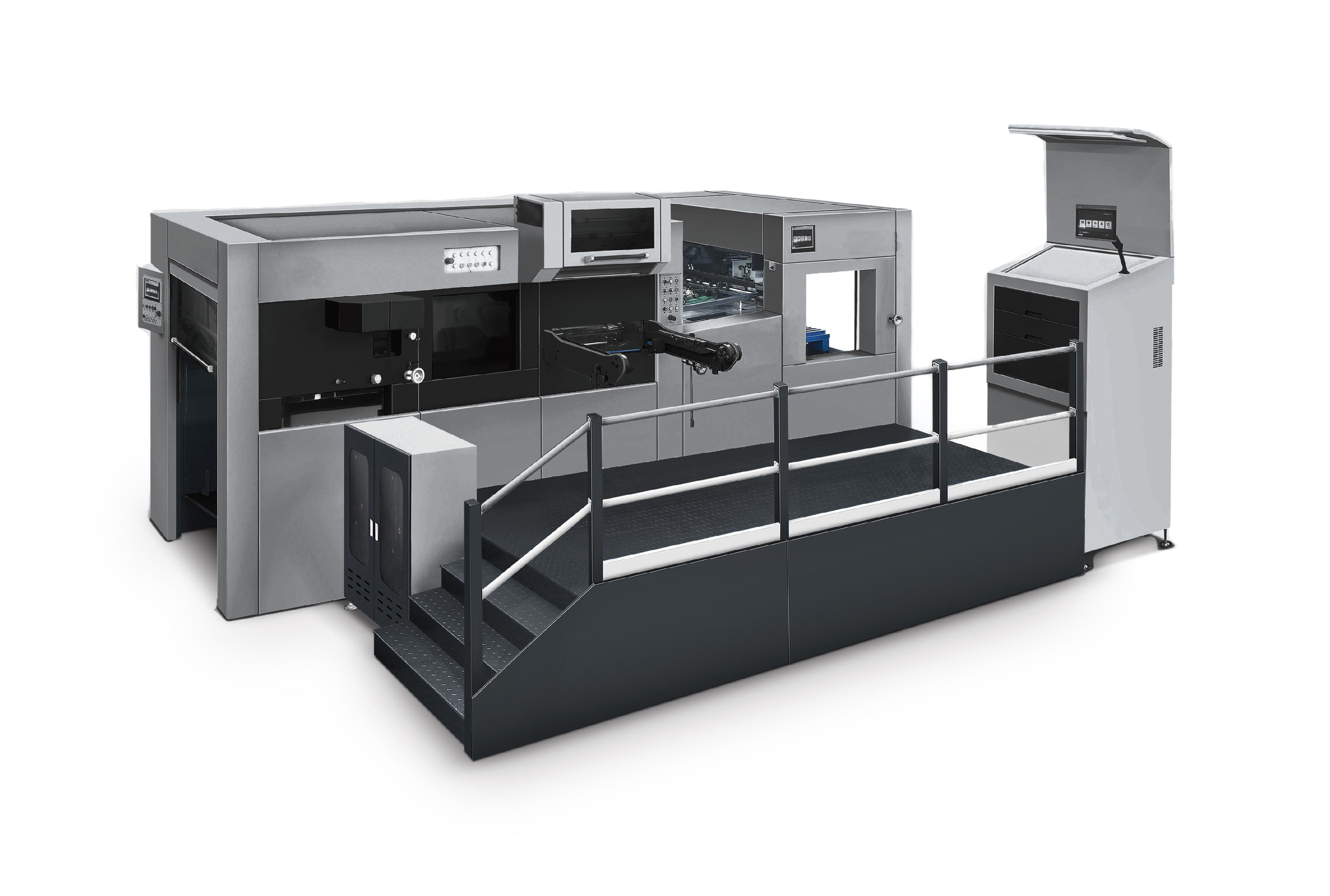

Quick Setup Automatic Die Cutting Machine 56KW 0.6Mpa Auto Die Cutter
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | FB-HT1060AT |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| After-sales Service Provided | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation,commissioning And Training,Online Support | Condition | New |
|---|---|---|---|
| Type | Die-cutting Machine,Paper Cutting Machine,Label Cutter,Other,Packing Machine | Computerized | Yes,Semi-Automatic, |
| Product Name | Automatic Roll Film/ Mylar/Aluminum Foil Die Cutting Machine,automatic Paper Die Cutting Punching Machine Price,BASCOCUT Multi Sheet Cutter,Automatic Rotary Die Cutting Machine For Corrugated Carton Box,small Size Die Cutting Machine | Function | Die Cutting,stamping,Automatic Die-cutting Machine In Electric Field,Manual Creasing,High Effieciency |
| Usage | Sticker,trademark,Food Forming Machine,label,heat Transfer Industry | Automatic Grade | Automatic,Semi-Automatic |
| Highlight | Quick Setup Automatic Die Cutting Machine,56KW Automatic Die Cutting Machine,0.6Mpa Auto Die Cutter |
||
Product Description
Automatic Cardboard Box Making Machine
Product Attributes
| After-sales service provided | Engineers available to service machinery overseas, Video technical support, Field installation, commissioning and training, Online support |
|---|---|
| Condition | New |
| Type | Die-cutting Machine, Paper Cutting Machine, Label cutter, Other, Packing Machine |
| Computerized | Yes, Semi-Automatic |
| Product name | Automatic Roll Film/Mylar/Aluminum Foil Die Cutting Machine, automatic paper die cutting punching machine price, BASCOCUT multi sheet cutter, Automatic rotary die cutting machine for corrugated carton box, small size die cutting machine |
| Function | Die cutting, stamping, Automatic Die-cutting Machine in electric field, Manual Creasing, High Efficiency |
| Usage | Sticker, trademark, Food Forming Machine, label, heat transfer industry |
| Automatic grade | Automatic, Semi-Automatic |
Key Features
- Feeder: Advanced technical platform feeding precisely from 90g/m² thin paper to 1000g/m² cardboard and micro flute corrugated board
- Double sheet detector: Ultrasonic non-contact detection prevents scratching with reliable quick setup
- Auto non-stop collecting device: Automatic switching between main and auxiliary collection for maximum efficiency
- Plate setting: 5mm hardened cutting plate or 4+1mm sandwich plate with ±0.9mm micro adjustment
- Hot stamping section: 20 individually adjustable heating zones for precise temperature control
- Gripper bar: Cutting-edge technology with large motion angle eccentric worm gear drive system
- Germany vacuum pump: Becker oil-free blower and vacuum pump
- Auto lubrication system: Concentrated automatic lubrication for optimal driven parts performance
Technical Specifications
| Model | FB-HT1060AT |
|---|---|
| Maximum Sheet Size | 1060×760mm |
| Minimum Sheet Size | 400×350mm |
| Maximum Cutting Size | 1060×745mm |
| Minimum Width of Double Cuts | 5mm |
| Gripper Margin | 9-17mm |
| Cutting Rule Height | 23.8mm |
| Inner Chase Size | 1080×770mm |
| Stock Range | Paper: 80 to 2000g/m², 0.1~2mm | Corrugated board: up to 4mm |
| Common Stamping Accuracy | ≤±0.075mm |
| Hologram Positioning Stamping Accuracy | ≤±0.075mm (optional) |
| Die Cutting Precision | ≤±0.075mm |
| Maximum Cutting Pressure | 600T |
| Maximum Working Speed | 8000s/h |
| Maximum Pile Height At Feeder | 1630mm (with wooden pallet) |
| Maximum Pile Height At Delivery | 1480mm (with wooden pallet) |
| Max. Gold Foil Diameter | 250mm (vertical) |
| Electric-heated System | 20 Heating zones, 40-180℃ Adjustable |
| Foil Width | 20-1060mm |
| Machine Dimensions (L×W×H) | 8017×4518×2762mm (L: paper prepared track included, W: platform included) |
| Net Weight Of Machine | 24T |
| Main Motor Power | 15KW |
| Total Power Required | 56KW |
| Air Requirement | Air pressure: 0.6~0.7Mpa, Flow rate: ≥0.37m³/min |
