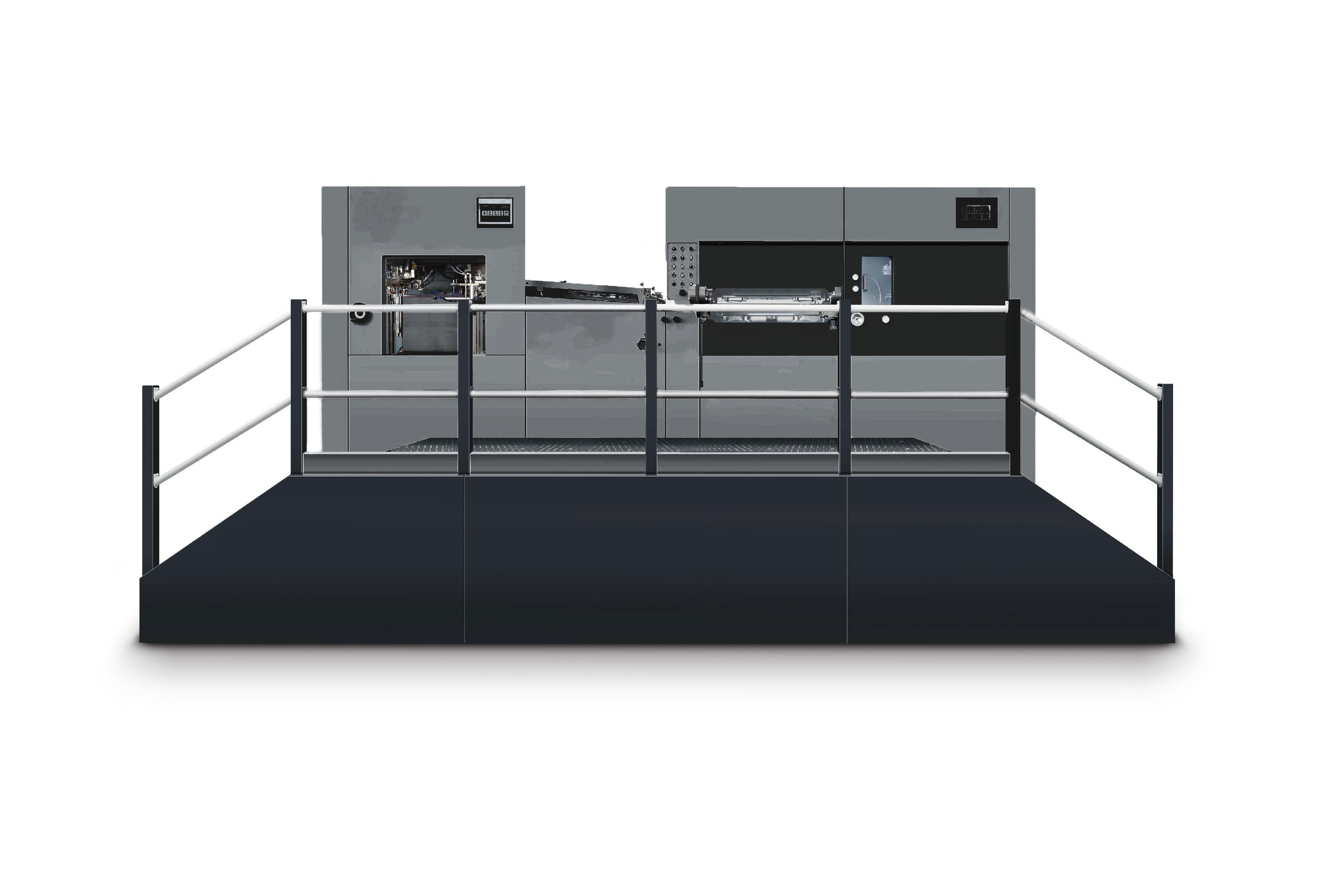

Industrial Automatic Die Cutting Machine 1060×760mm 35KW Automatic Die Punching Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | FB-HT1060AR |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Warranty | 1 Year,2 Years,One Year,3 Years | After-sales Service Provided | Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation,commissioning And Training,Online Support |
|---|---|---|---|
| Condition | New | Type | Die-cutting Machine,Paper Cutting Machine,Label Cutter,Other,Packing Machine |
| Computerized | Yes,Semi-Automatic,No | Product Name | Automatic Roll Film/ Mylar/Aluminum Foil Die Cutting Machine,automatic Paper Die Cutting Punching Machine Price,BASCOCUT Multi Sheet Cutter,Automatic Rotary Die Cutting Machine For Corrugated Carton Box,small Size Die Cutting Machine |
| Function | Die Cutting,stamping,Automatic Die-cutting Machine In Electric Field,Manual Creasing,High Effieciency | Name | Die Cutting Machine |
| Usage | Sticker,trademark,Food Forming Machine,label,heat Transfer Industry | Automatic Grade | Automatic,Semi-Automatic |
| Color | Requirement,Optional Color | ||
| Highlight | 1060×760mm Automatic Die Cutting Machine,35KW Automatic Die Cutting Machine,35KW Automatic Die Punching Machine |
||
Product Description
Automatic Die Cutting and Creasing Machine
Product Overview
High-performance automatic die cutting machine designed for precision cutting and creasing of various materials including paper, corrugated board, and specialty films. Offers exceptional accuracy and efficiency for industrial applications.
Key Specifications
| Model | FB-HT1060AR |
|---|---|
| Maximum Sheet Size | 1060×760mm |
| Minimum Sheet Size | 400×350mm |
| Maximum Cutting Size | 1060×745mm |
| Stock Range | Paper: 80 to 2000g/m², 0.1~2mm Corrugated board: up to 4mm |
| Die Cutting Precision | ≤±0.075mm |
| Maximum Working Speed | 8000 sheets/hour |
| Total Power Required | 35KW |
Advanced Features
- Precision feeder handles materials from 90g/m² thin paper to 1000g/m² cardboard
- Ultrasonic double sheet detector for scratch-free operation
- Quick mold locking device with center-line system for fast setup
- 5mm hardened cutting plate with ±0.9mm micro adjustment
- Advanced gripper bar system with smooth eccentric worm gear drive
- Automatic non-stop collecting device for continuous operation
- Germany Becker oil-free blower and vacuum pump
- Centralized auto lubrication system for optimal performance
Technical Specifications
| Minimum Width of Double Cuts | 5mm |
|---|---|
| Gripper Margin | 9-17mm |
| Cutting Rule Height | 23.8mm |
| Inner Chase Size | 1080×770mm |
| Maximum Cutting Pressure | 600T |
| Maximum Pile Height at Feeder | 1630mm (With wooden pallet) |
| Maximum Pile Height at Delivery | 1480mm (With wooden pallet) |
| Electric-heated System | 20 Heating zones, 40-180℃ Adjustable |
| Machine Dimensions (L×W×H) | 6703×4518×2502mm |
| Net Weight | 21T |
| Main Motor Power | 15KW |
| Air Requirement | Pressure: 0.6~0.7Mpa Flow rate: ≥0.37m³/min |
Product Attributes
| Warranty | 1 Year, 2 Years, 3 Years |
|---|---|
| After-sales Service | Overseas engineer support, Video technical support, Field installation and training, Online support |
| Condition | New |
| Type | Die-cutting Machine, Paper Cutting Machine, Label Cutter, Packing Machine |
| Operation | Automatic, Semi-Automatic |
| Applications | Stickers, trademarks, labels, heat transfer industry, food packaging |
| Color Options | Custom colors available |
Key Advantages
- High-precision die cutting with ≤±0.075mm accuracy
- Versatile material handling from thin papers to thick corrugated boards
- Advanced electric-heated system with 20 adjustable heating zones
- High-speed operation up to 8000 sheets per hour
- Robust construction with 600T maximum cutting pressure
