Automatic Folding Carton Die Cutting Machine Paper Box Creasing Die Cutter With Stripping

  • Automatic Folding Carton Die Cutting Machine Paper Box Creasing Die Cutter With Stripping
  • Automatic Folding Carton Die Cutting Machine Paper Box Creasing Die Cutter With Stripping
  • Automatic Folding Carton Die Cutting Machine Paper Box Creasing Die Cutter With Stripping
  • Automatic Folding Carton Die Cutting Machine Paper Box Creasing Die Cutter With Stripping
  • Automatic Folding Carton Die Cutting Machine Paper Box Creasing Die Cutter With Stripping
  • Automatic Folding Carton Die Cutting Machine Paper Box Creasing Die Cutter With Stripping
Place of Origin China
Brand Name FINTEECH
Certification CE
Model Number FB-HT1060CE
Minimum Order Quantity 1 Set
Packaging Details Export wooden case packing with anti-rust treatment and waterproof film, loaded in 40ft container
Delivery Time 30-45 days after receiving deposit
Payment Terms T/T,L/C
Supply Ability 10 Sets per Month
Product Details
Model FB-HT1060CE Maximum Sheet Size 1060 X 760mm
Minimum Sheet Size 350mm Maximum Cutting Size 1060 X 745mm
Gripper Margin 9~17mm Cutting Rule Height 23.8mm
Inner Chase Size 1080 X 770mm Stock Range Paper 80-2000g/m2 (0.1-2mm), Corrugated Board Up To 4mm
Die Cutting Accuracy +/-0.075mm Max. Die Cutting Force 300T
Max. Working Speed 9000 Sheets/hour Max. Feeder Pile Height 1630mm (with Wooden Pallet)
Max. Delivery Pile Height 1480mm (with Wooden Pallet) Machine Dimensions (L X W X H) 8017 X 4518 X 2502mm
Net Weight 18000kg Main Motor Power 15KW
Total Power Required 23KW Air Requirement Pressure 0.6-0.7Mpa, Flow 0.37m3/min
Highlight

Automatic Stripping Die Cutting Machine

,

Paper Box Die Cutting Machine

,

Corrugated Board Automatic Die Cutter
Leave a Message
Product Description

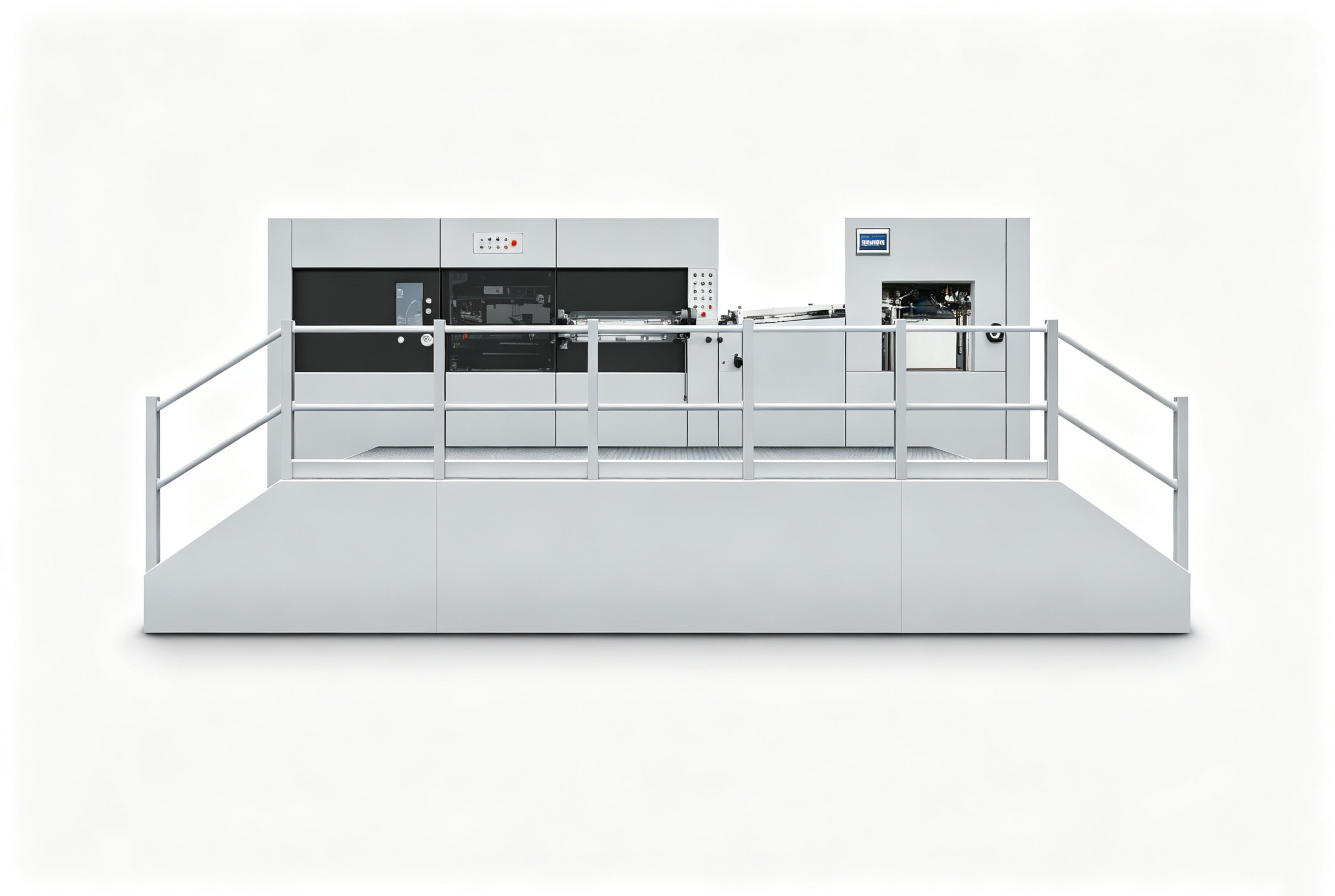

FB-HT1060CE Automatic Die Cutting and Creasing Machine With Stripping

FB-HT1060CE is a heavy duty automatic die cutting and creasing machine with stripping function, engineered for high speed and high precision die cutting of paper, cardboard and corrugated board. It delivers a maximum working speed of 9000 sheets per hour with 300T cutting force, meeting the productivity requirements of folding carton and corrugated packaging production.

Key Features

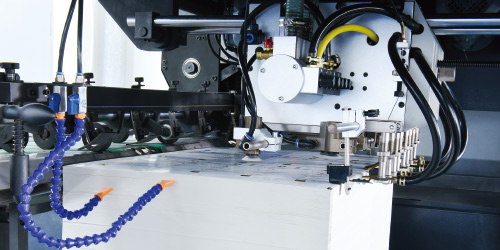

  • Precision Feeder: Advanced feeding platform precisely and consistently handles a wide stock range from 90g/m2 thin paper to 1000g/m2 cardboard as well as micro flute corrugated board.

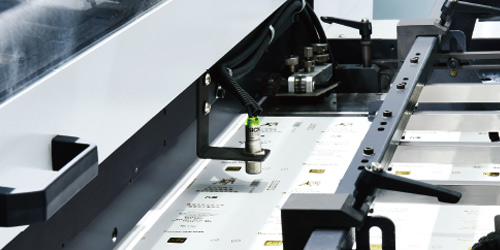

  • Ultrasonic Double Sheet Detector: Non-contact detection without touching the paper, scratch free, reliable and quick set up.
  • Mould Quick Locking Device: Center-line system with quick locking device saves make ready time.
  • Precision Plate Setting: 5mm hardened cutting plate or 4+1mm sandwich plate on top of 15mm precision synthetic supporting plate with +/-0.9mm micro adjustment.

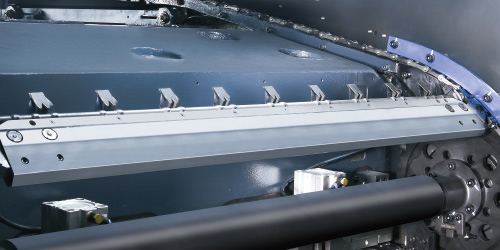

  • High Performance Gripper Bar: Cutting edge gripper bars with large motion angle eccentric worm gear drive system run extremely smoothly.

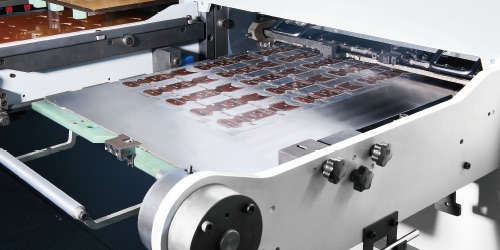

  • Gripper Edge Waste Removal: Stripping and removing system with conveyor belt removes gripper edge waste sideways to the drive side.
  • Germany Vacuum Pump: Germany Becker oil free blower and vacuum pump.
  • Auto Lubrication System: Concentrated auto lubrication system keeps driven parts working better.
  • Auto Non-stop Collecting Device: Main collecting device and auto non-stop collecting device switch automatically without operation for higher efficiency.

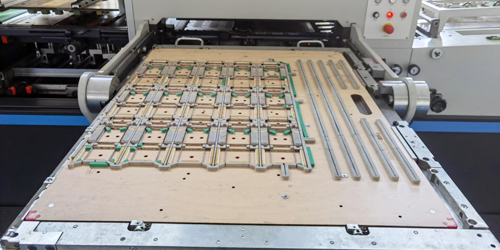

  • Advanced Tooling Lockup: Quick tooling set up system ensures fast job change over and high productivity at both stripping stations.
  • Variable Speed Worm Gear Drive: Worm gear and toggle mechanism allows large motion angle with minimum number and size of nicks at reasonable max. production speed.

Technical Parameters

Model FB-HT1060CE
Maximum Sheet Size 1060 x 760mm
Minimum Sheet Size 350mm
Maximum Cutting Size 1060 x 745mm
Gripper Margin 9~17mm
Cutting Rule Height 23.8mm
Inner Chase Size 1080 x 770mm
Stock Range Paper: 80 to 2000g/m2, 0.1-2mm; corrugated board up to 4mm
Die Cutting Accuracy +/-0.075mm
Max. Die Cutting Force 300T
Max. Working Speed 9000 sheets/hour
Max. Feeder Pile Height 1630mm (with wooden pallet)
Max. Delivery Pile Height 1480mm (with wooden pallet)
Machine Dimensions (L x W x H) 8017 x 4518 x 2502mm
Net Weight of Machine 18000kg
Main Motor Power 15KW
Total Power Required 23KW
Air Requirement Pressure 0.6-0.7Mpa, Flow 0.37m3/min

Applications

Suitable for die cutting and creasing of paper boxes, cartons, corrugated board, and packaging materials in the printing and packaging industry.
