Place of Origin China
Brand Name FINTEECH
Certification CE
Model Number FB-HT1060AT
Minimum Order Quantity 1 Set
Packaging Details Export wooden case packing with plastic film protection
Delivery Time 30-45 days after deposit
Payment Terms T/T,L/C
Supply Ability 10 Sets per Month
Product Details
Model FB-HT1060AT Maximum Sheet Size 1060*760mm
Minimum Sheet Size 350mm Maximum Cutting Size 1060*745mm
Gripper Margin 9-17mm Cutting Rule Height 23.8mm
Inner Chase Size 1080*770mm Stock Range Paper: 80-2000g/m2, 0.1-2mm; Corrugated Board: Up To 4mm
Common Stamping Accuracy +/-0.075mm Hologram Positioning Stamping Accuracy +/-0.075mm
Die Cutting Precision +/-0.075mm Maximum Cutting Pressure 600T
Maximum Working Speed 8000 Sheets Per Hour Maximum Pile Height At Feeder 1630mm (with Wooden Pallet)
Maximum Pile Height At Delivery 1480mm (with Wooden Pallet) Maximum Gold Foil Diameter 250mm (vertical)
Electric Heating System 20 Heating Zones, 40-180 Deg C Adjustable Foil Width 20-1060mm
Machine Dimensions 8017*4518*2762mm (L*W*H) Main Motor Power 15KW
Total Power Required 56KW Air Requirement Air Pressure 0.6-0.7MPa, Flow Rate 0.37m3/min
Highlight

Hologram Positioning Stamping Accuracy

,

Integrated Hot Foil Stamping Die Cutting

,

Automatic Stripping And Blanking System
Leave a Message
Product Description

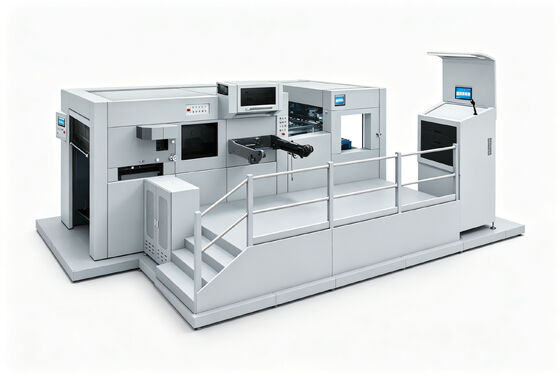

FB-HT1060AT Automatic High Speed Hot Stamping and Die Cutting Machine with Stripping and Blanking

The FB-HT1060AT is a heavy duty automatic hot foil stamping and die cutting machine that combines hot stamping, die cutting, stripping and blanking in one production line. It delivers 600T maximum cutting pressure, 8000 sheets per hour working speed, +/-0.075mm common stamping accuracy and +/-0.075mm hologram positioning stamping accuracy, with foil width from 20mm to 1060mm.

Technical Parameters

Model FB-HT1060AT
Maximum Sheet Size 1060*760mm
Minimum Sheet Size 350mm
Maximum Cutting Size 1060*745mm
Gripper Margin 9-17mm
Cutting Rule Height 23.8mm
Inner Chase Size 1080*770mm
Stock Range Paper: 80-2000g/m2, 0.1-2mm; Corrugated board: up to 4mm
Common Stamping Accuracy +/-0.075mm
Hologram Positioning Stamping Accuracy +/-0.075mm
Die Cutting Precision +/-0.075mm
Maximum Cutting Pressure 600T
Maximum Working Speed 8000 sheets per hour
Maximum Pile Height at Feeder 1630mm (with wooden pallet)
Maximum Pile Height at Delivery 1480mm (with wooden pallet)
Maximum Gold Foil Diameter 250mm (vertical)
Electric Heating System 20 heating zones, 40-180°C adjustable
Foil Width 20-1060mm
Machine Dimensions 8017*4518*2762mm (L*W*H)
Main Motor Power 15KW
Total Power Required 56KW
Air Requirement Air pressure: 0.6-0.7MPa, Flow rate: 0.37m3/min

Key Features

  • Hot Stamping Section: heating base with 20 heating zones, each temperature adjustable individually for efficient and accurate temperature control.
  • Hologram Positioning: +/-0.075mm hologram positioning stamping accuracy for security and packaging applications.
  • Integrated Stripping and Blanking: hot stamping, die cutting, stripping and blanking finished in one automatic pass.
  • Heavy Duty 600T Pressure: powerful cutting force for thick stock and demanding die cutting jobs.

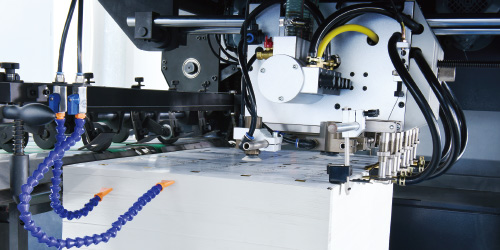

  • Precision Feeder: feeds wide range stock consistently from 90g/m2 thin paper to 1000g/m2 cardboard and micro flute corrugated board.

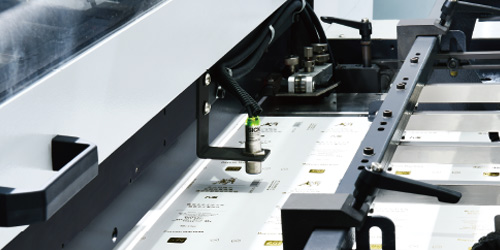

  • Ultrasonic Double Sheet Detector: non-contact detection, scratch-free, reliable and quick set up.
  • Precision Plate Setting: 5mm hardened cutting plate or 4+1mm sandwich plate with +/-0.9mm micro adjustment for quick set up.

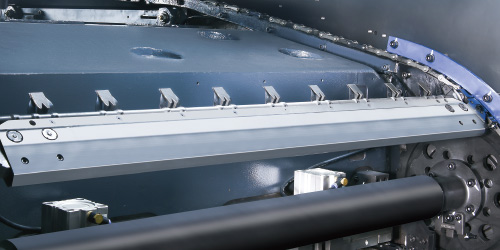

  • Smooth Gripper Bar: large motion angle eccentric worm gear drive system runs smoothly.
  • Auto Non-Stop Collecting Device: automatic switching between main and auxiliary collecting devices for maximum efficiency.
  • Germany Becker Vacuum Pump: oil-free blower and vacuum pump for clean and reliable operation.
  • Auto Lubrication System: concentrated automatic lubrication keeps driven parts working better.

Applications

Designed for hot foil stamping and die cutting of folding cartons, cosmetic boxes, greeting cards and packaging with hologram security effects.

Support and Service

Overseas engineer service, video technical support, field installation, commissioning and training available. Contact us for the FB-HT1060AT hot foil stamping machine price and detailed quotation.
