Automatic Die Cutting Machine Heavy Duty Die Cutter Corrugated Cardboard Paper Box Production Line

  • Automatic Die Cutting Machine Heavy Duty Die Cutter Corrugated Cardboard Paper Box Production Line
  • Automatic Die Cutting Machine Heavy Duty Die Cutter Corrugated Cardboard Paper Box Production Line
  • Automatic Die Cutting Machine Heavy Duty Die Cutter Corrugated Cardboard Paper Box Production Line
  • Automatic Die Cutting Machine Heavy Duty Die Cutter Corrugated Cardboard Paper Box Production Line
  • Automatic Die Cutting Machine Heavy Duty Die Cutter Corrugated Cardboard Paper Box Production Line
Place of Origin China
Brand Name FINTEECH
Certification CE
Model Number FB-HT1060AR
Minimum Order Quantity 1 Set
Packaging Details Export wooden case packing with plastic film protection
Delivery Time 20-30 days after deposit
Payment Terms T/T,L/C
Supply Ability 10 Sets per Month
Product Details
Model FB-HT1060AR Maximum Sheet Size 1060*760mm
Minimum Sheet Size 350mm Maximum Cutting Size 1060*745mm
Gripper Margin 9-17mm Cutting Rule Height 23.8mm
Inner Chase Size 1080*770mm Stock Range Paper: 80-2000g/m2, 0.1-2mm; Corrugated Board: Up To 4mm
Die Cutting Precision +/-0.075mm Maximum Cutting Pressure 600T
Maximum Working Speed 8000 Sheets Per Hour Maximum Pile Height At Feeder 1630mm (with Wooden Pallet)
Maximum Pile Height At Delivery 1480mm (with Wooden Pallet) Electric Heating System 20 Heating Zones, 40-180 Deg C Adjustable
Machine Dimensions 6703*4518*2502mm (L*W*H) Main Motor Power 15KW
Total Power Required 35KW Air Requirement Air Pressure 0.6-0.7MPa, Flow Rate 0.37m3/min
Highlight

600T Heavy Duty Cutting Pressure

,

20 Zone Electric Heating System

,

Ultrasonic Double Sheet Detection
Leave a Message
Product Description

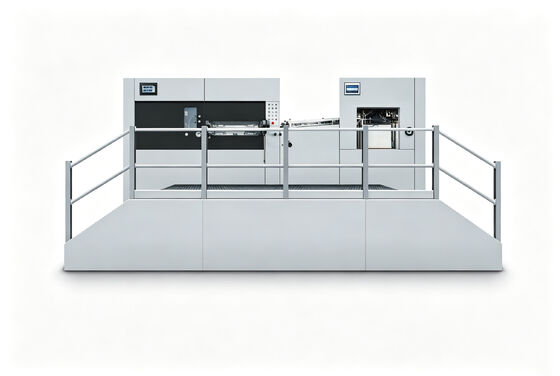

FB-HT1060AR Automatic Die Cutting Machine (Heavy Duty, Heating System)

The FB-HT1060AR is a heavy duty automatic die cutting machine built on an advanced technical platform, delivering 600T maximum cutting pressure, 8000 sheets per hour working speed and +/-0.075mm die cutting precision. It integrates a 20-zone electric heating system with individually adjustable temperature from 40 to 180°C, making it ideal for high volume paper, cardboard and corrugated board die cutting production.

Technical Parameters

Model FB-HT1060AR
Maximum Sheet Size 1060*760mm
Minimum Sheet Size 350mm
Maximum Cutting Size 1060*745mm
Gripper Margin 9-17mm
Cutting Rule Height 23.8mm
Inner Chase Size 1080*770mm
Stock Range Paper: 80-2000g/m2, 0.1-2mm; Corrugated board: up to 4mm
Die Cutting Precision +/-0.075mm
Maximum Cutting Pressure 600T
Maximum Working Speed 8000 sheets per hour
Maximum Pile Height at Feeder 1630mm (with wooden pallet)
Maximum Pile Height at Delivery 1480mm (with wooden pallet)
Electric Heating System 20 heating zones, 40-180°C adjustable
Machine Dimensions 6703*4518*2502mm (L: paper prepared track included, W: platform included)
Main Motor Power 15KW
Total Power Required 35KW
Air Requirement Air pressure: 0.6-0.7MPa, Flow rate: 0.37m3/min

Key Features

  • Heavy Duty 600T Pressure: powerful cutting force handles thick stock, creasing and heavy duty die cutting jobs with ease.
  • 20-Zone Electric Heating System: heating zones individually adjustable from 40 to 180°C for accurate and efficient temperature control.

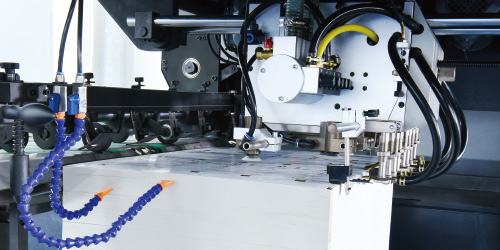

  • Precision Feeder: feeds a wide range of stock consistently from 90g/m2 thin paper to 1000g/m2 cardboard and micro flute corrugated board.

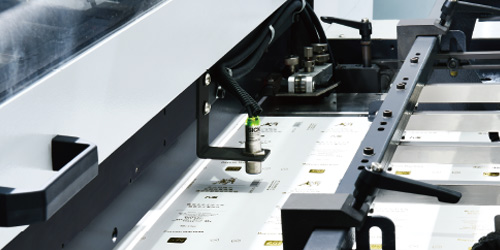

  • Ultrasonic Double Sheet Detector: non-contact ultrasonic detection without touching the paper, scratch free, reliable and quick to set up.
  • Mould Quick Locking Device: center-line system with quick locking device saves make-ready time between jobs.
  • Precision Plate Setting: 5mm hardened cutting plate or 4+1mm sandwich plate on top of 15mm precision synthetic supporting plate with +/-0.9mm micro adjustment.
  • Smooth Gripper Bar: large motion angle eccentric worm gear drive system runs extremely smoothly.

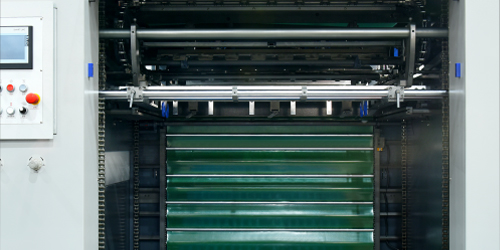

  • Auto Non-Stop Collecting Device: main and auxiliary collecting devices switch automatically without any operation for higher efficiency.
  • Germany Becker Vacuum Pump: oil free blower and vacuum pump ensure clean and reliable performance.
  • Auto Lubrication System: concentrated automatic lubrication keeps all driven parts working in optimal condition.

Applications

Widely used for die cutting and creasing of folding cartons, corrugated boxes, paper packaging, greeting cards, calendars and commercial print finishing in the packaging and printing industry.

Support and Service

Overseas engineer service, video technical support, field installation, commissioning and training available. Contact us for the FB-HT1060AR die cutting machine price and detailed quotation.
