FB-HT1060ACER Automatic Die Cutting Machine Paper Box Corrugated Board Die Cutter with Stripping Function

  • FB-HT1060ACER Automatic Die Cutting Machine Paper Box Corrugated Board Die Cutter with Stripping Function
  • FB-HT1060ACER Automatic Die Cutting Machine Paper Box Corrugated Board Die Cutter with Stripping Function
  • FB-HT1060ACER Automatic Die Cutting Machine Paper Box Corrugated Board Die Cutter with Stripping Function
  • FB-HT1060ACER Automatic Die Cutting Machine Paper Box Corrugated Board Die Cutter with Stripping Function
  • FB-HT1060ACER Automatic Die Cutting Machine Paper Box Corrugated Board Die Cutter with Stripping Function
  • FB-HT1060ACER Automatic Die Cutting Machine Paper Box Corrugated Board Die Cutter with Stripping Function
Place of Origin China
Brand Name FINTEECH
Certification CE
Model Number FB-HT1060ACER
Minimum Order Quantity 1 Set
Packaging Details Export wooden case packing with anti-rust treatment and waterproof film, loaded in 40ft container
Delivery Time 20-30 working days
Payment Terms T/T,L/C
Supply Ability 10 Sets per Month
Product Details
Model FB-HT1060ACER Maximum Sheet Size 1060 X 760mm
Minimum Sheet Size 350mm Maximum Cutting Size 1060 X 745mm
Cutting Rule Height 23.8mm Inner Chase Size 1080 X 770mm
Stock Range Paper 80-2000g/m2 (0.1-2mm), Corrugated Board Up To 4mm Die Cutting Precision +/-0.075mm
Maximum Cutting Pressure 600T Maximum Working Speed 8000 Sheets/hour
Max. Feeder Pile Height 1630mm (with Wooden Pallet) Max. Delivery Pile Height 1480mm (with Wooden Pallet)
Electric-Heated System 20 Heating Zones, 40-180 Deg C Adjustable Machine Dimensions (L X W X H) 8017 X 4518 X 2502mm
Main Motor Power 15KW Total Power Required 23KW
Air Requirement 0.6-0.7Mpa, 0.37m3/min
Highlight

Automatic Die Cutting Machine With Stripping

,

Heavy Duty Automatic Die Cutter

,

Cardboard Die Cutting Machine Price
Leave a Message
Product Description

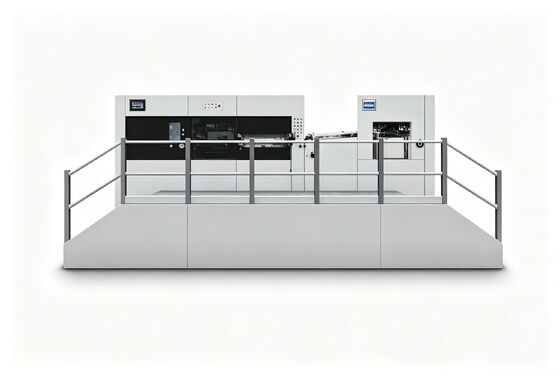

FB-HT1060ACER automatic die cutting machine with stripping is a heavy-duty platen die cutter rated at 600 tons of cutting pressure, integrating gripper edge waste stripping and an electric heating system. It is the ideal solution for high-volume die cutting and stripping of paper and corrugated board in packaging production.

Key Features

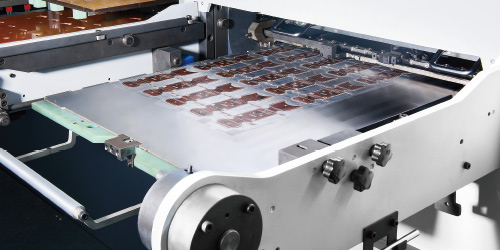

  • Precise feeder system: Advanced feeding platform feeds a wide stock range precisely and consistently, from 90g/m2 thin paper to 1000g/m2 cardboard and micro flute corrugated board.
  • Ultrasonic double sheet detector: Non-contact ultrasonic detection avoids scratching the paper, with reliable performance and quick set-up.
  • Quick mould locking device: Center-line system with quick locking device saves make-ready time.
  • Plate setting: 5mm hardened cutting plate or 4+1mm sandwich plate on a 15mm precision synthetic supporting plate with ±0.9mm micro adjustment for easy make-ready.

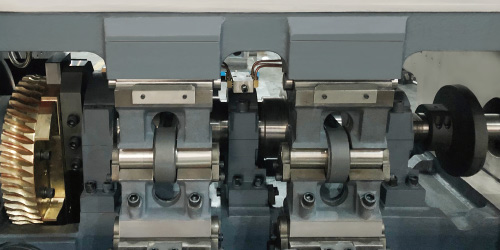

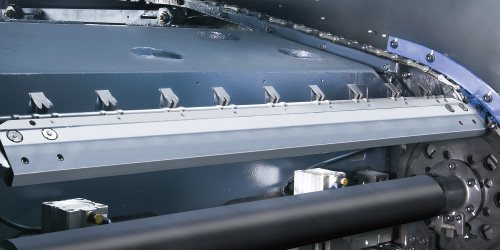

  • Gripper bar: Large motion angle eccentric worm gear drive system keeps gripper bars running extremely smoothly.
  • Gripper edge waste removal device: Gripper edge stripping and removing system with conveyor belt removes the gripper edge waste sideways to the drive side.
  • Electric heating system: 20 heating zones with adjustable temperature range of 40~180°C, suitable for hot die cutting processes.
  • Germany Becker vacuum pump: Oil-free blower and vacuum pump ensure clean and stable sheet transport.

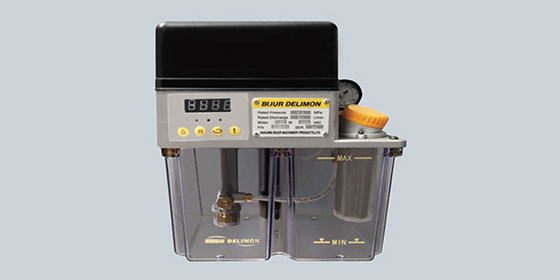

  • Auto lubrication system: Concentrated auto lubrication keeps all driven parts working reliably.

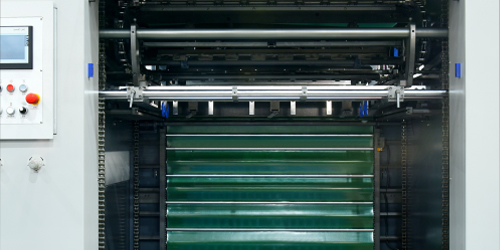

  • Auto non-stop collecting device: Main delivery and auto non-stop delivery switch automatically without any operation, improving overall efficiency.
  • Advanced tooling lockup: Quick tooling set-up system ensures fast job change-over and high productivity at both stripping stations.

Technical Parameters

Model FB-HT1060ACER
Maximum Sheet Size 1060 x 760mm
Minimum Sheet Size 350mm
Maximum Cutting Size 1060 x 745mm
Gripper Margin 9-17mm
Cutting Rule Height 23.8mm
Inner Chase Size 1080 x 770mm
Stock Range Paper 80~2000g/m2, 0.1~2mm; corrugated board up to 4mm
Die Cutting Precision ±0.075mm
Maximum Cutting Pressure 600T
Maximum Working Speed 8000 sheets/hour
Max. Feeder Pile Height 1630mm (with wooden pallet)
Max. Delivery Pile Height 1480mm (with wooden pallet)
Electric-Heated System 20 heating zones, 40~180°C adjustable
Machine Dimensions (L x W x H) 8017 x 4518 x 2502mm
Main Motor Power 15KW
Total Power Required 23KW
Air Requirement 0.6~0.7Mpa, 0.37m3/min
