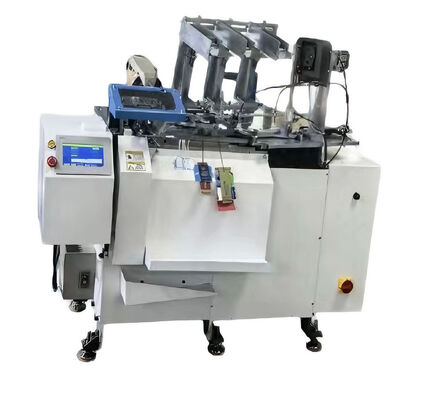

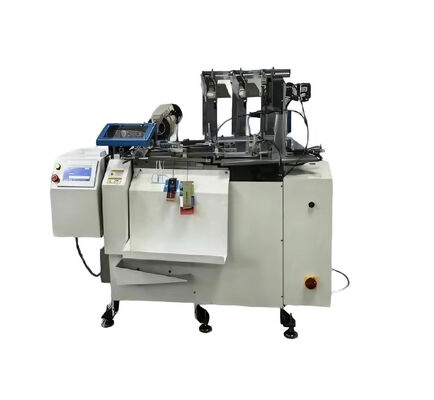

Automatic Three-Tag Stringing Machine / Automatic Tag Threading Machine Designed to Minimize Thread Breakage and Machine Downtime for Continuous Production Flow

  • Automatic Three-Tag Stringing Machine / Automatic Tag Threading Machine Designed to Minimize Thread Breakage and Machine Downtime for Continuous Production Flow
  • Automatic Three-Tag Stringing Machine / Automatic Tag Threading Machine Designed to Minimize Thread Breakage and Machine Downtime for Continuous Production Flow
Place of Origin CHINA
Brand Name FINTEECH
Certification CE
Product Details
Maintenance Low Maintenance With Easy Access Parts Operationmode Automatic
Function Automatically Threads Tags Onto Products Or Garments Warranty 12 Months Manufacturer Warranty
Safetyfeatures Emergency Stop Button And Safety Guards Controlsystem Microprocessor Controlled
Userinterface Touchscreen Display Productname Automatic Tag Threading Machine
Materialcompatibility Suitable For Various Fabrics And Materials
Highlight

Continuous Production Tag Stringing Machine

,

Automatic Tag Stringing Machine
Leave a Message
Product Description

The automatic three-tag stringing machine is specially designed for products that require stringing three hangtags simultaneously. It completes automatic tag matching, stringing, knotting, and counting in one operation. Its key feature is the ability to string three hangtags of different sizes at the same time, and it can also handle single or two tags.

Main Parameters

No. Main Parameter Unit Specification
1 Speed H 2000-3000pcs/h
2 Max. Hangtag Size mm 90*150mm
3 Min. Hangtag Size mm 30*50mm
4 Applicable String Diameter mm Normal string: 0.3-2.1mm; Elastic string: 0.3-1.5mm; Ribbon: ≤4mm
5 Applicable String Length mm 80-200mm after knotting
6 Tail Length mm 15-18mm
7 Applicable Hangtag Thickness g 200 to 2000
8 Applicable Hangtag Hole Size mm ≥3mm
9 Machine Dimensions m 1.7m*1.3m*1.6m
10 Machine Weight Kg 600kg
11 Applicable Power Supply V 380v available
12 Power W 1000w

Sample display

Automatic Three-Tag Stringing Machine / Automatic Tag Threading Machine Designed to Minimize Thread Breakage and Machine Downtime for Continuous Production Flow 0 Automatic Three-Tag Stringing Machine / Automatic Tag Threading Machine Designed to Minimize Thread Breakage and Machine Downtime for Continuous Production Flow 1
