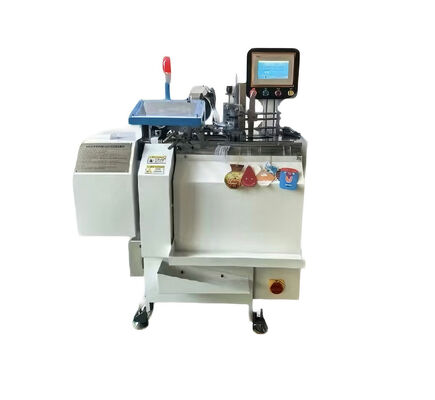

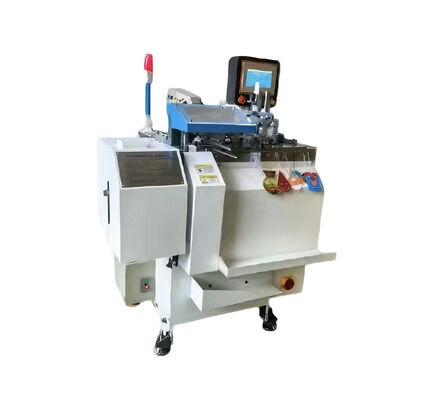

Automatic Hangtag Stringing Machine / Automatic Tag Threading Machine Delivering Consistent Threading Accuracy To Improve Overall Product And Reduce Rework Rates

  • Automatic Hangtag Stringing Machine / Automatic Tag Threading Machine Delivering Consistent Threading Accuracy To Improve Overall Product And Reduce Rework Rates
  • Automatic Hangtag Stringing Machine / Automatic Tag Threading Machine Delivering Consistent Threading Accuracy To Improve Overall Product And Reduce Rework Rates
Place of Origin CHINA
Brand Name FINTEECH
Certification CE
Product Details
Productname Automatic Tag Threading Machine Operationmode Automatic
Errordetection Automatic Error Detection And Alarm System Maintenance Easy To Clean And Maintain
Materialcompatibility Fabric, Paper, Plastic Tags Function Automatically Threads Tags Onto Products
Controlsystem PLC Control With Touch Screen Interface Applicationindustry Garment, Textile, Retail Tagging
Safetyfeatures Emergency Stop Button And Safety Guards Threadtype Nylon Thread Or Cotton Thread
Highlight

Automatic Tag Threading Machine

,

Hangtag Stringing Machine
Leave a Message
Product Description

This machine is suitable for the automatic punching, stringing, knotting and counting of various paper hangtags, all completed in one process.

Application industries: clothing, gifts, food, wine, card labels, etc. It features simple operation, safety and high production efficiency, and is compatible with threads such as cotton thread, gold thread, silver thread, nylon thread and elastic cord.

The performance characteristics of this machine differ from similar models on the market as follows:

  • Higher technical coverage and optimization rate compared to similar machines on the market.
  • The main body adopts a steel frame structure with heat treatment and quenching-tempering process, which is sturdy and complete, ensuring stable operation of the equipment.
  • The machine's motor, touch screen, PLC, frequency converter, etc. are all genuine brands from well-established companies.
  • The knotting control mechanism is a cam divider independently developed by us and customized with a well-known company, featuring high precision and long service life.
  • High-level safety measures are implemented to ensure personnel safety.
Main Parameters
No. Main Parameter Unit Specification
1 Speed H 5000pcs/h
2 Max. Hangtag Size mm 90*150mm
3 Min. Hangtag Size mm 30*50mm
4 Applicable String Diameter mm Normal string: 0.3-2.1mm; Elastic string: 0.3-1.5mm; Ribbon: ≤4mm
5 Applicable String Length mm 80-200mm after knotting
6 Tail Length mm 15-18mm
7 Applicable Hangtag Thickness g 200 to 2000
8 Applicable Hangtag Hole Size mm Standard sizes: 3, 4, 5; replace molds for other sizes
9 Machine Dimensions m 1.3m*1.1m*1.5m
10 Machine Weight Kg 450kg
11 Machine Power W 0.75kW
Sample display
Automatic Hangtag Stringing Machine / Automatic Tag Threading Machine Delivering Consistent Threading Accuracy To Improve Overall Product And Reduce Rework Rates 0 Automatic Hangtag Stringing Machine / Automatic Tag Threading Machine Delivering Consistent Threading Accuracy To Improve Overall Product And Reduce Rework Rates 1
