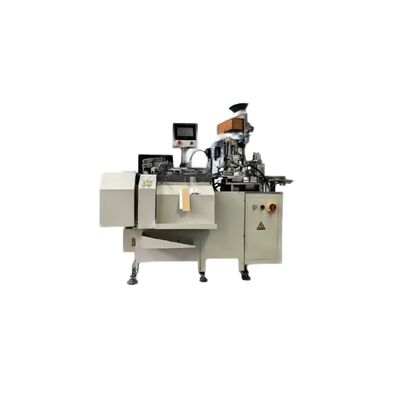

Eyelet Integrated Machine / Automatic Tag Threading Machine Enhancing Productivity in Textile Industry by Automating Tag Insertion and Threading Tasks

  • Eyelet Integrated Machine / Automatic Tag Threading Machine Enhancing Productivity in Textile Industry by Automating Tag Insertion and Threading Tasks
Place of Origin CHINA
Brand Name FINTEECH
Certification CE
Product Details
Control System PLC Control With Touch Screen Material Compatibility Various Fabric Types
Warranty 1 Year Manufacturer Warranty Maintenance Easy Maintenance With Modular Design
Function Tag Threading Machine Type Automatic
Safety Features Emergency Stop Button, Safety Guards
Highlight

Safety Guards Automatic Tag Threading Machine

,

Automatic Tag Threading Machine
Leave a Message
Product Description

This machine is suitable for the automatic punching, eyelet setting, stringing, knotting and counting of various paper hangtags, all completed in one process. Application industries: clothing, gifts, food, wine, card labels, etc. It features simple operation, safety and high production efficiency, and is compatible with threads such as cotton thread, gold thread, silver thread, nylon thread and elastic cord. The performance characteristics of this machine differ from similar models on the market as follows:

  • Higher technical coverage and optimization rate compared to similar machines on the market.
  • The main body adopts a steel frame structure with heat treatment and quenching-tempering process, which is sturdy and complete, ensuring stable operation of the equipment.
  • The machine's motor, touch screen, PLC, frequency converter, etc. are all genuine brands from well-established companies.
  • The eyelet-setting mechanism is compatible with semi-automatic eyelet machines on the market. The knotting control mechanism is a cam divider independently developed by us and customized with a well-known company, featuring high precision and long service life.
  • High-level safety measures are implemented to ensure personnel safety.
Main Parameters
No. Main Parameter Unit Specification
1 Speed H 3500pcs/h
2 Max. Hangtag Size mm 90*150mm
3 Min. Hangtag Size mm 30*50mm
4 Applicable String Diameter mm Normal string: 0.3-2.1mm; Elastic string: 0.3-1.5mm; Ribbon: ≤4mm
5 Applicable String Length mm 80-200mm after knotting
6 Tail Length mm 15-18mm
7 Applicable Hangtag Thickness g 200 to 2000
8 Applicable Eyelet Size mm Inner diameter >3mm to ensure stringing and knotting. Replace molds for different eyelets.
9 Machine Dimensions m 1.7m*1.2m*1.6m
10 Machine Weight Kg 600kg
11 Machine Power W 1kW

Sample display

Eyelet Integrated Machine / Automatic Tag Threading Machine Enhancing Productivity in Textile Industry by Automating Tag Insertion and Threading Tasks 0Eyelet Integrated Machine / Automatic Tag Threading Machine Enhancing Productivity in Textile Industry by Automating Tag Insertion and Threading Tasks 1
