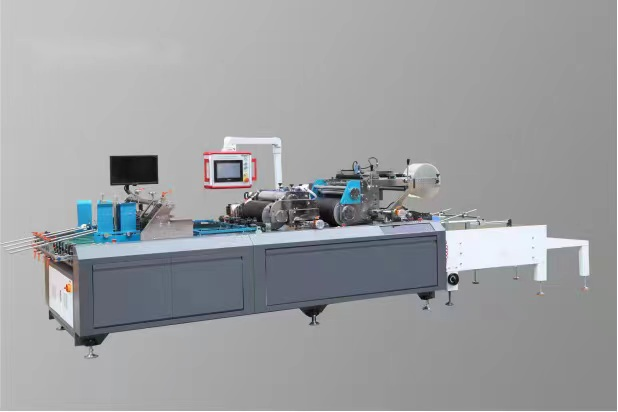

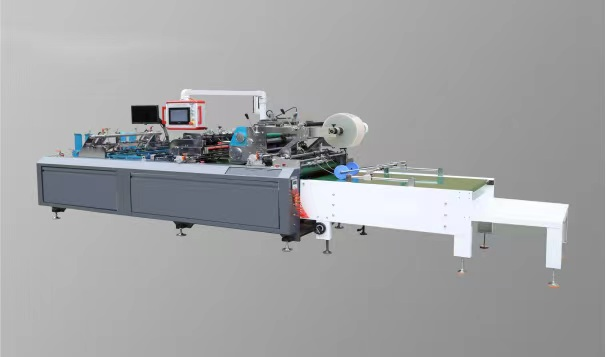

Multi function Automatic Window Patching Machine

  • Multi function Automatic Window Patching Machine
  • Multi function Automatic Window Patching Machine
  • Multi function Automatic Window Patching Machine
  • Multi function Automatic Window Patching Machine
  • Multi function Automatic Window Patching Machine
  • Multi function Automatic Window Patching Machine
  • Multi function Automatic Window Patching Machine
Place of Origin CHINA
Brand Name FINTEECH
Certification CE
Model Number G-880S
Minimum Order Quantity 1 set
Packaging Details wooden case
Delivery Time 20-30 days
Payment Terms L/C,T/T
Supply Ability 10 sets per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Safety System Emergency Stop Function Window Patching
Cutting Material Cardboard Driven System Servo Motor
Highlight

automatic window patching machine

,

multi function window patcher

,

window patching machine with warranty
Leave a Message
Product Description

Machine Introduction:

The full servo unit type high speed window patching machine is driven by 13 servo motors independently. The unit type design allows you to replace and add mechanical modules at will according to different product requirements of customers. It has the multi-purpose function of one machine. The module double-knife can not only paste the flat window on the high speed , but also paste the creasing window with high precision. At the same time,it has film line pressing and V-angle stamping, film pattern marking, paper tissue box film opening, film punching, Thin film embossing logo function.

Major Feature:
  1. Machine Install 7sets servo motor, high stability with more easy adjustment

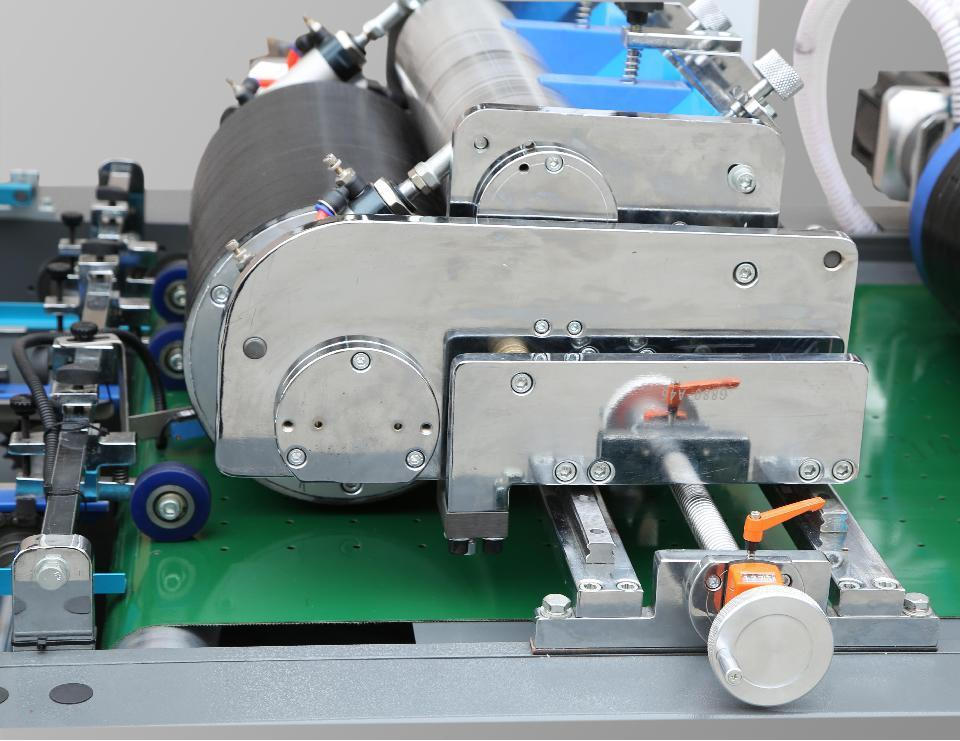

  2. Modular structure with free switching between hob cutting knife and horizontal knife.(Horizontal knife is optional function)
  3. Through the PLC, input the paper size, automatically adjust the film length position.
  4. Paper receiving stepper with batch counting

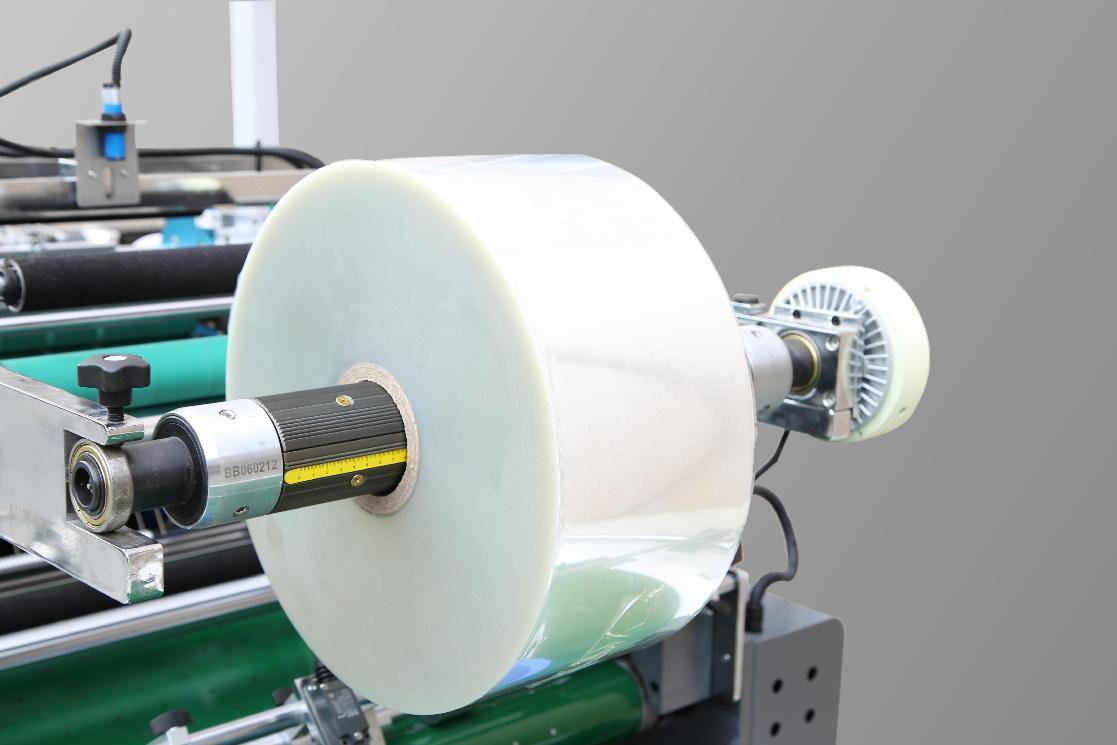

  5. Air expansion shaft with magnetic powder tension film unwinding

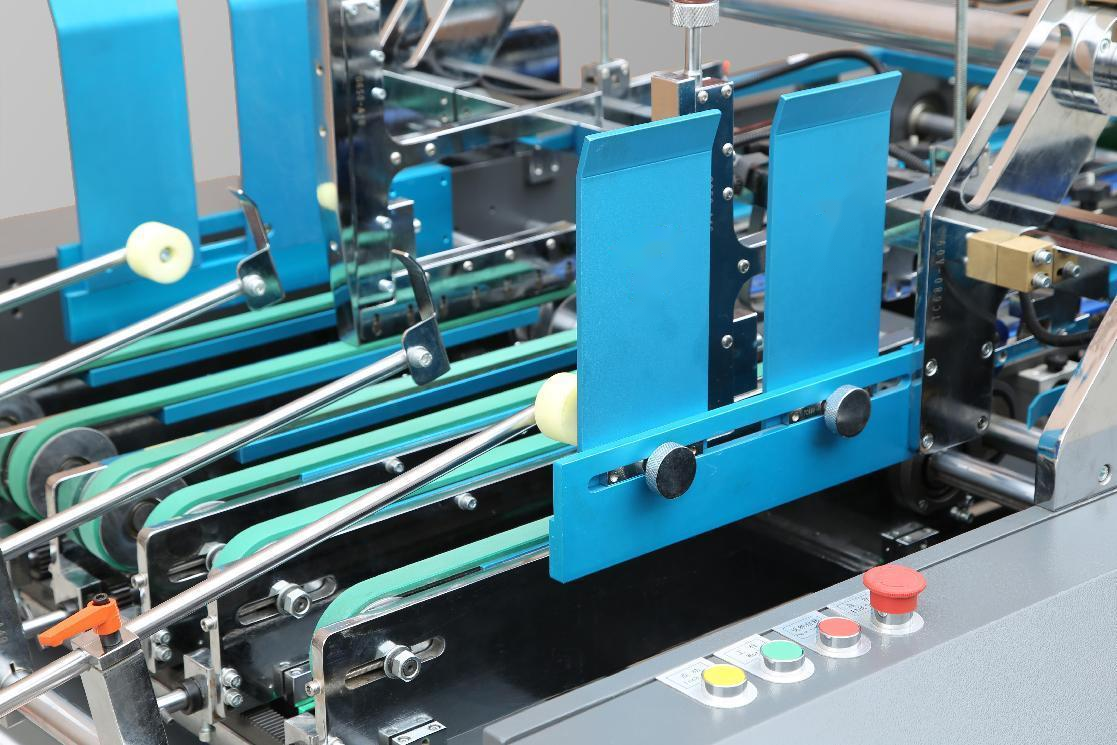

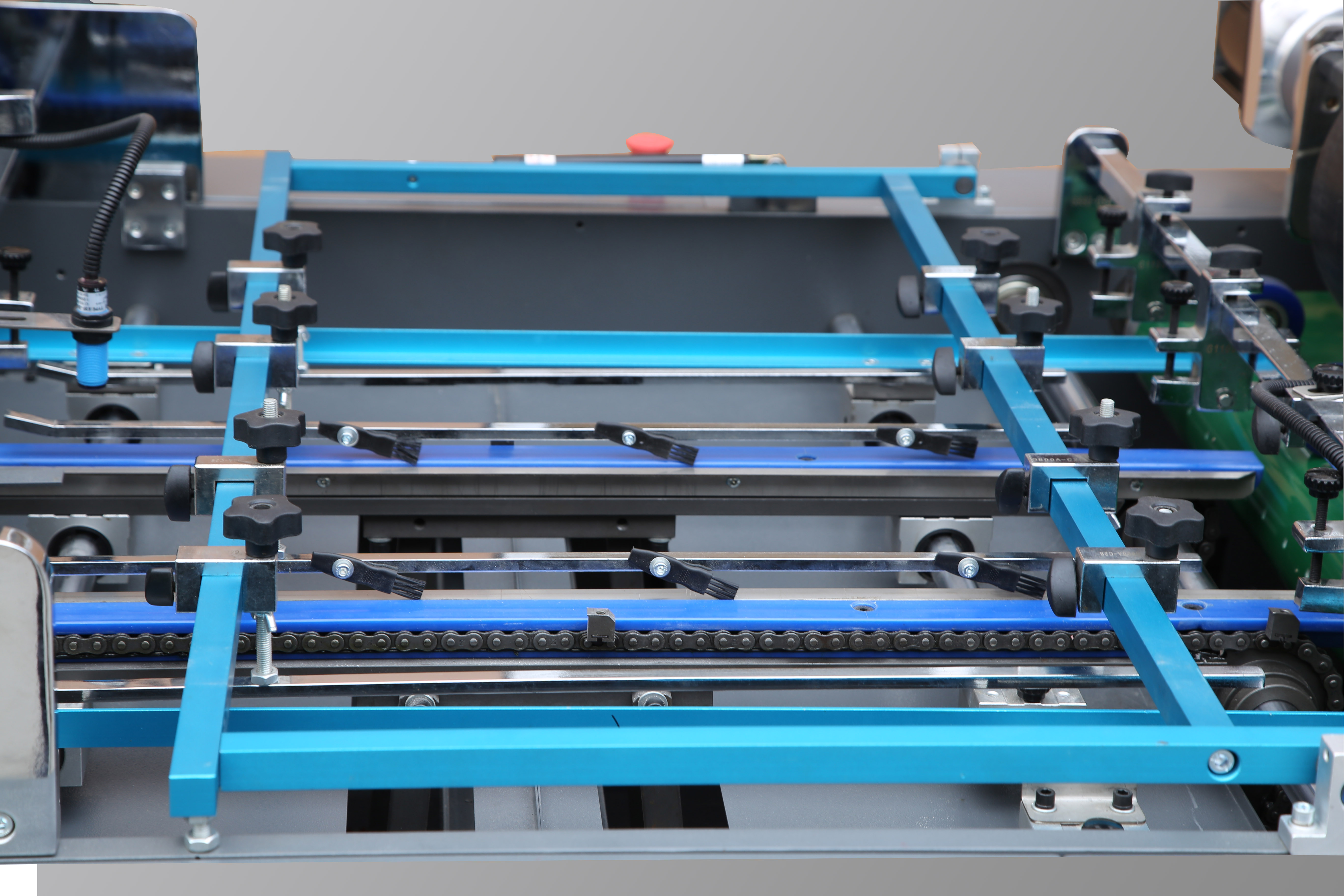

  6. Paper vacuum adsorption conveying
  7. Double/empty paper convey problem, glue part can glue automatic rise.
  8. High exactly to positioning the printed film for window patching.
  9. The film can be embossed (need to customize pattern mold)
  10. The film can be punched with round holes or special-shaped holes (Need to customize the mold)
  11. To do the window pasting with creasing with V cutting.
  12. Suitable for making tissue box(Standard)
Machine Details:
1.It can position the window film of printing automatically. To get the high exactly position of printed film. Multi function Automatic Window Patching Machine 0

2. The film can be embossed(need to customize pattern mold, the model need to added the cost if choose this function)

 Multi function Automatic Window Patching Machine 1

3.The film can be punched with round holes or special-shaped holes(Need to customize the mold, the mould need to added the cost if choose this function)

 Multi function Automatic Window Patching Machine 2
Specifications:
Model G-880S
Max.Paper Size W880xL720mm
Min.Paper Size 110X110mm
Paper Weight

Kraft Paper:150-1200g/㎡ White Cardboard:230-1200g/㎡

Corrugated Paper:≤5mm
Max.Film Size W450xL450mm
Min.Film Size W30xL65mm
Max.Film Unwinding Diameter 450mm
Film Thickness

CPE/PE:0.05-0.2mmPVC:0.02-0.2mm APET/PET:0.02-0.2mm
Film Precision ±1mm
Maximum Speed

Paper L≤330mm:30000pcs/h

Paper L＞330mm:15000pcs/h
Quantity of Servo Motor 13Sets
Machine size

L570xW170xH160cm
Power 380/415V 50/60Hz 13KW
Wooden case packing (export)

Size:L485xW170xH198cm

G.W.:2510kg

N.W.:2330kg
Machine weight 2330kg
Producible Box Sample:

Multi function Automatic Window Patching Machine 3

Multi function Automatic Window Patching Machine 4 Multi function Automatic Window Patching Machine 5

Cake box / General Box

Multi function Automatic Window Patching Machine 6 Multi function Automatic Window Patching Machine 7

Double creasing /  Three creasing (Optional)

Multi function Automatic Window Patching Machine 8 Multi function Automatic Window Patching Machine 9 Multi function Automatic Window Patching Machine 10

Horizontal creasing  / Horizontal and Vertical creasing(Optional)  / Tissue box

Workshop:
Multi function Automatic Window Patching Machine 11    Multi function Automatic Window Patching Machine 12
