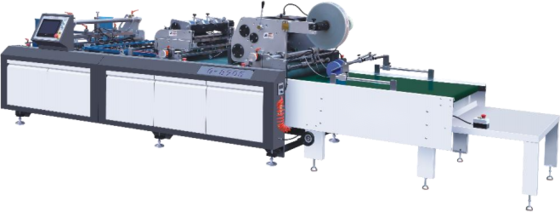

Full Servo Unit Type High Speed Window Patching Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | G890S |
| Minimum Order Quantity | 1 set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | L/C,T/T |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Keyword | High Speed | Material | Metal |
|---|---|---|---|
| Type | Window Patching | Power Source | Electric |
| Control System | Automatic | ||
| Highlight | Servo Unit Type Window Patching Machine,High Speed Window Patching Machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Major Function:

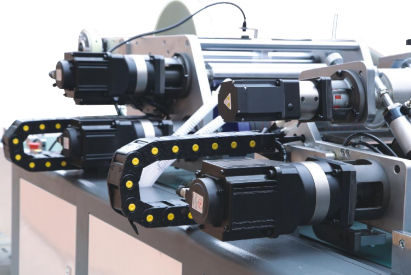

- 10 sets servo motors (standard configuration)
- One key automatic adjustment of paper input and film length position
- With batch counting of paper receiving step
- Air expansion shaft with magnetic powder tension film unwinding

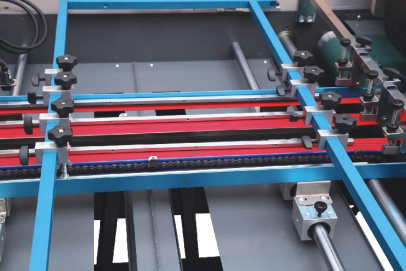

- Paper vacuum adsorption conveying
- Double sheet/empty sheet gluing rises automatically
- It can produce the cut function of the tissue box film (Optional and can be added later)
- Adapt to film with printed surface following (Optional and can be added later)
Producible Box Sample:
Cake box General Box Tissue box
Specifications:
| Model | G890S |
|---|---|
| Max.Paper Size | W860xL720mm |
| Min.Paper Size | 110X110mm |
| Paper Weight |
Kraft Paper:150-1200g/㎡ White Cardboard:230-1200g/㎡ Corrugated Paper:≤3mm |
| Max.Film Size | W460xL460mm |
| Min.Film Size | W30xL65mm |
| Max.Film Unwinding Diameter | 450mm |
| Film Thickness |
滚刀； CPE/ PE:0.05-0.2mmPVC:0.04-0.2mm APET/PET:0.03-0.2mm 横刀； CPE/ PE:0.1-0.3mmPVC:0.1-0.3mm APET/PET:0.08-0.3mm |
| Film Precision | ±1mm |
| Maximum Speed |
Paper L≤330mm:30000pcs/h Paper L＞330mm:15000pcs/h |
| Quantity of Servo Motor | 10 Sets |
| Quantity of Stepping Motor | Driving Parts: Automatic paper receiving 1 set |
| Power | 380/415V 50/60Hz 13KW |
| Overall Dimension | L570xW170xH160cm |
| Overall Weight | 2600kg |

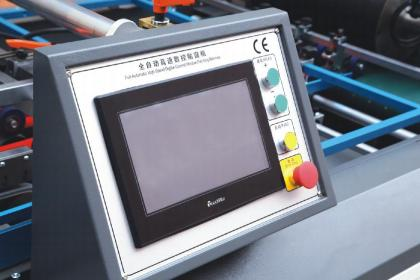

Detail Display:
