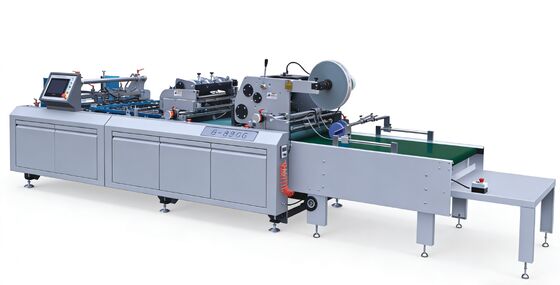

High Speed Automatic Flated Type Window Patching Mahcine

  • High Speed Automatic Flated Type Window Patching Mahcine
  • High Speed Automatic Flated Type Window Patching Mahcine
Place of Origin CHINA
Brand Name FINTEECH
Certification CE
Model Number G890S
Minimum Order Quantity 1 set
Packaging Details wooden case
Delivery Time 20-30 days
Payment Terms L/C,T/T
Supply Ability 10 sets per day
Product Details
Keyword High Speed Material Metal
Type Window Patching Power Source Electric
Control System Automatic
Highlight

Automatic Window Patching Mahcine

,

Automatic Flated Type Window Patching Mahcine
Leave a Message
Product Description
Major Function:
  1.    10 sets servo motors (standard configuration)
  2.    One key automatic adjustment of paper input and film length position
  3.    With batch counting of paper receiving step
  4.    Air expansion shaft with magnetic powder tension film unwinding
  5.    Paper vacuum adsorption conveying
  6.    Double sheet/empty sheet gluing rises automatically
  7.    It can produce the cut function of the tissue box film (Optional and can be added later)
  8.    Adapt to film with printed surface following (Optional and can be added later)
Producible Box Sample:
High Speed Automatic Flated Type Window Patching Mahcine 0
High Speed Automatic Flated Type Window Patching Mahcine 1High Speed Automatic Flated Type Window Patching Mahcine 2High Speed Automatic Flated Type Window Patching Mahcine 3
                                   Cake box                                                       General Box                                                    Tissue box
Specifications:
Model G890S
Max.Paper Size W860xL720mm
Min.Paper Size 110X110mm
Paper Weight

Kraft Paper:150-1200g/㎡

White Cardboard:230-1200g/㎡

Corrugated Paper:≤3mm
Max.Film Size W460xL460mm
Min.Film Size W30xL65mm
Max.Film Unwinding Diameter 450mm
Film Thickness

滚刀； CPE/ PE:0.05-0.2mmPVC:0.04-0.2mm APET/PET:0.03-0.2mm

横刀； CPE/ PE:0.1-0.3mmPVC:0.1-0.3mm APET/PET:0.08-0.3mm
Film Precision ±1mm
Maximum Speed

Paper L≤330mm:30000pcs/h

Paper L＞330mm:15000pcs/h
Quantity of Servo Motor 10 Sets
Quantity of Stepping Motor Driving Parts: Automatic paper receiving 1 set
Power 380/415V 50/60Hz 13KW
Overall Dimension L570xW170xH160cm
Overall Weight 2600kg
Detail Display:
High Speed Automatic Flated Type Window Patching Mahcine 4   High Speed Automatic Flated Type Window Patching Mahcine 5   High Speed Automatic Flated Type Window Patching Mahcine 6
