Automatic Die Cutting and Creasing Machine
| Place of Origin | CHINA |
|---|---|
| Brand Name | FINTEECH |
| Certification | CE |
| Model Number | FB-HT1060CE |
| Minimum Order Quantity | 1set |
| Packaging Details | wooden case |
| Delivery Time | 20-30 days |
| Payment Terms | TT/LC |
| Supply Ability | 10 sets per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Packaging Machine | Condition | New |
|---|---|---|---|
| Power Source | Electric | Exporting Countries | UK, Italy, Mexico, Turkey, Etc. |
| Other Name | Paper Die Cutter | Color | Silvery |
| Packaging Type | Case | ||
| Highlight | automatic die cutting machine with stripping,die cutting and creasing machine automatic,automatic stripping die cutting machine |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Automatic Die Cutting and Creasing Machine With Stripping
Product Specifications
| Type | Packaging Machine |
| Condition | New |
| Power Source | Electric |
| Exporting Countries | UK, Italy, Mexico, Turkey, etc. |
| Other Name | Paper Die Cutter |
| Color | Silvery |
| Packaging Type | Case |
Technical Parameters
| Model | FB-HT1060CE |
| Maximum Sheet Size | 1060*760mm |
| Minimum Sheet Size | 400*350mm |
| Maximum Cutting Size | 1060*745mm |
| Minimum Width of Double Cuts | 5mm |
| Minimum Gripper Margin | 9~17mm |
| Cutting Rule Height | 23.8mm |
| Inner Chase Size | 1080*770mm |
| Stock Range | Paper: 80-2000g/m², 0.1-2mm; Corrugated board: up to 4mm |
| Die Cutting Accuracy | ≤±0.075mm |
| Max. Die Cutting Force | 300T |
| Max. Working Speed | 9000s/h |
| Max. Feeder Pile Height | 1630mm (with wooden pallet) |
| Max. Delivery Pile Height | 1480mm (with wooden pallet) |
| Machine Dimensions | 8017*4518*2502mm (L*W*H) |
| Net Weight | 18000kg |
| Main Motor Power | 15KW |
| Total Power Required | 23KW |
| Air Requirement | Pressure: 0.6-0.7Mpa, Flow: ≥0.37m³/min |

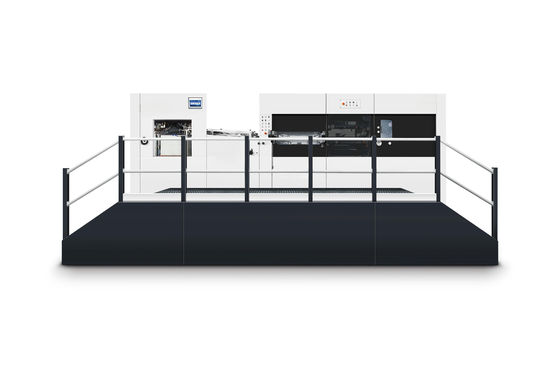

Machine Overview
Key Features

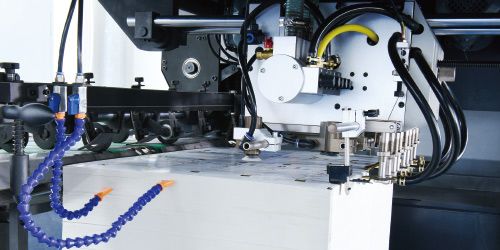

Precision Feeder System
Advanced technical platform feeding precisely and consistently handles wide range stock from 90g/m² thin paper to 1000g/m² cardboard and micro flute corrugated board.

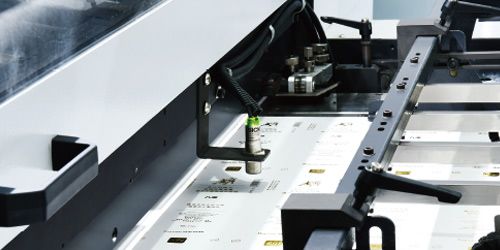

Ultrasonic Double Sheet Detector
Non-contact ultrasonic detection prevents paper scratching while ensuring reliable operation and quick setup.
Quick Mould Locking System
Center-line system with quick locking device significantly reduces make-ready time between jobs.
Precision Plate Setting
5mm hardened cutting plate or 4+1mm sandwich plate on 15mm precision synthetic supporting plate with ±0.9mm micro adjustment for quick setup.
Advanced Gripper Bar System
Unique large motion angle eccentric worm gear drive ensures extremely smooth operation.

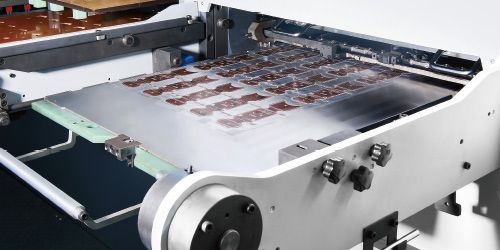

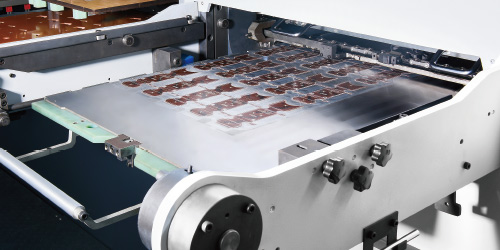

Gripper Edge Waste Removal
Integrated stripping and removing system with conveyor belt efficiently removes gripper edge waste to the drive side.

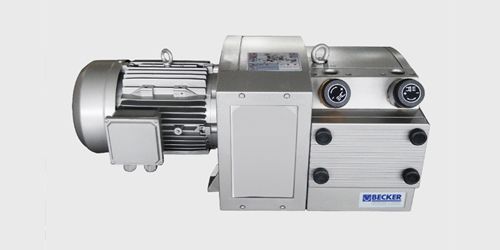

High-Quality German Vacuum Pump
Becker oil-free blower and vacuum pump ensure reliable performance.
Automatic Lubrication System
Concentrated auto lubrication ensures optimal performance of all driven components.
Non-Stop Collecting System
Automatic switching between main and auxiliary collecting devices maximizes operational efficiency.
Advanced Tooling Lockup
Quick tooling setup system enables fast job changeover and high productivity at both stripping stations.
