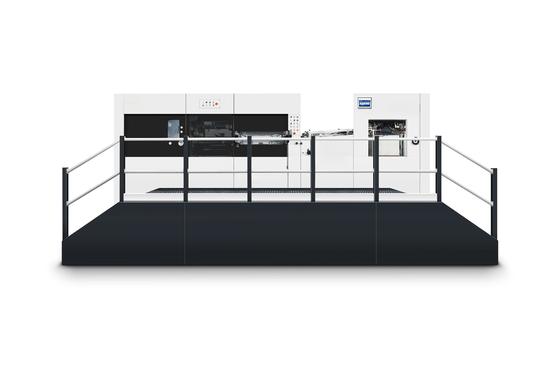

9000s/H 23KW Automatic Die Cutting Machine Double Sheet Detector Industrial Die Cutter

  • 9000s/H 23KW Automatic Die Cutting Machine Double Sheet Detector Industrial Die Cutter
Place of Origin China
Brand Name FINTEECH
Certification CE
Model Number FB-HT1060CE
Minimum Order Quantity 1set
Packaging Details wooden case
Delivery Time 20-30 days
Payment Terms TT/LC
Supply Ability 10 sets per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Packaging Machine Condition New
Power Source Electric Overall Dimensions Around 15m*4.5m*2.2m (L×W×H)
Exporting Countries UK, Italy, Mexico, Turkey, Etc. Other Name Paper Die Cutter
Color Silvery
Highlight

9000s/h Automatic Die Cutting Machine

,

23KW Industrial Die Cutter

,

Double Sheet Detector Industrial Die Cutter
Leave a Message
Product Description
Automatic Die Cutting and Creasing Machine With Stripping
Product Attributes
Type Packaging Machine
Condition New
Power Source Electric
Overall Dimensions Around 15m*4.5m*2.2m (L×W×H)
Exporting Countries UK, Italy, Mexico, Turkey, etc.
Other Name Paper Die Cutter
Color Silvery
Product Description
Feeder System
  • Advanced technical platform for precise and consistent feeding
  • Handles wide range of stock from 90g/m² thin paper to 1000g/m² cardboard
  • Compatible with micro flute corrugated board
Key Features
  • Double Sheet Detector: Ultrasonic non-contact detection prevents scratches while ensuring reliability and quick setup
  • Mould Quick Locking Device: Center-line system with quick locking reduces make-ready time
  • Plate Setting: 5mm hardened cutting plate or 4+1mm sandwich plate on 15mm precision synthetic supporting plate with ±0.9mm micro adjustment
  • Gripper Bar: Advanced design with large motion angle eccentric worm gear drive system for smooth operation
  • Waste Removal: Integrated gripper edge stripping system with conveyor belt for efficient waste removal
Technical Specifications
Model FB-HT1060CE
Maximum Sheet Size 1060×760mm
Minimum Sheet Size 400×350mm
Maximum Cutting Size 1060×745mm
Minimum Width of Double Cuts 5mm
Minimum Gripper Margin 9~17mm
Cutting Rule Height 23.8mm
Inner Chase Size 1080×770mm
Stock Range Paper: 80-2000g/m² (0.1-2mm), Corrugated board: up to 4mm
Die Cutting Accuracy ≤±0.075mm
Max. Die Cutting Force 300T
Max. Working Speed 9000s/h
Max. Feeder Pile Height 1630mm (with wooden pallet)
Max. Delivery Pile Height 1480mm (with wooden pallet)
Machine Dimensions 8017×4518×2502mm (L×W×H) (includes paper track and platform)
Net Weight 18000kg
Main Motor Power 15KW
Total Power Required 23KW
Air Requirement Pressure: 0.6-0.7Mpa, Flow: ≥0.37m³/min
